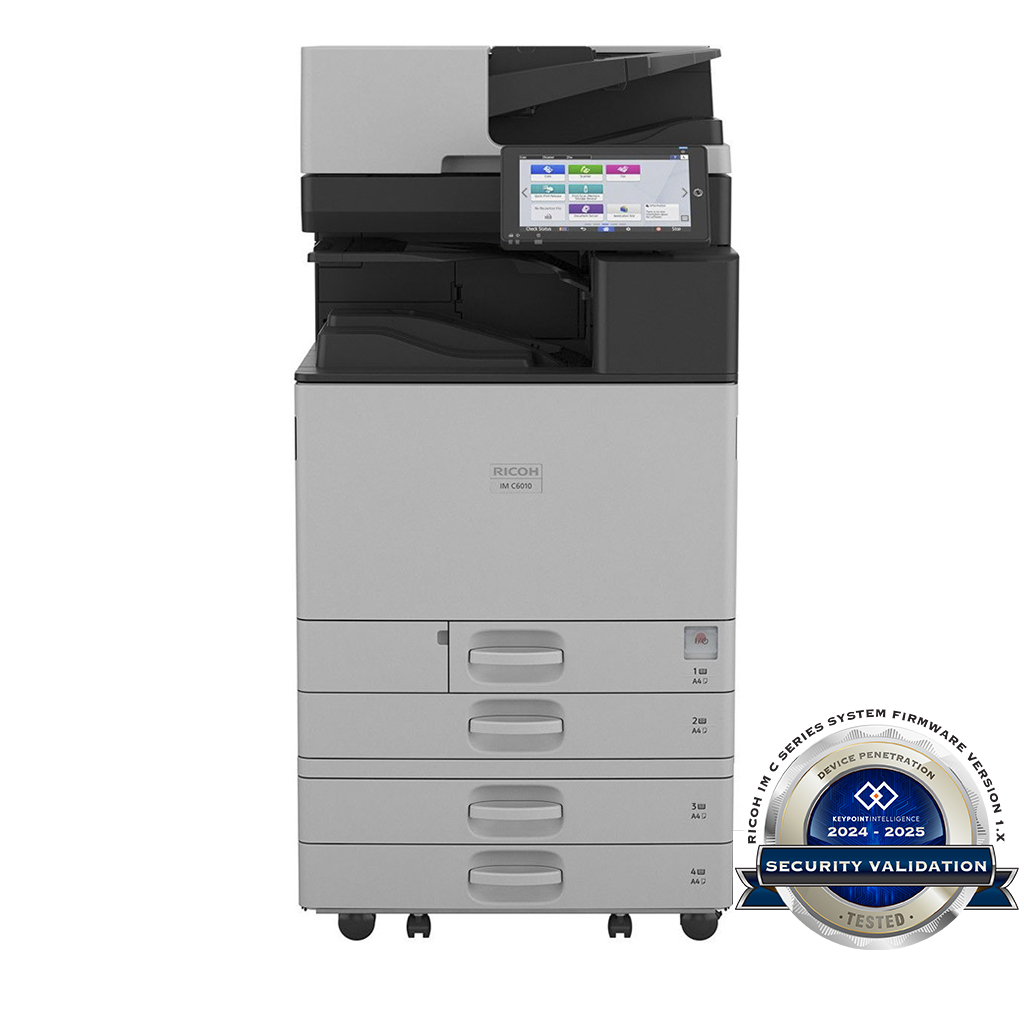

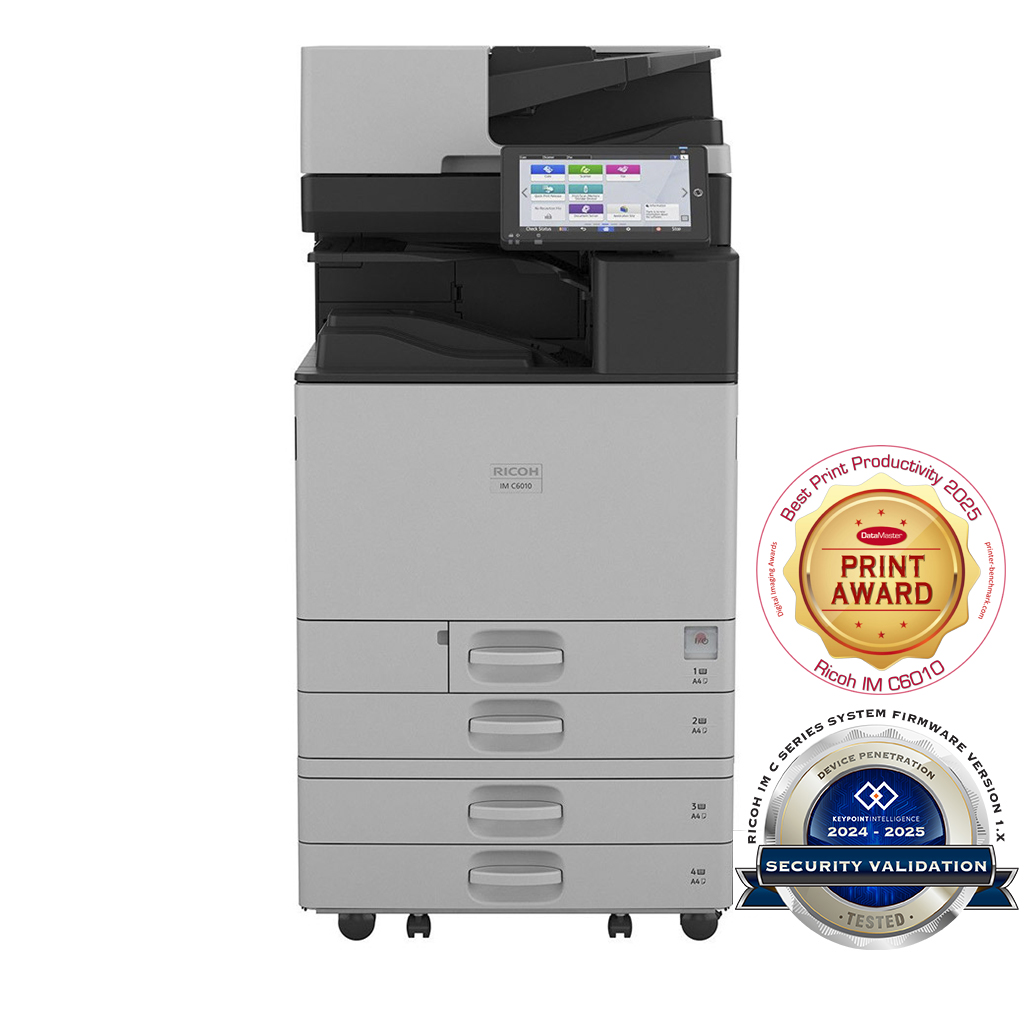

IM C6010 A3 colour multifunction printer

Copy, print, scan, optional fax
Prints up to 60 ppm
Top environmental performance
Robust security

여기에서 기기 구성

Built for the modern workplace

Optimise the potential of a digitally enabled hybrid workplace with support for the latest workflows, Plus the ability to install upgrades, new features, and security updates as soon as they become available via Ricoh Always Currrent Technology makes the IM C6010 the ideal print platform for your business now and in the future.

Digitise documents quickly

Scan two-sided documents at up to 300 images per minute (ipm) on the standard 220-sheet Single Pass Document Feeder (SPDF), sharing them instantly with Scan-to capabilities or send directly to cloud services.

Deliver professional results
Produce exceptional documents with a variety of finishing options, including a booklet finisher with 65-sheet stapling and a versatile multi-folding unit.
Enhanced energy efficiency
New low-melt toner and lower fusing temperature help to make the IM C6010 among the most energy-efficient devices available.
Reliable data protection
Mitigate the risk of data breaches with multi-factor authentication as well as the ability to download the latest security patches for added peace of mind.
Fulfilment through work
Numerous features that save time and increase efficiency let your employees derive satisfaction from a job well done.

Download PDF brochure

Specifications

기능: Copy, print, scan, optional fax
컬러: Yes
HDD: 256 GB SSD
메모리 - 표준: 8 GB—4 GB mainframe + 4 GB Smart Operation Panel
오퍼레이션 패널: 10.1" Smart Operation Panel

물리적 크기 (WxDxH)-기기 본체: 587 x 701 x 963 mm
무게 - 기기 본체: 100.8 kg

표준 용지입력 용량(매수)

1,200

최대 용지입력 용량(매수)

4,850

표준 용지출력 용량(매수)

500
250—B4 or larger

최대 용지출력 용량(매수)

3,625

용지 입력 구성 - 표준

2 x 550-sheet paper trays, 100-sheet bypass tray, 220-sheet SPDF, duplex unit

용지 출력 구성 - 표준

500-sheet face-down internal output tray

지원하는 미디어

Tray 1
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high gloss coated paper, coated paper

Tray 2
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high gloss coated paper, coated paper, envelope

Optional trays
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high-gloss coated paper, envelope, coated paper

Bypass tray
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high-gloss coated paper, envelope, coated paper, label paper

최대 용지 크기

SRA3

미디어 무게(g/m2)

52–300

인터페이스 - 표준

Mainframe
10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
USB Host Type A—2 ports
USB Type B—1 port

Smart Operation Panel
Bluetooth 5.2¹
USB Host Type A—USB Flash memory
USB Host Type A—optional 1 port for USB keyboard
¹—Cannot be used for printing

인터페이스 - 옵션

IEEE 802.11 a/b/g/n/ac Interface Unit Type M52
Device Server Option Type M52 (additional Ethernet/Gigabit Ethernet port)

네트워크 프로토콜 - 표준

TCP/IP (IPv4, IPv6)

복사 속도: 60 cpm
첫 복사 시간: 2.9 seconds—black and white
4.2 seconds—colour
복사 해상도: 100, 200, 300, 400, 600 dpi—scanning
1,200 x 1,200 dpi (maximum)—printing
확대 범위: 25%–400% in 1% steps
확대 비율: 115%, 122%, 141%, 200%, 400%
축소 비율: 93%, 87%, 82%, 71%, 61%, 50%, 25%
양면 복사: Simplex to duplex, duplex to duplex—with SPDF, book to duplex, front and back to duplex
책 복사: Booklet, magazine, layout and booklet

컬러 출력 속도

60 ppm

흑백 출력 속도

60 ppm

첫 출력 시간

2.4 seconds black and white, 3.8 seconds colour

출력 해상도

1,200 x 1,200 dpi / 4,800 x 1,200 dpi equivalent (maximum)

페이지 설명 언어(PDLs)

Standard
PCL 5c, PCL 6, PostScript 3 emulation, PDF Direct emulation

Optional
Genuine Adobe PostScript 3, PDF Direct from Adobe

프린터 드라이버

Standard
PCL 5c, PCL 6, PostScript 3 emulation

Optional
Genuine Adobe PostScript 3

양면 출력

Standard

모바일 프린팅

Yes

스캔 속도

Via SPDF
150 ppm—simplex, 200 x 200 dpi
120 ppm—simplex, 300 x 300 dpi
300 ppm—duplex, 200 x 200 dpi
220 ppm—duplex, 300 x 300 dpi

스캔 방법

Scan to USB, Scan to email, Scan to folder, Scan to URL, Scan to MSB, Scan to FTP, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

컬러 스캐닝

Standard

스캔 해상도

100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi
Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.

스캔 to 타입

Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A
Single- and multi-page high-compression PDF

스캔 to 이메일

Protocols
SMTP gateway, TCP/IP, POP, IMAP 4

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Scan to email file types
Single-page
TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Multi-page
TIFF, PDF (default), PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

스캔 to 폴더

Protocols
SMB, FTP

Resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Search for client folders
SMB—browsing directly to the designated folder
FTP—by folder name

Scan to folder file types
Single-page
TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Multi-page
TIFF, PDF (default), PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

TWAIN 스캐닝

Scan mode
Standard, Photo, OCR, Filing
Note: Optional OCR unit required for OCR scanning.

Scan resolution
100–1,200 dpi
Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.

팩스 타입

G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax

팩스 회로

PSTN, PBX

팩스 호환성

ITU-T (CCITT), G3—maximum 3 lines

팩스 모뎀 속도

2,400 bps–33.6 Kbps—G3, standard with automatic shift down

팩스 압축 방법

MH, MR, MMR, JBIG

팩스 해상도

Standard mode
200 x 100 dpi—8 x 3.85 lines/mm

Detail mode
200 x 200 dpi—8 x 7.7 lines/mm

Super Fine mode
400 x 400 dpi—8 x 15.4 lines/mm
400 x 400 dpi—16 x 15.4 lines/mm

Note: Super Fine mode is supported with the optional SAF memory.

G3 팩스 전송 속도

3 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission

팩스 SAF 메모리 용량

Standard
4 MB—approximately 320 pages

With optional SAF memory
60 MB—approximately 4,800 pages

팩스 메모리 백업

1 hour

단축번호

2,000 numbers

암호화: SSD, PDF, Secure print, WEP, WPA
Authentication password
Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
인증: 802.1x wired authentication
Administrator authentication
IEEE 802.11i security (WPA2)
IPv6
Quota setting
User authentication—Windows and LDAP via Kerberos, basic, user code
WiFi Protected Setup (WPS) support

Windows: PCL 5c, PCL 6, and PostScript 3
Windows 8.1
Windows 10
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019
Windows Server 2022
Macintosh: MacOS v10.15 or later—PostScript 3 only
Unix: PCL 5c, PostScript 3
Sun Solaris, HP-UX, SCO OpenServer, Red Hat Linux, IBM AIX
SAP: PCL 5c
R/3, S/4

표준: @Remote Embedded
Web Image Monitor
옵션: Streamline NX V3
GlobalScan NX
Enhanced Locked Print NX
Card Authentication Package
모바일 어플리케이션: RICOH Smart Device Connector

전원: 220–240 V, 50/60 Hz—Asia Pacific
110 V, 60 Hz—Taiwan
소비 전력: 1,850 W or less—maximum power, Asia Pacific
1,584 W or less—maximum power, Taiwan
763.3 W—operating power, black and white
871.2 W—operating power, colour
40.1 W—Ready Mode
0.32 W—Energy Saver Mode (Sleep Mode)
일반 전기 소비량(TEC): 0.67 kWh
예열시간: 23 seconds
복구 시간: From Energy Saver Mode
7.4 seconds
그린 라벨: The Thai Green Label Scheme
기타 환경 특징: Eco-friendly indicator, Energy Saver Timer, System Reset Timer
