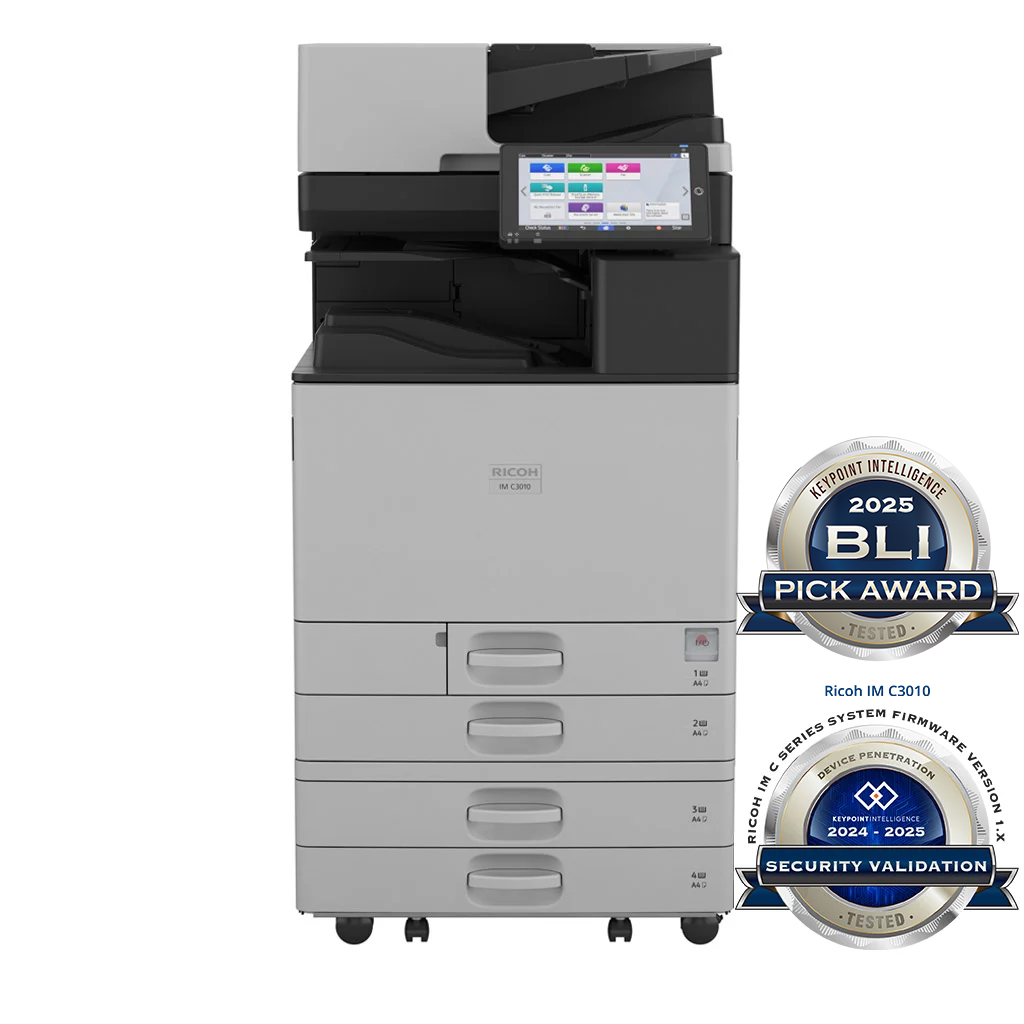

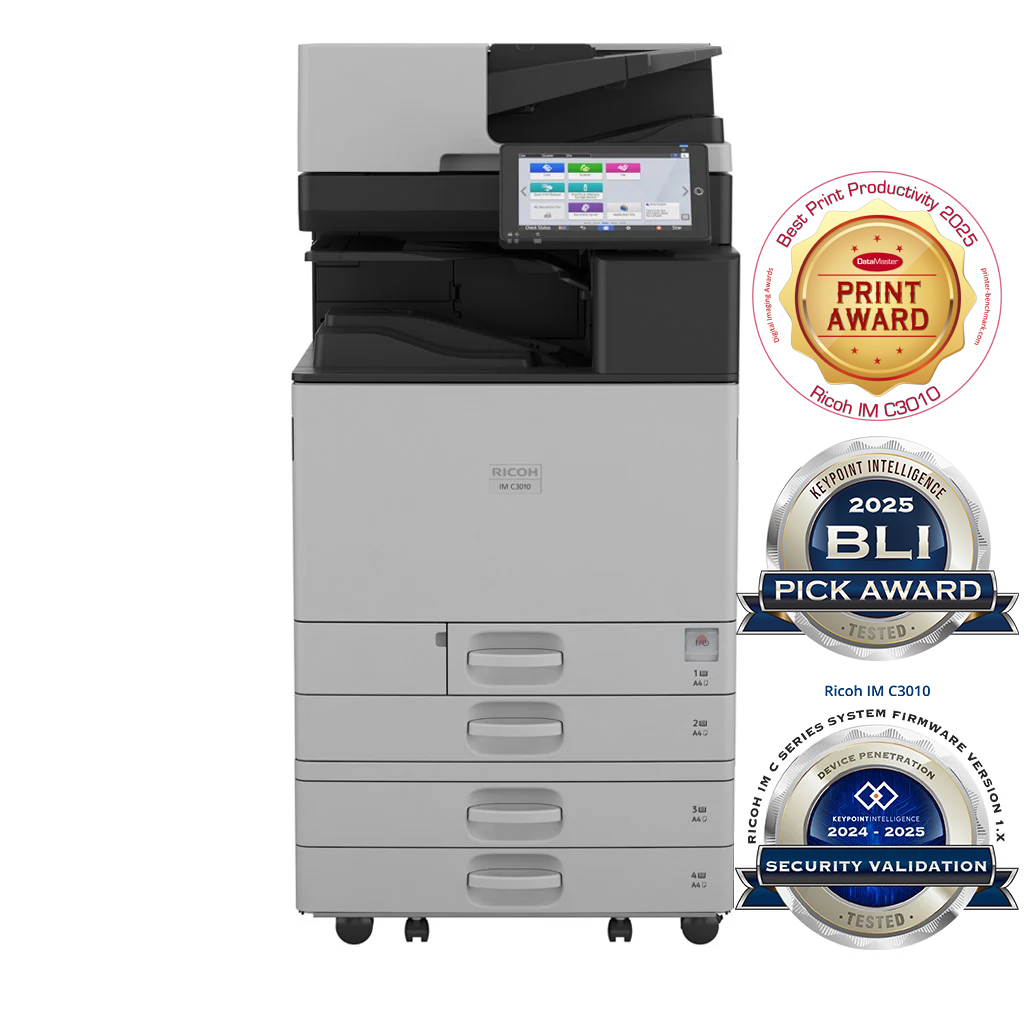

IM C3010 A3 colour multifunction printer

  • Copy, print, scan, optional fax
  • Prints up to 30 ppm
  • Top environmental performance
  • Robust security

New efficiencies in paper handling

Enjoy fast, professional results along with wider scanning possibilities. An updated Single Pass Document Feeder (SPDF) capably handles high volumes, smaller sizes, and special paper types, such as business cards and cheques.

Third generation Smart Operation Panel

Our familiar, user-friendly operation panel has been upgraded for an even more intuitive and enjoyable experience. Brightness, touch sensitivity, and position detection have all been improved for optimal access to the device’s many resources and functions.

  1. Efficient digital workflows
    Personalise and enhance the capabilities of your intelligent device with apps and workflow solutions readily available from the cloud.
  2. Smart scalability
    Tailor your device as your business develops by downloading the latest features, upgrades, and applications as you need them.
  3. Energy saving
    New low-melt toner and reduced fusing temperature help to make this one of the most energy-efficient devices in the market.
  4. Protect your information
    Improved security features protect your business critical documents and data.

Download PDF brochure


Specifications

기능
Copy, print, scan, optional fax
컬러
Yes
HDD
256 GB SSD
메모리 - 표준
8 GB—4 GB mainframe + 4 GB Smart Operation Panel
오퍼레이션 패널
10.1" Smart Operation Panel
물리적 크기 (WxDxH)-기기 본체
587 x 701 x 963 mm
무게 - 기기 본체
99.3 kg
표준 용지입력 용량(매수)
1,200
최대 용지입력 용량(매수)
4,850
표준 용지출력 용량(매수)
500
250—B4 or larger
최대 용지출력 용량(매수)
1,625
용지 입력 구성 - 표준
2 x 550-sheet paper trays, 100-sheet bypass tray, 220-sheet SPDF, duplex unit
용지 출력 구성 - 표준
500-sheet face-down internal output tray
지원하는 미디어

Tray 1
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high gloss coated paper, coated paper

Tray 2
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high gloss coated paper, coated paper, envelope

Optional trays
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high-gloss coated paper, envelope, coated paper

Bypass tray
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high-gloss coated paper, envelope, coated paper, label paper

최대 용지 크기
SRA3
미디어 무게(g/m2)
52–300
인터페이스 - 표준

Mainframe
10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
USB Host Type A—2 ports
USB Type B—1 port

Smart Operation Panel
Bluetooth 5.21
 USB Host Type A—USB Flash memory
USB Host Type A—optional 1 port for USB keyboard

1
—Cannot be used for printing

인터페이스 - 옵션

IEEE 802.11 a/b/g/n/ac Interface Unit Type M52
Device Server Option Type M52 (additional Ethernet/Gigabit Ethernet port)

네트워크 프로토콜 - 표준
TCP/IP (IPv4, IPv6)
복사 속도
30 cpm
첫 복사 시간
4.5 seconds—black and white
6.9 seconds—colour
복사 해상도

100, 200, 300, 400, 600 dpi—scanning
1,200 x 1,200 dpi (maximum)—printing

확대 범위
25%–400% in 1% steps
확대 비율
115%, 122%, 141%, 200%, 400%
축소 비율
93%, 87%, 82%, 71%, 61%, 50%, 25%
양면 복사
Simplex to duplex, duplex to duplex—with SPDF, book to duplex, front and back to duplex
책 복사
Booklet, magazine, layout and booklet
컬러 출력 속도
30 ppm
흑백 출력 속도
30 ppm
첫 출력 시간
4.0 seconds black and white, 6.6 seconds colour
출력 해상도

1,200 x 1,200 dpi / 4,800 x 1,200 dpi equivalent (maximum)

페이지 설명 언어(PDLs)

Standard
PCL 5c, PCL 6, PostScript 3 emulation, PDF Direct emulation

Optional
Genuine Adobe PostScript 3, PDF Direct from Adobe

프린터 드라이버

Standard
PCL 5c, PCL 6, PostScript 3 emulation

Optional
Genuine Adobe PostScript 3

양면 출력
Standard
모바일 프린팅
Yes
스캔 속도

Via SPDF
150 ppm—simplex, 200 x 200 dpi
120 ppm—simplex, 300 x 300 dpi
300 ppm—duplex, 200 x 200 dpi
220 ppm—duplex, 300 x 300 dpi

스캔 방법

Scan to USB, Scan to email, Scan to folder, Scan to URL, Scan to MSB, Scan to FTP, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

컬러 스캐닝
Standard
스캔 해상도
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi
Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.
스캔 to 타입

Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A
Single- and multi-page high-compression PDF

스캔 to 이메일

Protocols
SMTP gateway, TCP/IP, POP, IMAP 4

Authentication

SMTP authentication, POP before SMTP authentication

Scan resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Scan to email file types
Single-page
TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Multi-page
TIFF, PDF (default), PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

스캔 to 폴더

Protocols
SMB, FTP

Resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Search for client folders
SMB—browsing directly to the designated folder
FTP—by folder name

Scan to folder file types
Single-page
TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Multi-page
TIFF, PDF (default), PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

TWAIN 스캐닝

Scan mode
Standard, Photo, OCR, Filing
Note: Optional OCR unit required for OCR scanning.

Scan resolution
100–1,200 dpi
Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.

팩스 타입
G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
팩스 회로
PSTN, PBX
팩스 호환성
ITU-T (CCITT), G3—maximum 3 lines
팩스 모뎀 속도
2,400 bps–33.6 Kbps—G3, standard with automatic shift down
팩스 압축 방법
MH, MR, MMR, JBIG
팩스 해상도

Standard mode
200 x 100 dpi—8 x 3.85 lines/mm

Detail mode

200 x 200 dpi—8 x 7.7 lines/mm

Super Fine mode
400 x 400 dpi—8 x 15.4 lines/mm
400 x 400 dpi—16 x 15.4 lines/mm

Note: Super Fine mode is supported with the optional SAF memory.

G3 팩스 전송 속도
3 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
팩스 SAF 메모리 용량
Standard
4 MB—approximately 320 pages

With optional SAF memory

60 MB—approximately 4,800 pages
팩스 메모리 백업
1 hour
단축번호
2,000 numbers
암호화

SSD, PDF, Secure print, WEP, WPA
Authentication password
Encryption of data sent via Scan to email and Fax forwarding (S/MIME)

인증

802.1x wired authentication
Administrator authentication
IEEE 802.11i security (WPA2)
IPv6
Quota setting
User authentication—Windows and LDAP via Kerberos, basic, user code
WiFi Protected Setup (WPS) support

Windows
PCL 5c, PCL 6, and PostScript 3
Windows 8.1
Windows 10
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019
Windows Server 2022
Macintosh
MacOS v10.15 or later—PostScript 3 only
Unix
PCL 5c, PostScript 3
Sun Solaris, HP-UX, SCO OpenServer, Red Hat Linux, IBM AIX
SAP
PCL 5c
R/3, S/4
표준
@Remote Embedded
Web Image Monitor
옵션

Streamline NX V3
GlobalScan NX
Enhanced Locked Print NX
Card Authentication Package

모바일 어플리케이션
RICOH Smart Device Connector
전원
220–240 V, 50/60 Hz—Asia Pacific
110 V, 60 Hz—Taiwan
소비 전력
1,700 W or less—maximum power, Asia Pacific
1,584 W or less—maximum power, Taiwan
464.4 W—operating power, black and white
515.3 W—operating power, colour
38.5 W—Ready Mode
0.3 W—Energy Saver Mode (Sleep Mode)
일반 전기 소비량(TEC)
0.30 kWh
예열시간

24 seconds

복구 시간

From Energy Saver Mode
6.2 seconds

그린 라벨
The Thai Green Label Scheme
기타 환경 특징
Eco-friendly indicator, Energy Saver Timer, System Reset Timer
