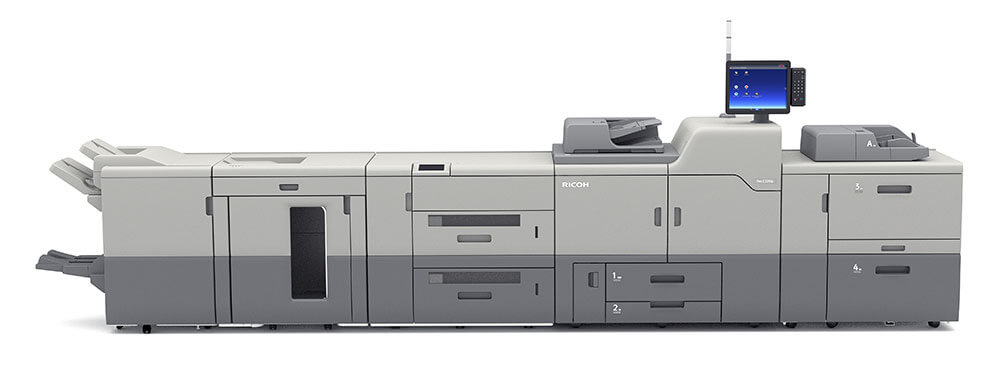

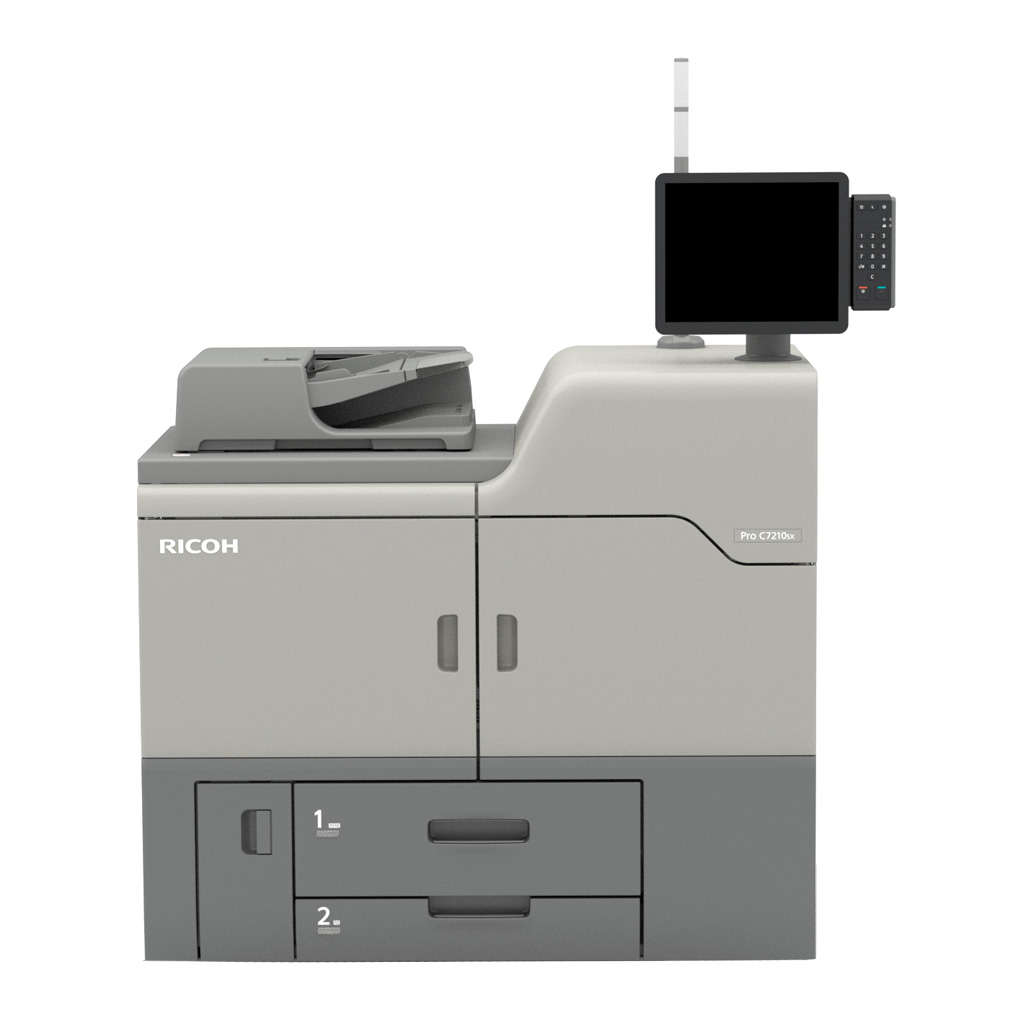

Pro C7200S Colour production printer

Copy, print, and scan
Prints up to 85 ppm
Up to 360 g/m²
Banner sheet duplex printing

Grow your business and meet tight deadlines, with affordable, high capacity colour printing

Accept more types of print jobs and meet deadlines easily. The Pro C7200S prints high resolution colour to produce a wide variety of applications.

More opportunities, less cost

Deliver beautiful output on short print runs and appease demanding customers. Print a wider range of jobs with double-sided, oversize printing up to 700 mm in length and on heavy weight stocks up to 360 gsm. The paper library makes sure everything is calibrated and ready to go. Further streamline your workload with inline finishing options, ranging from perfect binding and hole punching to multi folding and ring binding.

More paper, less downtime
Paper capacity can be increased to 16,200 sheets
Print on heavily textured stock
Amaze your customers with impressive coverage and rich appearance on deeply textured stock
Precision that delivers
Maintain precision with high definition imaging and mechanical paper registration
Do it yourself
Handle maintenance issues in house with Trained Customer Replaceable Units (TCRUs) to maximise uptime
Find what you need
Use the paper library to configure jobs for specific media and stocks
Stay in control
Choice of two EFI Fiery controllers or Ricoh TotalFlow controller with direct connectivity to Heidelberg Prinect, Kodak Prinergy or Screen Equios workflows
Scan and send
Scan colour jobs and share them straight from the device for fast review and approval

Finish it off in style

Improve turnaround times and increase your print capacity. Ricoh’s line of finishers make it easy to print more types of documents, quickly. Create professional saddle-stitched booklets with minimal effort using the booklet maker, folder and trimmers. Fold media in multiple styles to give customers more options. Collate, bind, punch, trim and add or close rings with minimal manual intervention.

Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

Copy, print, and scan
Prints up to 85 ppm
Up to 360 g/m²
Banner sheet duplex printing

Specifications

기능: Copy, print, scan
컬러: Yes
프린터 컨트롤러 - 표준: GWNX
프린터 컨트롤러 - 옵션: EFI Fiery colour controller E-46A
EFI Fiery colour controller E-86A
Ricoh TotalFlow Print Server R-62A
보관: 640 GB (320 GB x 2)
문서 서버: 640 GB (320 GB x 2) HDD capacity
CPU: 1.91 GHz
메모리 - 표준: 4 GB
오퍼레이션 패널: 17-inch touch panel

물리적 크기 (WxDxH)-기기 본체

1,320 x 910 x 1,230 mm

물리적 크기 (WxDxH)-기타

591 x 520 x 175 mm—SPDF
865 x 730 x 1,000 mm—4,000-sheet LCT RT5110
1,054 x 730 x 1,000 mm—4,400-sheet vacuum-feed LCT RT5120
330 x 730 x 1,000 mm—Bridge unit BU5010
690 x 561 x 210 mm—500-sheet multi-bypass tray BY5020
495 x 530 x 175 mm—1,000-sheet A3 tray Type TK5010
1,290 x 730 x 1,000 mm—730-sheet vacuum-feed banner sheet tray Type S9
1,090 x 561 x 210 mm—500-sheet multi-bypass banner sheet tray Type S9, when attached to multi-bypass tray BY5020
1,688 x 1,286 x 950 mm—BDT VX 370-1280 banner sheet feeder
730 x 1,220 x 1,090 mm—Plockmatic LCT3500
330 x 730 x 1,010 mm—Buffer pass unit Type S9
55 x 485 x 190 mm—Decurler unit DU5060
996 x 730 x 1,126 mm—3,000-sheet finisher SR5050, with all extendable trays closed
996 x 730 x 1,126 mm—2,500-sheet booklet finisher SR5060, with all extendable trays closed
1,115 x 591 x 555 mm—Booklet trimmer TR5040
1,113 x 730 x 1,490 mm—4,500-sheet finisher SR5110
1,113 x 730 x 1,490 mm—3,500-sheet booklet finisher SR5120
1,115 x 591 x 555 mm—Trimmer unit TR5050
740 x 730 x 1,290 mm—Cover interposer CI5040
870 x 730 x 1,010 mm—Ring Binder RB5020
540 x 730 x 1,290 mm—2-tray cover interposer CI5030
470 x 730 x 1,000 mm—Multi-folding unit FD5020
1,090 x 791 x 1,387 mm—Perfect Binder GB5010
900 x 730 x 1,010 mm—High-capacity stacker SK5040
1,200 x 700 x 1,100 mm—Plockmatic high-capacity interposer HCI3500
900 x 680 x 1,060 mm—Plockmatic multi-purpose stacker MPS1260
1,420 x 700 x 970 mm—Plockmatic PBM 5035S/PBM 5035, including stacker
265 x 253 x 136 mm—RPIP interface box Type S3

무게 - 기기 본체

580 kg or less

무게 - 기타

185 kg or less—4,000-sheet LCT RT5110
230 kg or less—4,400-sheet vacuum-feed LCT RT5120
40 kg or less—Bridge unit BU5010
20 kg or less—500-sheet multi-bypass tray BY5020
10 kg or less—1,000-sheet A3 tray Type TK5010
7 kg or less—730-sheet vacuum-feed banner sheet tray Type S9
9.5 kg or less—Multi-bypass banner sheet tray Type S9
443 kg—BDT VX 370-1280 banner sheet feeder
250 kg—Plockmatic LCT3500
90 kg or less—Buffer pass unit Type S9
5 kg or less—Decurler unit DU5060
112 kg or less—3,000-sheet finisher SR5050
112 kg or less—2,500-sheet booklet finisher SR5060
75 kg or less—Booklet trimmer TR5040
135 kg or less—4,500-sheet finisher SR5110
160 kg or less—3,500-sheet booklet finisher SR5120
75 kg—Trimmer unit TR5050
50 kg—Cover interposer CI5040
140 kg or less—Ring Binder RB5020
45 kg or less—2-tray cover interposer CI5030
92 kg or less—Multi-folding unit FD5020
350 kg or less—Perfect Binder GB5010
120 kg or less—High-capacity stacker SK5040
15 kg or less—High-capacity stacker SK5040 roll-away cart
250 kg—Plockmatic high-capacity interposer HCI3500
65 kg—Plockmatic multi-purpose stacker MPS1260 lift unit
5 kg—Plockmatic multi-purpose stacker MPS1260 docking unit
0.55 kg or less—RPIP interface box Type S3

최소 필요 공간

1,000 mm—front
1,000 mm—left
1,000 mm—right
800 mm—rear

Note: PM parts maintenance tasks require additional rear clearance.

월간 최대 사용량: 240,000 prints
기기 수명: 14,400,000 prints or 5 years, whichever comes first
듀티 사이클: 650,000 prints per month
컬러 비율: 80%

소모품 용량

45,000 sheets per 1,482 g bottle of black toner
45,000 sheets per 1,482 g bottle of cyan toner
45,000 sheets per 1,482 g bottle of magenta toner
45,000 sheets per 1,482 g bottle of yellow toner

Note: All CMYK toner yields are measured with the A4/8.75% coverage chart, based on 50 pages per job and 80% duplex printing.

136,000 sheets per waste toner bottle

Note: Based on A4/70% colour rate, 35% colour coverage, 6% black and white.

5,000 staples per Type M cartridge for finishers SR5050 and SR5060—normal staple
5,000 staples per Type U cartridge for finisher SR5060—saddle stitch staple
5,000 staples per Type M staple cartridge refill for finishers SR5050 and SR5060—normal staple
5,000 staples per Type T staple cartridge refill for finisher SR5060—saddle stitch staple

75 sets per ring cartridge

표준 용지입력 용량(매수)

2,500

최대 용지입력 용량(매수)

16,200

최대 용지출력 용량(매수)

13,000

용지 입력 구성 - 표준

1,000-sheet x 2 paper input tray, 500-sheet paper input tray, duplex unit, 220-sheet SPDF

용지 입력 구성 - 옵션

1,000-sheet A3 tray Type TK5010, 4,000-sheet LCT RT5110, 500-sheet multi-bypass tray BY5020, Multi-bypass attachment kit for vacuum feed LCT Type S9, 4,400-sheet vacuum-feed LCT RT5120, 500-sheet multi-bypass banner sheet tray Type S9, 730-sheet vacuum-feed banner sheet tray Type S9, Bridge unit BU5010, BDT VX 370-1280 banner sheet feeder, Plockmatic LCT3500

용지 출력 구성 - 옵션

Buffer pass unit Type S9, Decurler unit DU5060, Perfect Binder GB5010, 2-tray cover interposer CI5030, Multi-folding unit FD5020, Ring Binder RB5020, High-capacity stacker SK5040, 2,500-sheet booklet finisher SR5060, Booklet trimmer TR5040, 3,000-sheet finisher SR5050, Punch units PU5020, 3,500-sheet booklet finisher SR5120, 4,500-sheet finisher SR5110, Punch unit PU5030, Trimmer unit TR5050 for booklet finisher SR5120, Cover interposer CI5040

용지 출력 구성 - 제3사

Plockmatic HCI3500 high-capacity interposer, Plockmatic PBM 350 booklet maker, Plockmatic PBM 500 booklet maker, Plockmatic MPS1260 multi-purpose stacker, Plockmatic PBM 5035S long sheet stitcher, Plockmatic PBM 5035 long sheet stapler, Plockmatic SBT Square Back Trimmer, GBC StreamPunch Ultra

지원하는 미디어

Standard paper input tray 1
Plain paper, recycled paper, pre-printed, letterhead, pre-punched

Standard paper input tray 2
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock¹

LCT RT5110 trays 3 and 5
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock², glossy/matte paper, OHP transparency, translucent paper, envelope, textured paper

LCT RT5110 tray 4
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock², glossy/matte paper, OHP transparency, translucent paper, envelope, label paper, textured paper

Vacuum-feed LCT RT5120
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock², glossy/matte paper, OHP transparency, translucent paper, envelope, textured paper

Multi-bypass tray BY5020
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock², translucent paper

Plockmatic LCT3500
Plain paper, index paper, coated paper, recycled paper

¹—Tab sheet holder option is needed when printing tab stock
²—Tab fence is needed when printing tab stock

최대 용지 크기

13" x 19.2"

미디어 무게(g/m2)

52.3–360

인터페이스 - 표준: 10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
SD slot x 3—1 on the controller board, 2 on the operation panel
USB 2.0 Type A x 6—2 at rear of machine, 4 on the operation panel
USB 2.0 Type Mini-B x 1—on the operation panel
네트워크 프로토콜 - 표준: TCP/IP (IPv4, IPv6)
MIB 지원: Standard
MIB-II (RFC1213)
Host Resources (RFC1514)
Printer MIB (RFC1759)
Printer Port Monitor MIB

Private
Ricoh original MIB

복사 속도

85 cpm—A4 LEF

Multi-copy speed—A4 LEF
85 cpm—from memory
95 cpm—from SPDF

첫 복사 시간

11 seconds—A4 LEF plain paper, face-up from Tray 1 in single-sided mode

복사 해상도

1,200 dpi, 2-bit

원본 타입

Book, sheet, object

원본 크기

A3—maximum
A5—minimum

복사 크기

A5–A3
Custom size—up to 323 x 480 mm

풀 이미지 복사

93% and centring

수량 선택

1–9,999 sets

확대 범위

25–400%, in 1% steps

확대 비율

115%, 122%, 141%, 200%, 400%

축소 비율

93%, 82%, 75%, 71%, 65%, 50%, 25%

이미지 농도 조정

Automatic selection, manual selection—7 levels

이미지 농도 조정

Automatic and manual; manual—9 levels

복사 모드

Text, text/photo, photo, map, pale, generation, inkjet, highlight pen

색상 모드

Options
Automatic colour selection, full colour, black and white, single colour, two colour

Single colour
12 colours and black—default
15 colours—user selection

Two colour
Black and other colour, red and black

용지 선택

Tray 1, tray 2, 4,000-sheet LCT RT5110, 4,400-sheet vacuum-feed LCT RT5120, 500-sheet multi-bypass tray BY5020

자동 용지 선택(APS)

Supported

양면 복사

Single-sided to duplex, duplex to duplex, book to duplex, front and back to duplex

책 복사

Booklet, magazine

시리즈 복사

Book to single-sided, book to duplex, front and back to duplex

결합 복사

2, 4, or 8 pages into 1 single-sided sheet
4, 8, or 16 pages into 1 duplex sheet

인터럽트 복사

Standard

용지 라이브러리

Supported

사용자 코드

1,000 user codes, 8 digits in each code

표지 용지

Front and back covers—copy or blank; copy single-sided or duplex

슬립 시트

Copy or blank

챕터

Up to 100 chapters

용지 지정

Selectable from 3 trays—up to 100 positions

스태플링

Supported, 4 positions—with finisher

펀치

Supported—with finisher

전자적 분류

Supported—with finisher

여백/지우기 조정

Margin—in 1 mm steps
Erase inside, erase outside, erase centre and border

색상 조율

Colour balance adjustment, colour balance program, colour registration

이미지 조정

Sharp/soft, contrast, background density, under colour removal, automatic colour selection sensitivity, text-photo separation sensitivity, colour erase sensitivity, automatic colour calibration (ACC)

스탬프

Background numbering—not supported
Page numbering—6 styles
Date stamp—5 styles
User stamp—5 styles
Preset stamp—8 styles
Stamp text—Supported

이이미 순환

Supported

컬러 출력 속도

85 ppm

흑백 출력 속도

85 ppm

출력 프로세스

4-drum dry electrostatic transfer system with internal transfer belt

츨력 테크놀로지

Vertical-cavity surface-emitting laser (VCSEL)

퓨징

Oil-less belt-fusing method

토너 현상

PXP-EQ chemical toner, polymerisation

출력 해상도

2,400 x 4,800 dpi—VCSEL

페이지 설명 언어(PDLs)

Standard
PCL 5c, PCL 6 (XL), PDF

Optional
Adobe PostScript 3

프린터 드라이버

Standard
PCL 5c, PCL 6, RPCS

Optional
PostScript 3

프린터 드라이버 해상도

PCL 5c
300 x 300 dpi—1-bit
600 x 600 dpi—1-, 2-, and 4-bit; default

Note: Supports font cache for high speed printing.

PCL 6
600 x 600 dpi—1-, 2-, and 4-bit; default
1,200 x 1,200 dpi—1- and 2-bit

Note: Supports font cache for high speed printing.

PostScript 3
600 x 600 dpi—1-, 2-, and 4-bit
1,200 x 1,200 dpi—1- and 2-bit

Note: TrueType and Type 1 fonts supported.

RPCS
600 x 600 dpi—1-, 2-, and 4-bit
1,200 x 1,200 dpi—1- and 2-bit

Note: Supports font cache for high speed printing.

양면 출력

Standard

봉투 출력

Supported—with optional LCT RT5110 and vacuum-feed LCT RT5120

폰트

PCL 5c, PCL 6
136 Roman fonts, 13 International fonts

PDF
136 Roman fonts

최대 출력 가능 영역

320 x 480 mm
323 x 1,252 mm—with optional banner sheet tray

Fiery 컨트롤러

Fiery colour controller E-46A or Fiery colour controller E-86A—optional

Printer drivers
Fiery E-46A
PCL 5c, PCL 6, PostScript 3—CPSI v3020 and APPE v4.4

Fiery E-86A
PostScript 3—CPSI v3020 and APPE v4.4

Printer driver fonts
136 fonts and 2MM—PostScript 3
80 fonts—PCL 5c and PCL 6

Fiery menu via operation panel
Supported

Print resolution
1,200 dpi, 2-bit
600 dpi with PCL 5c

Supported file formats
PS, PDF, EPS, TIFF, PDF/VT, PPML, VPS, PCL—Fiery E-46A
PS, PDF, EPS, TIFF, PDF/VT, PPML, VPS—Fiery E-86A

Variable Data Printing (VDP)
PPML v3, Fiery Free Form v1 and v2.1, PDF/VT-1 and PDF/VT-2

전체흐름

TotalFlow Print Server R-62A—optional

스캔 속도

A4 LEF, 200 dpi
Single-sided
120 ipm

Duplex
220 ipm

스캔 방법

Scan to email, Scan to folders

스캔 모드

Black and white
Text, text/line art, text/photo, photo, greyscale; default text/line art

Colour
Text/photo, photo, Automatic Colour Selection

스캔 해상도

100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

스캔 영역

297 x 432 mm

원본 크기

A5 SEF–A3 SEF, A5–A4 LEF, B5 SEF–B4 SEF, B5 LEF

사용자 정의 크기

140 x 140 mm—minimum
297 x 432 mm—maximum

파일 타입

TIFF, JPEG, PDF, high-compression PDF

이미지 농도 조정

Automatic selection, manual selection—7 levels

스캔 to 이메일

Protocols
SMTP gateway, TCP/IP

Authentication
SMTP, POP before SMTP, S/MIME

Scan resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

File type
Single page
TIFF, JPEG, PDF, high compression PDF

Multi-page
TIFF, PDF, high compression PDF

스캔 to 이메일 - 기타 기능

Scan to email size
128–102,400 KB—with restriction; default 2,048 KB
725 MB—without restriction

Maximum email addresses per send
500—from HDD
100—direct input
100—via LDAP

Email addresses stored in HDD
Maximum email addresses—2,000
Maximum registered group addresses—500 addresses, 100 addresses per group
Maintain email addresses—via operation panel, SmartDeviceMonitor for Admin, Web Image Monitor
Search method—by name, email address

Body message
Manual input—maximum 80 characters
User pre-registered body message—5 messages, 80 characters over 5 lines
User pre-registered title—maximum 20 characters per name of pre‑registered body message
Preset message—This e-mail includes attached file sent from <device name>.

Input subject
Manual input—maximum 128 characters

LDAP search
Supported

Attention
To, Cc, Bcc

Program registration
Up to 25 programs

Divide and send
Divide by page or size; default by size

Resend
Supported

스캔 to 폴더

Protocols
SMB, FTP

Security
Client folder logon, transmission encryption of logon name and password

Resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

File type
Single page
TIFF, JPEG, PDF, high compression PDF

Multi-page
TIFF, PDF, high compression PDF

스캔 to 폴더 - 기타 기능

Client folder addresses stored in HDD
Maximum registered folder addresses—2,000
Maintain folder addresses—via operation panel, Web Image Monitor

Maximum client folders/PCs per send
50 folders

Maximum group addresses
100 destinations—50 to folder, 100 to email

Maximum file size
Default
2,000 MB in 1 document

When combined with Scan to email
128–102,400 KB; default 2,048 KB—with restriction
725 MB—without restriction

Note: File size depends on the selected Scan to email file size restriction.

Input subject
Not supported

Program user settings
Up to 25 programs

Divide and send
By page or size; default by size

Resend
Yes, No; default Yes

TWAIN 스캐닝 - 기타 기능

Image adjustment
Brightness, Contrast, Threshold, Gamma Adjustment, Half‑tone Pattern

Endorse
Date, Page number, Text

Stamp originals
Not supported

Supported operating systems
Windows 7, 8.1, 10, Server 2008/2008 R2,Server 2012/2012 R2, Server 2016

TWAIN 스캐닝

Scan mode
Standard, Photo, OCR, Filing

Scan resolution
100–1,200 dpi

기타 스캔 기능

SADF/batch mode, Mixed size mode, Thin paper mode not supported

암호화: Encryption—print and scan data
Encryption of data sent via Scan to email (S/MIME)
인증: Simple network security setting
DHCP option 60 and 77
기타 보안 기능: Security features are provided by the Ricoh GWNX controller. The Fiery E-46A and Fiery E-86A controller security is based on the EFI Fiery security policy compliant with the EFI Fiery System FS350 Pro.

표준: @Remote Embedded
Web Image Monitor
Device SDK
옵션: Device Manager NX
InfoPrint Manager
TotalFlow BatchBuilder
TotalFlow Prep
TotalFlow Production Manager
TotalFlow Supervisor
Ricoh ProcessDirector
FusionPro VDP Creator
FusionPro Expression
OL PlanetPress Connect
PrintShop Mail
EFI Digital StoreFront
EFI Graphic Arts Premium Edition
EFI Fiery Central
EFI JobFlow
EFI Impose & Compose

전원: 220–240 V, 16 A, 50/60 Hz
소비 전력: 5,000 W or less—maximum power
4 W or less—Energy Saver Mode (Sleep Mode)
소비 전력 - 옵션: 1,000 W or less—4,400-sheet vacuum feed LCT RT5120
150 W or less—3,000-sheet finisher SR5050
150 W or less—2,500-sheet booklet finisher SR5060
250 W or less, maximum—Booklet trimmer TR5040
75 W or less, average—Booklet trimmer TR5040
150 W or less—4,500-sheet finisher SR5110
150 W or less—3,500-sheet booklet finisher SR5120
250 W or less, maximum—Trimmer unit TR5050
75 W or less, average—Trimmer unit TR5050
95 W excluding peak consumption—Cover interposer CI5040
400 W or less—Ring Binder RB5020
623 W or less—Perfect Binder GB5010
30 W or less—Decurler unit DU5060
240 W or less—Multi-purpose folding unit FD5020
131 W or less—High-capacity stacker SK5040
200 W or less—Buffer pass unit Type S9
예열시간: 300 seconds or less—mainframe
380 seconds or less—Perfect Binder GB5010
소음 수준: Mainframe
73 dB—standby
81 dB—operating

Full configuration
73 dB—standby
83 dB—operating
배출 레벨: 4.0 mg/h or less—dust
4.0 mg/h or less—ozone
1.8 mg/h or less—styrene
2.0 mg/h or less—formaldehyde
환경 민감 물질 저감: RoHS
100% lead-free solder used in PCBs—lead
0%—PVC
100% chrome-free steel plates—hexavalent chromium
0%—cadmium
0%—PBB/PBDE
에너지 절약 표준: Energy Star v2.0—with GWNX, Ricoh TotalFlow Print Server, and EFI Fiery controllers
안전 표준: EN60950-1
IEC60950-1
CNS14336-1
전자기 호환성(EMC) 표준: EN55032 Class A
EN61000-3-2, EN61000-3-3
EN55024
EN301489-1, EN301489-3, EN301489-17
EN62311
EN50364
CNS13438 Class A
플라스틱 성분 식별: All plastic components that weigh more than 25 g are identified in accordance with ISO 11469 standards.
레이저 표준: EN60825-1
IEC60825-1
무선 LAN 표준: EN300328
EN300330
Radio Certificate (NCC)

News & Events

Keep you up to date with Ricoh

30-Day FREE Trial for Ricoh Smart Backup Service!

Events
