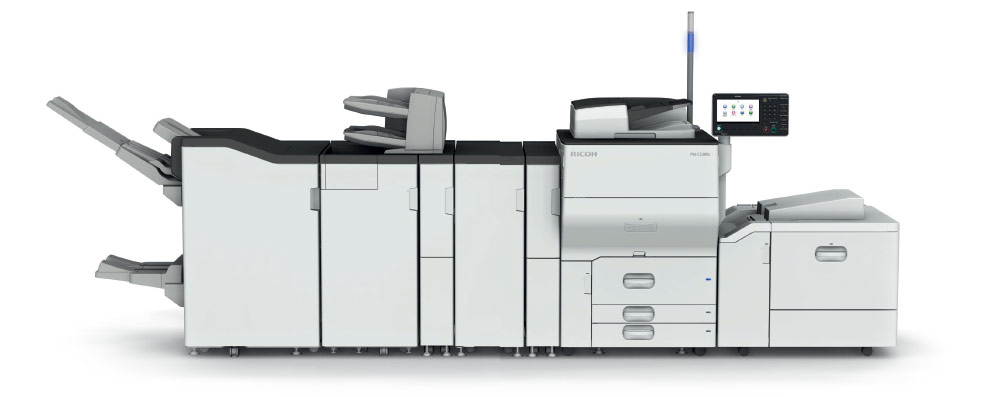

Pro C5210S Colour production printer

Prints up to 80 ppm
Up to 360 g/m²
8,250-sheet max input

Stay ahead of the competition, with short run colour printing that’s beautiful and affordable

It’s small but powerful – delivering high quality, high-volume output in a space saving production printer. The Pro C5210s is the cost effective device for printing vibrant documents, ideal for creative departments, internal print rooms and commercial printers.

Light production that’s affordable

It’s now easier to print it yourself, from brochures to business cards, flyers to banners. Instilled with Ricoh innovation to deliver richer, denser colours and breathtaking print results. Feed heavier and textured stocks without sacrificing quality.

Surprisingly compact
High volume, high-quality output with a space-saving footprint
Abundant paper capacity
Increase paper capacity to 8,250 sheets for less reloading
Choice of controller
Use the embedded Ricoh controller or opt for an EFI Fiery controller
Find what you need
Use the Paper Library to configure jobs for specific media and stocks
Scan and send
Scan colour jobs and share them straight from the device for fast review and approval

Download PDF brochure

Finish it off in style

Improve turnaround times and increase your print capacity. Ricoh’s line of finishers make it easy to print more types of documents, quickly. Create professional saddle-stitched booklets with minimal effort using the booklet maker, folder and trimmers. Fold media in multiple styles to give customers more options. Collate, bind, punch, trim and add or close rings with minimal manual intervention.

Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

Prints up to 80 ppm
Up to 360 g/m²
8,250-sheet max input

Specifications

기능: Copy, print, scan
컬러: Yes
프린터 컨트롤러 - 표준: GWNX
프린터 컨트롤러 - 옵션: Fiery colour controller E-24B
Fiery colour controller E-44B
HDD: 640 GB (320 GB x 2)
240 GB space available on each
문서 서버: 170 GB HDD capacity—shared with other applications
3,000 stored documents maximum
3,000 pages per document
15,000 pages of all documents
1–180 days storage, or no limit
CPU: 1.91 GHz
메모리 - 표준: 4 GB

물리적 크기 (WxDxH)-기기 본체: 799 x 880 x 1,648 mm
물리적 크기 (WxDxH)-기타: 680 x 565 x 180 mm—SPDF (standard)
352 x 540 x 625 mm—4,400-sheet LCT RT4020 (A4)
869 x 730 x 658 mm—2,200-sheet LCT RT4050 (A3)
520 x 514 x 207 mm—1,000-sheet A3 tray Type M26 for tandem tray
350 x 220 x 360 mm—50-sheet multi-bypass banner sheet tray Type S6
516 x 718 x 135 mm—250-sheet banner sheet guide tray Type S6 for A3 LCT
250 x 500 x 170 mm—500-sheet copy tray Type M26
657 x 730 x 980 mm—3,000-sheet finisher SR4120 (65-sheet stapler)
657 x 730 x 980 mm—2,000-sheet booklet finisher SR4130 (65-sheet stapler)
996 x 730 x 1,126 mm—3,000-sheet finisher SR5070 (100-sheet stapler), excluding projections and with all extendable trays closed
996 x 730 x 1,126 mm—2,500-sheet booklet finisher SR5080 (100-sheet stapler), excluding projections and with all extendable trays closed
500 x 600 x 600 mm—Cover interposer CI4040
540 x 730 x 1,270 mm—2-tray cover interposer CI4020
540 x 600 x 660 mm—9-bin mailbox CS4010
330 x 980 x 725 mm—Buffer pass unit Type S6
470 x 980 x 730 mm—Multi-folding unit FD4000
170 x 990 x 730 mm—Decurler unit DU5020
124.3 x 362.5 x 294.6 mm—Fiery E-24B controller
212 x 483 x 489 mm—Fiery E-44B controller
무게 - 기기 본체: 262 kg or less
무게 - 기타: 14 kg or less—SPDF (standard)
20 kg or less—4,400-sheet LCT RT4020 (A4)
82 kg or less—2,200-sheet LCT RT4050 (A3)
11 kg or less—1,000-sheet A3 tray Type M26 for tandem tray
1.1 kg or less—50-sheet multi-bypass banner sheet tray Type S6
1.98 kg or less—250-sheet banner sheet guide tray Type S6 for A3 LCT
2.2 kg or less—500-sheet copy tray Type M26
38 kg or less—3,000-sheet finisher SR4120 (65-sheet stapler)
53 kg or less—2,000-sheet booklet finisher SR4130 (65-sheet stapler)
56 kg or less—2,000-sheet booklet finisher SR4130 (65-sheet stapler) with punch unit
112 kg or less—3,000-sheet finisher SR5070 (100-sheet stapler)
112 kg or less—2,500-sheet booklet finisher SR5080 (100-sheet stapler)
12 kg or less—Cover interposer CI4040
45 kg or less—2-tray cover interposer CI4020
15 kg or less—9-bin mailbox CS4010
30 kg or less—Buffer pass unit Type S6
92 kg or less—Multi-folding unit FD4000
30 kg or less—Decurler unit DU5020
5.5 kg—Fiery E-24B controller
19.5 kg—Fiery E-44B controller

월간 평균 사용량: 30,000 prints
월간 평균 일람표: 20,000–100,000 prints (recommended)
월간 최대 사용량: 150,000 prints
기기 수명: 9,000,000 prints or 5 years, whichever comes first
듀티 사이클: 300,000 prints per month
컬러 비율: 60%

소모품 용량

33,000 copies per 1,020 g bottle—black
24,000 copies per 1,020 g bottle—cyan, yellow
24,000 copies per 1,099 g bottle—magenta

94,000 sheets per 1,000 g waste toner bottle

Note: All consumable yields are measured with the A4/8.75% coverage chart, based on 20 pages per job and 80% duplex.

5,000 staples per Type M cartridge for finisher SR5070/SR5080—normal staple
5,000 staples per Type V cartridge for finisher SR4120/SR4130—normal staple
2,000 staples per Type W cartridge for finisher SR4130—saddle stitch staple
5,000 staples per Type U cartridge for finisher SR5080—saddle stitch staple

5 cartridges per Type M refill for finisher SR5070/SR5080—normal staple
3 cartridges per Type V refill for finisher SR4120/SR4130—normal staple
4 cartridges per Type W refill for finisher SR4130—saddle stitch staple
2 cartridges per Type T refill for finisher SR5080—saddle stitch staple

표준 용지입력 용량(매수)

3,850

최대 용지입력 용량(매수)

8,250

표준 용지출력 용량(매수)

Not available

최대 용지출력 용량(매수)

3,250

용지 입력 구성 - 표준

2,500-sheet tandem input tray, 2 x 550-sheet paper input trays, 250-sheet bypass tray, 100-sheet SPDF, duplex unit

용지 입력 구성 - 옵션

4,400-sheet LCT RT4020 (A4), B4 tray Type M2 for LCT RT4020 (A4), 2,200-sheet LCT RT4050 (A3), A3 tray Type M26 for tandem tray, Multi-bypass banner sheet tray Type S6, Banner sheet guide tray Type S6 for A3 LCT

용지 출력 구성 - 표준

Not available

용지 출력 구성 - 옵션

Copy tray Type M26, Finishers SR4120/SR5070, Booklet finishers SR4130/SR5080, SR4000/SR5000 series banner sheet output tray, Cover interposer CI4040/CI4020, 9-bin mailbox CS4010, Cooling fan Type M26, Output jogger Type M25, Buffer pass unit Type S6, Multi-folding unit FD4000, Decurler unit DU5020

용지 출력 구성 - 제3사

Plockmatic PBM 350/PBM 500, GBC StreamPunch Ultra

지원하는 미디어

Standard paper input tray 1, A3 tray Type M26, LCT RT4020 (A4), Cover interposer CI4020, Cover interposer CI4040
Plain paper, recycled paper, coloured paper, letterhead, pre‑printed paper, pre‑punched paper

Standard paper input trays 2 and 3
Plain paper, recycled paper, coloured paper, letterhead, pre‑printed paper, pre‑punched paper, tab stock, envelopes

Note: The optional Tab sheet holder is required to feed tab sheets from trays 2 and 3.

Bypass tray, LCT RT4050 (A3)
Plain paper, recycled paper, coloured paper, letterhead, pre-printed paper, pre-punched paper, tab stock, label, glossy/matte coated paper, textured, metallic, synthetic media, envelopes, OHP, transparencies, clear file

Note: Some supported paper types can be fed but quality is not guaranteed.

최대 용지 크기

13" x 19.2"

미디어 무게(g/m2)

52.3–360

무제한 용지 공급

Supported

인터페이스 - 표준

10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB 2.0 Type A—2 rear, 1 on the operation panel
USB 2.0 Type B
SD slot—on the operation panel

Note: Gigabit Ethernet is available as standard, but it needs to be selected by the user.

인터페이스 - 옵션

IEEE 1284/ECP
IEEE 802.11a/b/g/n (Wireless LAN)

네트워크 프로토콜 - 표준

TCP/IP (IPv4, IPv6)

MIB 지원

Standard
MIB-II (RFC1213)
Host Resources MIB (RFC1514)
Printer MIB (RFC1759)
Printer Port Monitor MIB

Private
Ricoh original MIB

복사 속도

80 cpm—A4 LEF

복사 해상도

600 x 600 dpi—4 bit

원본 크기

From SPDF
B6–A3 SEF—single-sided
1,260 mm for banner page
B5–A3 SEF—duplex

수량 선택

1–9,999

복사 예약

8 jobs

작업 사전설정

8 jobs

작업 프로그램

25 programs

확대 범위

25%–400%, in 1% steps

확대 비율

115%, 122%, 141%, 200%, 400%

축소 비율

93%, 87%, 82%, 71%, 61%, 50%, 25%

이미지 농도 조정

Automatic selection, manual selection—7 levels

이미지 농도 조정

Automatic or manual selection

복사 모드

Auto text and photo separation (default), photo—printed, glossy, copied
Text, Map, Generation, Highlight pen, Inkjet

색상 모드

Options
Black and white, single colour, two colour, full colour, Automatic Colour Selection; default black and white

Single colour
12 colours x 4 density—single colour preset; default red
15 colours x 4 density—user selection

Two colour
Black and other colour, red and black

용지 선택

Auto Paper Selection (APS)—default
1st tray, 2nd tray, 3rd tray, bypass tray—standard
A4 LCT RT4020, A3 LCT RT4030—optional

양면 복사

Single-sided to duplex, duplex to duplex, book to duplex, front and back cover to duplex, duplex to single-sided

책 복사

Booklet, magazine, layout and booklet

시리즈 복사

Book to single-sided, duplex to single-sided

결합 복사

2, 4, or 8 pages into 1 single-sided sheet
1, 2, or 4 duplex pages into 1 single-sided sheet
4, 8, or 16 pages into 1 duplex sheet
2, 4, or 8 duplex pages into 1 duplex sheet

인터럽트 복사

Supported

자동 트레이 변경

Supported; default off

용지 라이브러리

Supported

복사 방지 패턴

Supported

베이츠 넘버링

9 digits without zero suppression—zero suppression and the number of digits must be set in SP Mode

사용자 코드

1,000 user codes, 8 digits in each code

표지 용지

Front and back covers—copy or blank; default copy

슬립 시트

Supported—user can choose to copy or not copy to slip sheet

챕터

Supported—up to 100 chapters

스태플링

Supported—with finisher

전자적 적재

Supported—with finisher

전자적 분류

Rotate sort—supported
Shift sort—supported without finisher
Without shift sort—supported without finisher

여백/지우기 조정

Centring—supported
Margin and scan position—0–30 mm in 1 mm steps
Creep—0–99 mm in 1 mm steps
Erase centre and border—2–99 mm in 1 mm steps

이미지 조정

Sharpen/soften—7 levels
Contrast—9 levels
Background density—9 levels
Under Colour Removal (UCR)—9 levels
Text and photo separation sensitivity—9 levels
Colour erase sensitivity—5 levels

이미지 생성

Repeat, double copy, mirror, positive/negative, erase inside—5 parts, erase outside—1 part

색상 생성

Colour conversion—supported, maximum 4 colours selectable from 12 preset, black, or 15 user colours
Colour erase—supported
Colour overlay—supported

스탬프

User stamp—4 stamps
Date stamp—5 styles
Page numbering—6 styles
Preset stamp—8 stamps

이이미 순환

Supported

기타 복사 기능

Automatic Colour Calibration, Auto start, Colour balance adjustment, Colour balance program, Non-standard paper size finishing support, Sample copy, Unauthorised copy prevention

컬러 출력 속도

80 ppm—A4 LEF

흑백 출력 속도

80 ppm—A4 LEF

출력 프로세스

4-drum dry electrostatic transfer system with internal transfer belt

츨력 테크놀로지

Vertical-cavity surface-emitting laser (VCSEL)

퓨징

Oil-less belt-fusing method

토너 현상

PxP-EQ toner
Polymerisation

출력 해상도

1,200 x 4,800 dpi

페이지 설명 언어(PDLs)

Standard
PCL 5c, PCL 6, PDF

Optional
Adobe PostScript 3, IPDS

프린터 드라이버 해상도

PCL 5c
300 x 300 dpi¹—1-bit, black and white
600 x 600 dpi—1-, 2-, and 4-bit

PCL 6, PostScript 3
600 x 600 dpi—1‑, 2‑, and 4‑bit
1,200 x 1,200 dpi—1‑ and 2‑bit

XPS
600 x 600 dpi—1‑, 2‑, and 4‑bit
1,200 x 1,200 dpi—1‑bit

IPDS¹
300 x 300 dpi, 600 x 600 dpi—1‑bit

¹—Supports black and white printing only

양면 출력

Standard

호스트 출력

Host Print Transform (HPT), Genuine Intelligent Printer Data Stream (IPDS)—optional

봉투 출력

Supported—standard input trays 2 and 3 paper, bypass tray, LCT RT4050 (A3)

폰트

PCL
45 scalable fonts, 13 international fonts

PostScript 3
136 Roman

IPDS
108 Roman

Note: The international fonts include Cyrillic (Russian), Greek, Hebrew, and Arabic.

USB/SD에서 인쇄

Supported—GWNX only

최대 출력 가능 영역

323 x 480 mm

Note: Configurable in SP Mode up to 1,260 mm in feeding direction.

Fiery 컨트롤러

Fiery colour controller E-24B or Fiery colour controller E-44B—optional

Printer drivers—standard
PCL 5c, PCL 6, PostScript 3

Resolution
PCL 5c
600 x 600 dpi—1-bit

PCL 6, PostScript 3
1,200 x 1,200 dpi—2-bit

Fonts
PCL
80

PostScript 3
138

Fiery menu via operation panel
Supported

2-character controller panel
Supported

Supported file formats
PDF, TIFF, JPEG, EPS

Print from Media
Supported using the USB/SD slot at the front of the Fiery colour controllers

Note: Print from Media replaces the Print from USB/SD feature available with GWNX.

Variable data printing (VDP)
Fiery E-24B controller
Fiery FreeForm v1 and 2.1

Fiery E-44B controller
PPML v3
Fiery FreeForm v1 and 2.1
PDF/VT-1 and PDF/VT-2

Note: Creo VPS is available from EFI but not supported by Ricoh.

스캔 속도

A4 LEF
Single-sided
120 ipm—200 x 200 dpi, 300 x 300 dpi, 1-bit

Duplex
220 ipm—200 x 200 dpi, 300 x 300 dpi, 4-bit

스캔 방법

Scan to USB/SD, Scan to email, Scan to folders (SMB, FTP), Scan to PDF/A, Scan to searchable PDF

Note: Optional OCR unit is required to support Scan to searchable PDF.

컬러 스캐닝

Standard

스캔 모드

Black and white
Text, text/line art, text/photo, photo, greyscale

Colour
Text/photo, glossy photo, Automatic Colour Selection

스캐닝 프로세스

Flatbed with moving 3-line Charged Coupled Device (CCD) array image scanning

스캔 해상도

100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

자동 크기 감지

Platen glass
A5 SEF–A3 SEF, B5 SEF–B4 SEF

Note: SP Mode adjustment is required for A5 SEF.

SPDF
A5 SEF–A3 SEF, B5 SEF–B4 SEF

Note: Some supported paper sizes need to be configured in SP Mode.

스캔 영역

297 mm—main scan
432 mm—sub-scan

sRGB 지원

Supported

스캐너 압축 방법

Black and white
1-bit—JBIG2 (PDF), JPEG (greyscale), MH, MR, MMR

Colour
JPEG

원본 크기

A3

이미지 농도 조정

Automatic selection, manual selection—7 levels

유니버설 전송

Simultaneous transmission of scan jobs

책자에서 스캔 분할

Supported

스캔 to 타입

Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A
Single- and multi-page high compression PDF

스캔 to 타입 지원

Single- and multi-page TIFF
Black and white 1-bit—MH, MR, MMR—compression on
Black and white 1-bit, black and white greyscale, full colour—compression off

Single-page JPEG
Black and white greyscale, full colour—compression on

Single- and multi-page PDF, PDF/A
Black and white 1-bit—MH, MR, MMR, JBIG2
Black and white greyscale JPEG, full colour JPEG—compression on
Black and white 1-bit, black and white greyscale, full colour—compression off

Single- and multi-page high compression PDF
Black and white greyscale, full colour—JPEG, JPEG 2000—compression on

스캔 to 이메일

Protocols
SMTP gateway, TCP/IP

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

File type
Single page
TIFF, JPEG, PDF, PDF-A, high compression PDF

Multi-page
TIFF, PDF, PDF-A, high compression PDF

스캔 to 이메일 - 기타 기능

Scan to email size
128–102,400 KB—with restriction
725 MB—without restriction

Maximum email addresses per send
500—from HDD
100—direct input
100—via LDAP

Email addresses stored in HDD
Maximum email addresses—2,000
Maximum registered group addresses—100 groups, 500 addresses per group
Maintain email addresses—via operation panel, Web Image Monitor
Search method—by name, email address

Body message
Manual input—maximum 80 characters over 5 lines
User pre-registered—maximum 20 characters per name of pre-registered body message
Preset message—This e-mail includes attached file sent from <device name>.

Input subject
Manual input—maximum 128 characters
User pre-registered—22 subjects—maximum 20 characters per name

LDAP search
Supported

Input file name
Supported

Simultaneous transmission
Maximum 550 destinations

Attention
To, Cc, Bcc

Program registration
Up to 25 programs

Divide and send
Divide by page or size; default by size

Note: If the sent file is larger than the email size restriction, it will be divided into multiple sends. The size restrictions of the email recipient may also impact the send.

Resend
Yes, No; default Yes

스캔 to 폴더

Protocols
SMB, FTP

Security
Client folder logon, transmission encryption of logon name and password

Resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Search for client folders
SMB—browsing directly to the designated folder
FTP—by folder name

스캔 to 폴더 - 기타 기능

Client folder addresses stored in HDD
Maximum registered folder addresses—2,000
Maintain folder addresses—via operation panel, Web Image Monitor

Destination folder address input via operation panel
Supported

Homefolder over LDAP
Supported

Maximum client folders/PCs per send
50 folders

Simultaneous transmission
550 destinations maximum

Maximum group addresses
500 destinations from a total of 50 folders

Maximum file size
Default
2,000 MB

When combined with Scan to email
128–102,400 KB; default 2,048 KB—with restriction
725 MB—without restriction

Note: File size depends on the selected Scan to email file size restriction.

Input file name
Supported

Program user settings
Up to 25 programs

Resend
Yes, No; default Yes

TWAIN 스캐닝 - 기타 기능

Image adjustment

Brightness, Contrast, Threshold, Gamma Adjustment, Half‑tone Pattern

Endorse
Supported

Stamp originals
Date, Page number, Text

Supported operating systems
Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2

Note: TWAIN scanning operates in 32-bit compatibility mode on 64-bit operating systems

TWAIN 스캐닝

Scan mode
Standard, Photo, OCR, Filing

Scan resolution
Black and white, greyscale, full colour
100–1,200 dpi

Note: Maximum scan resolution is dependent on the size of originals.

Fiery 스캔

Scan resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Scan speed—A4, 200 dpi
50 ipm

Scan area
297 x 432 mm

Original size
A5–A3, B5–B4

Custom paper size
297 x 432 mm

File format
TIFF, JPEG, PDF

Scan type
Black and white
Text/Line Art, Text, Text/Photo, Photo—default Text/Line Art

Colour
Text/Photo, Glossy photo

Side
Single, Top/top, Top/bottom—default single

Orientation
Portrait, landscape; default portrait

Destination
Hold queue, Mailbox, Email, FTP, Internet fax, SMB; default Hold queue

Fiery 스캔 to 이메일

Registered email addresses in address book
1,000

Maximum email addresses per send
Address book
24,000 KB—for total size of To and Cc recipients

LDAP
24,000 KB—for total size of To and Cc recipients

Email to scan mode
Attachment
Attachment/URL—when a URL is specified, the email will be sent with the URL linked to the HDD of the Fiery server where the scanned data is stored

Format
TIFF, JPEG, PDF

Fiery 스캔 to 폴더

Protocols
SMB, FTP

FTP server
Server name or IP address, directory, and the port number can be configured

Timeout
30 seconds—configurable 0–999 seconds

Authentication
User name, password can be configured

Proxy server setup
FTP server configuration is available

SMB setup
Network password and domain name can be configured

기타 스캔 기능

Batch scan, Distributed Scan Management (DSM), Drop out colour send, Encrypted PDF transmission, Image rotation, Generic scan driver for TWAIN, Mixed size mode, PDF digital signature, Preview before transmission, SADF/batch mode, WSD scanner, Reduce/enlarge scan

비인가 복사 보호: Copy and print
데이터 덮어쓰기 보안 시스템(DOSS) - 표준: Yes
데이터 덮어쓰기 보안 시스템(DOSS) - 옵션: Data Overwrite Security (DOS) unit Type M19—available for customers who require their devices to comply with ISO 15408 Common Criteria certification
암호화: HDD, PDF, Secure print encryption
Address book, authentication password, Locked print password encryption
Encryption of data sent via Scan to email (S/MIME)
인증: 802.1x wired authentication
Administrator authentication
IEEE 802.11i security (WPA2)
IPv6
Network user authentication
Quota setting
User authentication—Windows and LDAP via Kerberos, basic, user code
Wi-Fi Protected Setup (WPS) support
SP Mode password change
DHCP Option 60 and 77
기타 보안 기능: IP filtering—access control
IPsec communication
Network protocol on/off
SNMPv3 support
SMTP over SSL communication
Secure Sockets Layer (SSL)
Transport Layer Security (TLS)
Mandatory Hold print
Mandatory security information print
Password protected document server mailbox
PDF digital signature
Secure PDFs can be printed directly from USB/SD by logging on and entering the password on the alphanumeric keypad
Secure print

Windows: Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Citrix 지원: Presentation Server 4.5
XenApp 5.0
Macintosh: OS X Native v10.2 or later—PostScript 3 only
Unix: Sun Solaris
HP-UX
Red Hat Linux
SCO Open Server
IBM AIX
SAP: Environment—R/3
IBM: AS/400, iSeries—OS/400
기타 지원되는 환경: Fiery system requirements

Windows operating systems
These Windows versions (with latest service packs) are supported for printer drivers and Fiery applications:
Windows Vista—32- and 64-bit
Windows 7—32- and 64-bit
Windows Server 2008—32- and 64-bit
Windows Server 2008 R2—64-bit
Windows Server 2012—64-bit
Windows Server 2012 R2—64-bit
Windows 8—32- and 64-bit
Windows 8.1—32- and 64-bit
Windows 10—32- and 64-bit

Macintosh operating systems
These Mac OS versions are supported for printer drivers and Fiery applications:
Mac OS v10.6.x, 10.7.x, v10.8.x, v10.9.x, v10.10.x

HDD—for printing and utilities except Command WorkStation
Windows—1 GB free space available (2 GB recommended)
Mac OS X—500 MB free space available (1 GB recommended)

Memory (RAM)—for printing and utilities except Command WorkStation
Windows—500 MB (2 GB recommended)
Mac OS X—500 MB (1 GB recommended)

Networking protocols
Windows—TCP/IP
Mac OS X—TCP/IP, EtherTalk, Bonjour

WebTools
Java-enabled Web browser:
Windows—Internet Explorer 8 or later, Firefox, Chrome
Mac OS—Safari v5.0 or later, Firefox, Chrome

Note: Due to frequent updates to Java and Microsoft Internet Explorer, support cannot be guaranteed for all versions, use the versions specified for best results. On Mac OS, some versions of Firefox may not allow you to enter passwords into Configure. If this occurs, use Safari instead.

Command WorkStation
Windows
1.0 GHz or greater Pentium 4 processor

Mac OS
Macintosh G5, 1.6 GHz or greater
1 GB RAM
3 GB HDD available for application installation
A monitor that supports 16-bit colour at a minimum resolution of 1,024 x 768 pixels
TCP/IP networking protocol installed

SeeQuence (Impose and Compose) on Command WorkStation
In addition to requirements for Command WorkStation:
Licence activation for every client workstation
Acrobat/PitStop software

표준

Device management and monitoring
@Remote
Device Manager NX
Device Software Manager
Web Image Monitor

Workflow solutions
TotalFlow Prep

Software development
Device SDK

전원: 220–240 V, 10–12 A, 50–60 Hz
소비 전력: 2,400 W—maximum power
소비 전력 - 옵션: 50 W or less—4,400-sheet side LCT RT4020 (A4)
85 W or less—2,200-sheet LCT RT4050 (A3)
67 W or less—3,000-sheet finisher SR4120 (65-sheet stapler)
67 W or less—2,000-sheet booklet finisher SR4130 (65-sheet stapler)
150 W or less—3,000-sheet finisher SR5070 (100-sheet stapler), excluding peak consumption
150 W or less—2,000-sheet booklet finisher SR5080 (100-sheet stapler), excluding peak consumption
43 W or less—Cover interposer CI4040
50 W or less—2-tray cover interposer CI4020
240 W or less—Multi-folding unit FD4000
200 W or less—Buffer pass unit Type S6
30 W or less—Decurler unit DU5020
180 W—Fiery E-24B controller
350 W—Fiery E-44B controller
예열시간: 120 seconds or less
소음 수준: Mainframe
57 dB (A)—standby
71.4 dB (A)—operating

Full system
75.4 dB (A)—operating
배출 레벨: 4 mg/h—dust
1.25 mg/h—formaldehyde
1.5 mg/h—ozone, black and white
3 mg/h—ozone, colour
1 mg/h—styrene, black and white
1.8 mg/h—styrene, colour
환경 민감 물질 저감: 100% lead-free solder used in PCBs—lead
100% chrome-free steel plates—hexavalent chromium
0%—cadmium
0%—PVC
0%—PBB/PBDE
에너지 절약 표준: Energy Star v1.2—with GWNX and EFI Fiery controllers
그린 라벨: Blue Angel Mark (BAM)
안전 표준: EN60950-1
IEC60950-1
CNS14336
GB4943.1
전자기 호환성(EMC) 표준: EN55022 Class A
EN55024
EN55011
EN61000-3-2, EN61000-3-3
EN301489-1
AS/NZS CISPR22, CISPR11
CNS13438
GB9254
GB17625.1
플라스틱 성분 식별: All plastic components that weigh more than 25 g are identified in accordance with ISO 11469 standards.
레이저 표준: EN60825-1

News & Events

Keep you up to date with Ricoh

News

09 8

On-demand webinars

17 12

30-Day FREE Trial for Ricoh Smart Backup Service!

Events
