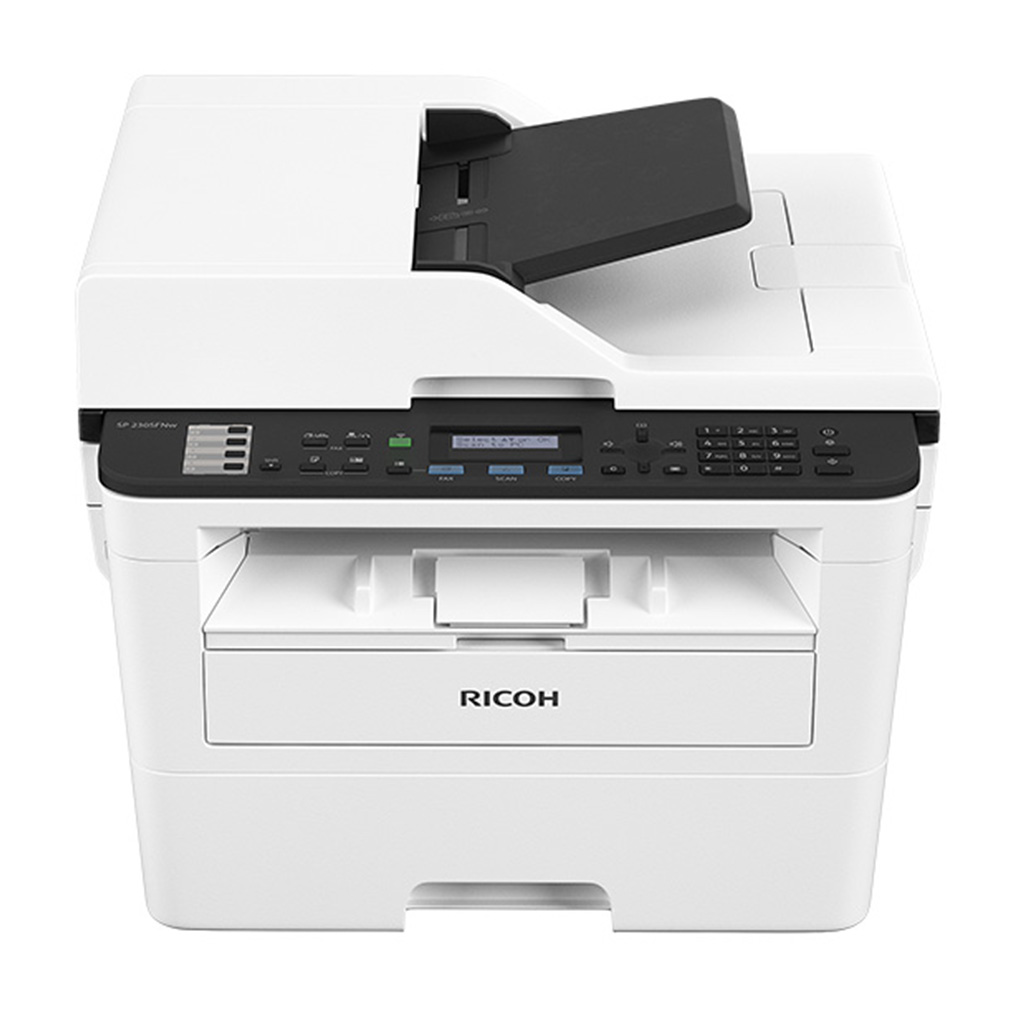

SP 230SFNw A4 black and white MFP

Copy, print, scan, and fax
Prints up to 30 ppm
Mobile printing
Quiet operation

Buy Now

A compact workhorse for the busy workplace

The SP 230SFNw is a compact 4-in-1 solution, created to make your work life easier. With fast 30ppm print speed, automatic 2-sided printing and colour scanning as standard, all managed through a simple interface, it’s a low maintenance printer that delivers fast results. Featuring a separate drum and high yield toner, the SP 230SFNw reduces upkeep spend – offering lower cost per page for added economy. Built with both wired and wireless connectivity, faxing, colour scanning, printing and copying capabilities, you can get the documents you need instantly, in high quality.

Compact and Robust
Compact in size and provide quiet operation, leading to greater efficiency and user productivity especially in smaller office environments
Excellent productivity
High-quality 1,200 x 1,200 dpi resolution
Easy to use
Easy mobile printing via Wi-Fi Direct, Mopria^®, and AirPrint^® support
Economical and eco-friendly
Low Typical Electricity Consumption (TEC) and Energy Star v2.0 certified

Download PDF brochure

Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

Copy, print, scan, and fax
Prints up to 30 ppm
Mobile printing
Quiet operation

Specifications

Functions: Copy, print, scan, fax
Colour: No
Memory - standard: 256 MB
Operation panel: 2-line LCD

Physical dimensions (WxDxH)—mainframe: 410 x 399 x 319 mm
Weight—mainframe: 11.8 kg or less

Standard input capacity (sheets): 251
Maximum input capacity (sheets): 251
Standard output capacity (sheets): 120
Maximum output capacity (sheets): 120
Paper input configuration - standard: 250-sheet paper tray, 1-sheet bypass tray, 50-sheet ADF
Paper output configuration - standard: 120-sheet face-down output tray
Supported media: Thin paper, plain paper, thick paper, thicker paper, recycled, bond paper, label, envelope
Maximum paper size: A4
Media weight (g/m2): 60–230

Interfaces - standard: USB 2.0
10Base-T/100Base-Tx (Ethernet)
IEEE 802.11b/g/n (Wireless LAN)
Network protocols - standard: TCP/IP, IPv4

Copy speed

A4 SEF, single document, multiple copies
30 cpm

First copy time

Platen glass
10 seconds or less

ADF
11 seconds or less

Copy resolution

1,200 x 1,200 dpi—platen glass
600 x 600 dpi—ADF

Zoom range

25%–400% in 1% steps

Enlargement ratios

104%, 141%, 200%,

Reduction ratios

97%, 94%, 91%, 85%, 83%, 78%,70%, 50%

Duplex copy

Yes

ID card copy

Supported

Print speed black and white: 30 ppm—single-sided
7.5 ppm—duplex
First print time: 8.5 seconds or less—from Ready Mode, 17.5 seconds or less—from Sleep Mode
Print resolution: 600 x 600 dpi—default, 300 x 300 dpi, 1,200 x 1,200 dpi, 2,400 x 600 dpi
Printer drivers: GDI
Duplex printing: Yes
Mobile printing: Yes

Scan speed

Black and white, A4, 200 dpi, 300 dpi
22.5 ipm
36 mm/second—600 x 600 dpi

Colour, A4, 200 dpi, 300 dpi
7.5 ipm

Scan methods

Scan to folders, Scan to searchable PDF, TWAIN scanning

Colour scanning

Supported

Scan resolution

100 dpi, 200 dpi—default, 300 dpi, 600 dpi

Scan to file types

Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF
Single- and multi-page high compression PDF
Single-and multi-page PDF/A

Scan to folder

Security
Secure PDF

Resolution
100 dpi, 150 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

TWAIN scanning

Scan mode
Auto, text, photo, receipt

Scan speed—A4, 200 dpi, 300 dpi
22.5 ipm—black and white
7.5 ipm—colour

Scan resolution
1,200 x 1,200 dpi—platen glass
600 x 600 dpi—ADF

Image adjustment
Brightness, contrast

Supported operating systems
Windows Server 2008, Windows 7, Windows 8.1, Windows 10, Windows Server 2012/R2, Windows Server 2016

Fax types: Super G3
Fax circuit: PSTN, PBX
Fax modem speed: 33.6 Kbps with automatic shift down
Fax compression methods: MH, MR, MMR, JBIG
Fax resolution: Horizontal
203 dpi—8 dots/mm—standard, fine, super fine, photo

Vertical
98 dpi—3.85 dots/mm—standard
196 dpi—7.7 dots/mm—fine, photo
392 dpi—15.4 dots/mm—super fine
G3 fax transmission speed: Approximately 2.5 seconds
Fax SAF memory capacity: 16 MB

Encryption: SSL communication, SMTP over SSL/TLS, SNMP v3, Encrypted PDF Mode, Wireless LAN—WEP, WPA, WPA2

Windows: Windows Server 2008
Windows Server 2008 R2
Windows 7
Windows 8.1
Windows Server 2012
WIndows Server 2012 R2
Windows 10
Windows Server 2016
Macintosh: OS X Native—10.11 or later

Power source: 220–240 V, 50/60 Hz, 4.6 Amps or less
Power consumption: 1,104 W—maximum power
440 W—operating power
42 W or less—Ready Mode
6.2 W or less—Energy Saver Mode (Sleep Mode)
Typical Electricity Consumption (TEC): 1,232 Wh
Warm-up time: 28 seconds or less
Power saving mode: 1 minute default shift time—Energy Saver Mode (Sleep Mode)
Recovery time: From Energy Saver Mode (Sleep Mode)
11 seconds or less
Green labels: Blue Angel Mark (BAM)
