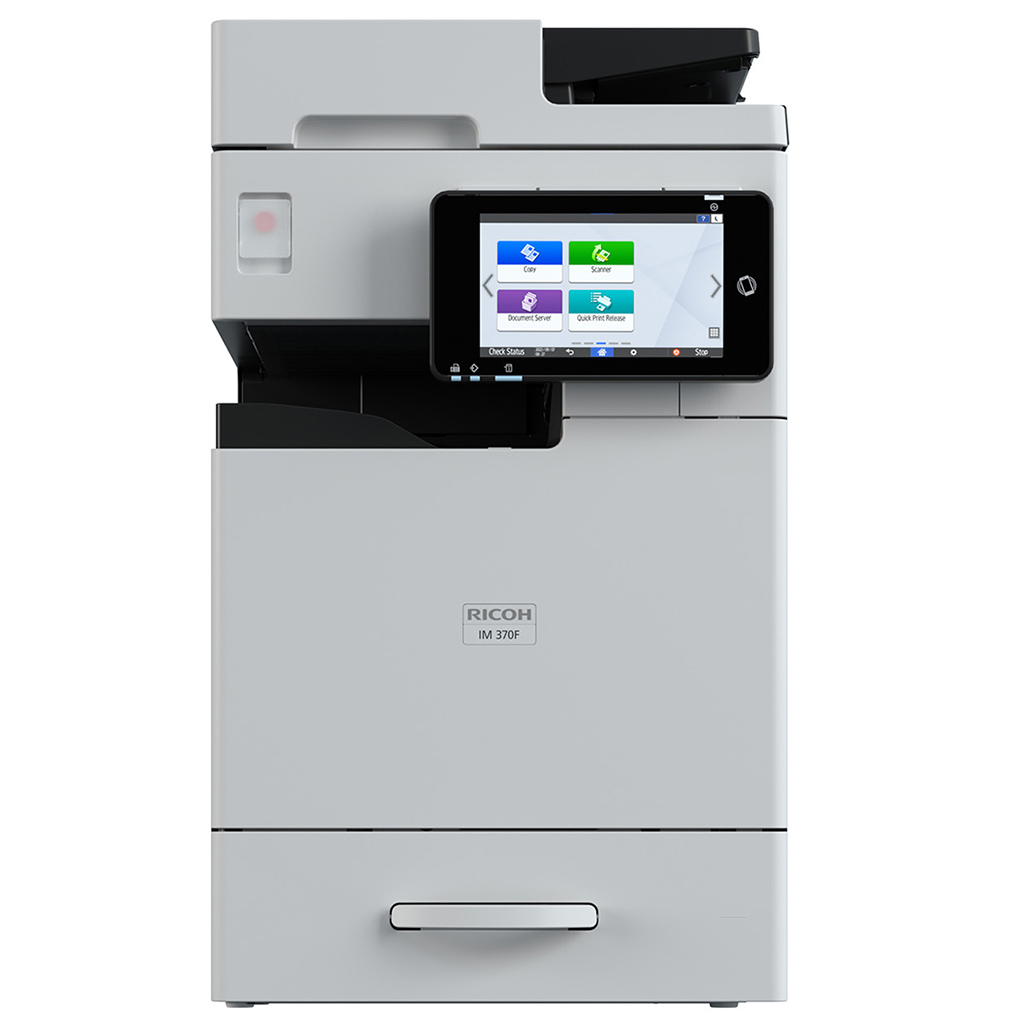

IM 370F A4 black and white multifunction printer

Prints up to 37 ppm
A3 capability
7" Smart Operation Panel
RICOH Always Current Technology

여기에서 기기 구성

Make it your own

Do work your way by personalising and enhancing the capabilities of your MFP with applications and solutions readily available from the cloud with RICOH Smart Integration.

Enhanced performance and productivity

Experience the benefits of fast black and white print and colour scan speeds and enjoy the added convenience of A3 capabilities in a compact A4 form factor when needed.

Reliable data protection
A host of upgraded features, such as enhanced privileged account control and tighter integration with Windows and LDAP platforms, provide improved security.
Smooth operation
Latest generation Smart Operation Panel marries powerful features with fast and simple navigation for a smooth and productive user experience.
RICOH Always Current Technology
Download and install security and software updates directly to your device as they become available.
Environmentally responsible
The outer mainframe uses 17% post-consumer recycled materials while the toner bottles are made from 100% recycled plastics.

Download PDF brochure

Specifications

기능: Copy, print, scan, fax
컬러: No
HDD: eMMC 56 GB
메모리 - 표준: 6 GB (Mainframe 2 GB + Smart Operation Panel 4 GB)
오퍼레이션 패널: 7" Smart Operation Panel

물리적 크기 (WxDxH)-기기 본체: 374 x 493 x 640 mm
무게 - 기기 본체: 41 kg

표준 용지입력 용량(매수): 600
최대 용지입력 용량(매수): 2,100
표준 용지출력 용량(매수): 250
최대 용지출력 용량(매수): 250
용지 입력 구성 - 표준: 500-sheet paper input tray, 100-sheet bypass tray, duplex unit, 50-sheet SPDF
용지 출력 구성 - 표준: 250 sheets—A4 LEF or smaller
100 sheets—Larger than A4 LEF
지원하는 미디어: Plain paper (type not displayed), recycled paper, special paper 1–2, colour paper, letterhead, pre-printed paper, OHP, label paper, envelope
최대 용지 크기: A3—via bypass tray, SPDF
미디어 무게(g/m2): 52–216

인터페이스 - 표준

Mainframe
10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
USB Host Type A—1 port
USB Device Type B—1 port

Smart Operation Panel

Bluetooth 5.2
USB Host Type A—1 port for USB Flash memory
Optional USB Type A—1 port for NFC card reader

인터페이스 - 옵션

IEEE 802.11a/b/g/n (2.4 GHz, 5 GHz)—Wireless LAN
Device Server Option Type M54—additional 10Base T/100Base TX/1000Base-T port

네트워크 프로토콜 - 표준

TCP/IP (IPv4, IPv6)

복사 속도

Single document, multiple copies
37 cpm—via platen
37 cpm—via SPDF

Multiple documents, single copy
28 cpm—via SPDF

첫 복사 시간

4.7 seconds—via platen
6.4 seconds—via SPDF

복사 해상도

600 x 600 dpi—printing
300 x 600 dpi—scanning, 200%
600 x 600 dpi—scanning, 201%

확대 범위

25%–400% in 1% steps

양면 복사

Supported

책 복사

Booklet, magazine, layout and booklet

ID카드 복사

Supported

흑백 출력 속도

37 ppm—A4 LEF, simplex
28 ppm—A4 LEF, duplex

첫 출력 시간

3.8 seconds

출력 해상도

1,200 x 1,200 dpi

페이지 설명 언어(PDLs)

Standard
PostScript 3 emulation, PDF Direct emulation, PCL, MediaPrint TIFF

Optional
Genuine Adobe PostScript 3, IPDS

프린터 드라이버

PCL 5e, PCL 6, PostScript 3

양면 출력

Standard

모바일 프린팅

Yes

USB/SD에서 인쇄

Supported

스캔 속도

A4 LEF, via SPDF, 200 dpi, 300 dpi
46 ipm or faster—simplex
92 ipm or faster—duplex

스캔 방법

Scan to USB, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to Searchable PDF (embedded), Scan to Digitally Signed PDF
Note: Optional OCR unit required for Scan to Searchable PDF.

컬러 스캐닝

Standard

스캔 해상도

100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi
Note: 1,200 dpi is only supported with TWAIN scanning.

스캔 to 타입

Single-and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A

스캔 to 이메일

Protocols
SMTP gateway, TCP/IP

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Scan to email file types
TIFF, JPEG, PDF, PDF-A, High Compression PDF, Encrypted PDF, Searchable PDF
Note: Optional OCR unit required for Scan to Searchable PDF.

스캔 to 폴더

Protocols
SMB, FTP

Security
Client folder logon, encryption of logon name and password during transmission

Scan resolution
100 pi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Search for client folders
Supported

Scan to folder file types
Searchable PDF, single-page JPEG, single-page PDF, single-page PDF/A, single-page TIFF, single-page high compression PDF, searchable PDF, multi-page multi page PDF/A, multi-page TIFF, multi-page high compression PDF

TWAIN 스캐닝

Scan mode
Standard, Photo, OCR, Filing

Scan speed
A4 LEF, 200 dpi, 300 dpi
46 ipm—simplex
92 ipm—duplex

Scan resolution
100–1,200 dpi

팩스 타입

G3 fax, Internet fax, IP fax, LAN-Fax, Paperless fax, Direct SMTP fax

팩스 회로

PSTN, PBX

팩스 호환성

ITU-T (CCITT), G3

팩스 모뎀 속도

2,400 bps–33.6 Kbps—G3, standard with automatic shift down

팩스 압축 방법

MH, MR, MMR

팩스 해상도

200 x 100 dpi, 8 x 3.85 lines/mm—Standard Mode
200 x 200 dpi, 8 x 7.7 lines/mm—Detail Mode
8 x 15.4 lines/mm, 16 x 15.4 lines/mm—Super Fine Mode

G3 팩스 전송 속도

Approximately 3 seconds

팩스 SAF 메모리 용량

Standard
4 MB—approximately 320 pages

Optional
60 MB—approximately 4,800 pages

팩스 메모리 백업

1 hour

단축번호

2,000 numbers

데이터 덮어쓰기 보안 시스템(DOSS) - 표준: Yes—optional HDD unit required
암호화: Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
eMMC encryption
인증: User authentication—Windows and LDAP via Kerberos, Basic, User Code
802.1x wired authentication
Wireless LAN security (WEP, WPA2, 11i)
IPv6
Quota setting
WiFi Protected Setup (WPS) support

Windows: Windows 8.1
Windows Server 2012
Windows Server 2012 R2
Windows 10
Windows Server 2019
Windows 11
Windows Server 2022
Macintosh: OS X Native v10.15 or later—PostScript 3 only
Unix: Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—v7.1, v7.2
SAP: Environment—R/3, S/4
Platforms—SAP R/3 (release versions 3.0 and higher), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA
Page description language—PCL
Character sets—Latin-1, Latin-2, Unicode
Supported features—Available for the printing of all SAP document types (SAPScript, Smartforms, ABAP)
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5, MSI, USPS POSTNET, EAN/UPC
OCR fonts—OCR A, OCR B

표준: @Remote Embedded
Web Image Monitor
옵션: RICOH Streamline NX v3
GlobalScan NX
Enhanced Locked Print NX v2 and FlexRelease Server v2
FlexRelease CX
Card Authentication Package v2 and Enterprise Server v2
Device Manager NX Lite and Accounting
Printer Driver Packager NX
RICOH @Remote Connector NX
RICOH Print Management Cloud
모바일 어플리케이션: RICOH Smart Device Connector

전원: 220–240 V, 50/60 Hz—Asia Pacific
110 V, 60 Hz—Taiwan
소비 전력: 1,780 W—maximum power, guaranteed
528.8 W—printing, nominal
26.4 W—Ready Mode, nominal
0.45 W—Energy Saver Mode (Sleep Mode), nominal
일반 전기 소비량(TEC): 0.38 kWh
예열시간: 32 seconds or less—Quick Mode
60 seconds or less—Without Quick Mode
복구 시간: 8.8 seconds or less—Energy Saver Mode (Sleep Mode)
그린 라벨: Thai Green Label Scheme, Hong Kong Energy Efficiency Labelling Scheme
