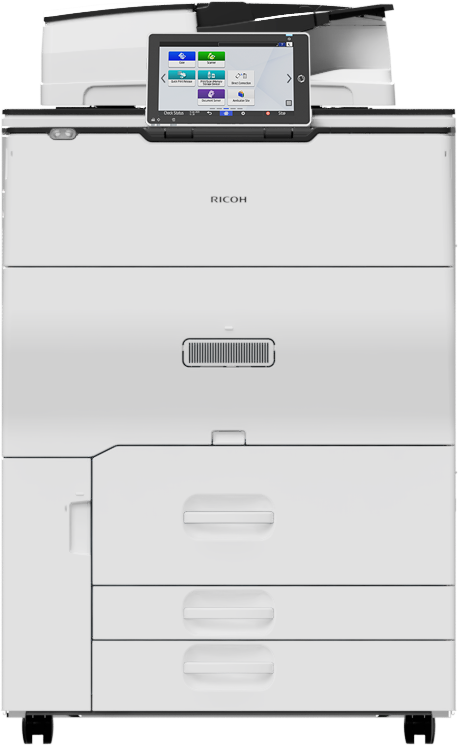

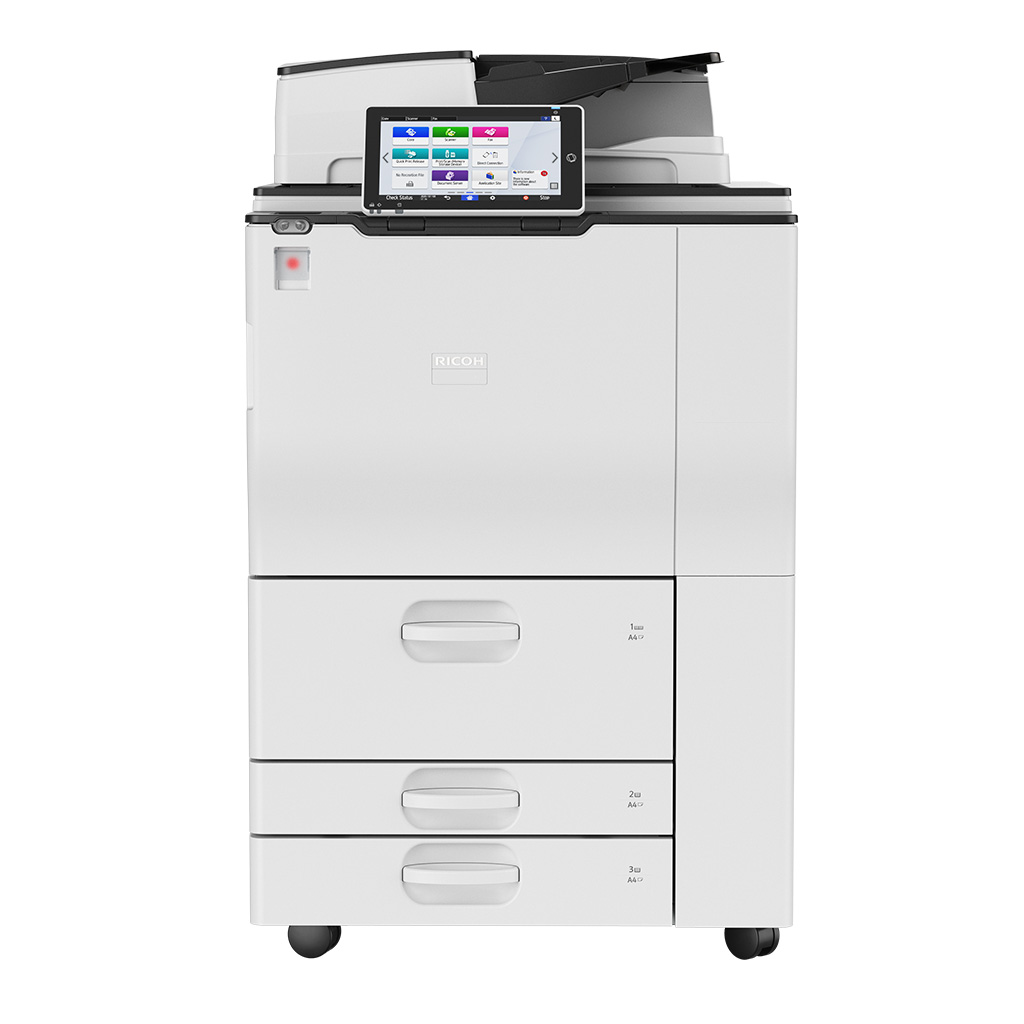

The IM 8000 is an intelligent MFP that is scalable, reliable, and easy to use—enabling customers to work smarter and more effectively.
It provides top-of-the-line productivity with high-speed printing, scanning, copying, and optional faxing.
The IM 8000 comes standard with a 10.1” Smart Operation Panel that has improved responsiveness and enhancements for better usability and user comfort.
It supports a range of optional accessories for specific workflows, including a small paper tray and double feed detection unit for the SPDF.
Customers can also choose from multiple finishing options, including multi-folding units, a cover interposer, and finishers to create professional-looking documents and marketing collateral in-house.

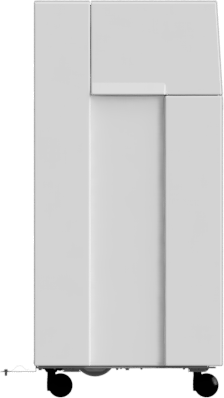

LCT RT4080
Optional side Large Capacity Tray significantly increasing the capacity of the device.
Paper capacity: 4,400 sheets
Paper size: A4 LEF, B5 LEF
Paper weight: 52–128 g/m2 Physical dimensions (W x D x H): 314 x 458 x 659 mm; 462 x 458 x 659 mm— with 8 ½” x 14” Paper Size Tray Type 9002
Weight: 20 kg or less
Power consumption: 23 W or less
8 ½”x14” Paper Size Tray Type 9002
Inserted in the LCT
Paper size: 8½" x 14", 8½" x 11" SEF, A4 SEF, B4 SEF Paper weight: 52–128 g/m2
Notes:
By choosing this option the LCT RT4080 will be added to the configuration.
A3/11” x 17” Tray Type M44
Converts the standard paper input tray from a tandem A4 tray to an A3 tray.
Capacity: 1,000 sheets Paper size: A3, B4, A4 LEF, A4 SEF Dimensions (W x D x H): 490 x 530 x 220 mm Weight: 11 kg
Small Paper Feeding Unit Type M37
Optional unit for SPDF to scan small size paper. Used for scanning bank cheques or application slips.
Stack capacity: 44 sheets
Original size: 76–105 mm x 148–218 mm
Paper weight: 64–128 g/m2
Dimensions (W x D x H): 218 x 173 x 55 mm
Weight: 0.19 kg
Page Keeper Type M37
Supports SPDF as a double feed detection unit preventing more than one page from being scanned at a time.
Tab Sheet Holder Type 9002
Recommended to be used when loading tab stock in the paper trays. Physical dimensions (W x D x H): 68 x 280 x 12 mm Weight: 0.5 kg or less

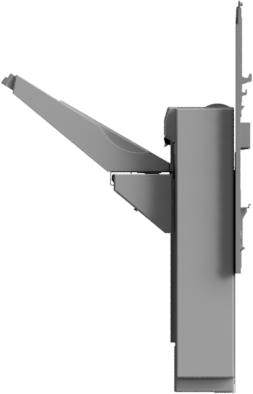

Shift Sort Tray SH4020
Enables the system to output copies as sets in sequential order.
Shift capacity: 1,250 sheets—A4; 500 sheets—A3 SEF, A5 LEF; 100 sheets—A5 SEF, A6 SEF
Paper size: A6 SEF–A3 SEF
Dimensions (W x D x H): 400 x 600 x 480 mm
Weight: 11 kg
Power consumption: 20 W or less
Notes:
Cannot be installed with Multi-Folding Unit FD4020,Multi-Folding Unit FD4010,Mailbox CS4010,Cover Interposer Tray CI4040,Finisher SR4150,Booklet Finisher SR4160,Finisher SR4140,Copy Tray Type 9002,Output Jogger Unit Type M25,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC
Copy Tray Type 9002
A basic tray for printed and copied output when no advanced finishing—including stapling, hole punching, folding, or booklet making—is required. Output is delivered face down in a neat stack.
Capacity: 500 sheets
Paper size: A6–A3; custom size 100–305 mm x 140–600 mm
Dimensions (W x D x H): 329 x 410 x 78 mm
Weight: 0.75 kg
Notes:
Cannot be installed with Multi-Folding Unit FD4020,Multi-Folding Unit FD4010,Mailbox CS4010,Cover Interposer Tray CI4040,Shift Sort Tray SH4020,Finisher SR4150,Booklet Finisher SR4160,Finisher SR4140,Output Jogger Unit Type M25,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC

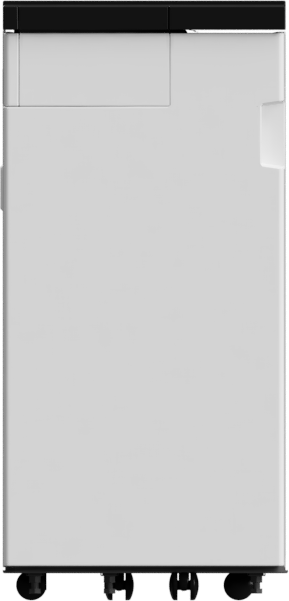

Multi-Folding Unit FD4020
For creating professional-looking output with a number of folding patterns.
Folding types: Single-sheet mode
Z-fold, Half-fold, Letter fold-in, Letter fold-out, Double Parallel, Gate-fold
Paper weight: 64–105 g/m2 Multiple-sheet mode
Half-fold, Letter fold-in, Letter fold-out—up to 3 sheets
Paper weight: 64–80 g/m2
Paper size:
A4, B4, A3 (Z-fold)
B5, A4, B4, A3, SRA3, SRA4 (Half fold)
B5, A4, B4, A3 (Letter-fold, Double parallel-fold, Gate-fold)
Dimensions (W x D x H): 470 x 730 x 980 mm
Weight: 92 kg
Power consumption: 240 W
Notes:
Cannot be installed with Shift Sort Tray SH4020,Copy Tray Type 9002,Multi-Folding Unit FD4010
One of the following must also be selected: Finisher SR4150,Booklet Finisher SR4160,Finisher SR4140
Multi-Folding Unit FD4010
For creating professional-looking output with a number of folding patterns.
Folding types: Single-sheet mode Z-fold, Half-fold, Letter fold-in, Letter fold-out
Paper weight: 64–105 g/m2 Multiple-sheet mode Letter fold-in, Letter fold-out—up to 3 sheets
Paper weight: 64–80 g/m2
Dimensions (W x D x H): 209 x 730 x 980 mm
Weight: 45 kg or less
Power consumption: 60 W or less
Notes:
Cannot be installed with Shift Sort Tray SH4020,Copy Tray Type 9002,Multi-Folding Unit FD4020
One of the following must also be selected: Finisher SR4150,Booklet Finisher SR4160,Finisher SR4140

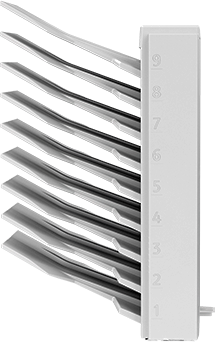

Mailbox CS4010
Provides individual bins for separate users or jobs. Can be configured with a mainframe or finisher.
Number of bins: 9
Capacity: 100 sheets per bin
Paper size: A5–A3
Paper weight: 60–128 g/m2 Dimensions (W x D x H): 540 x 600 x 660 mm
Weight: 15 kg or less
Power consumption: 48 W or less
Notes:
Cannot be installed with Shift Sort Tray SH4020,Copy Tray Type 9002,Cover Interposer Tray CI4040,Finisher SR4140,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC
One of the following must also be selected: Finisher SR4150,Booklet Finisher SR4160

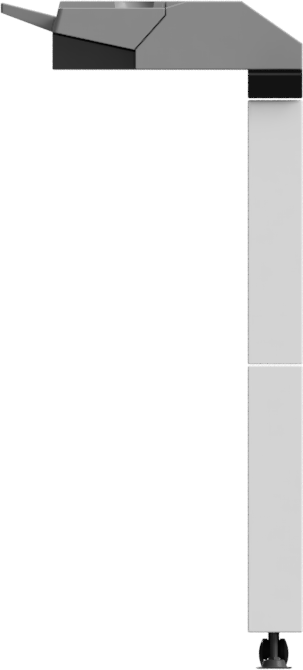

Cover Interposer Tray CI4040
Allows pre-printed covers and inserts to be easily fed into the finishing workflow from a single source. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.
Note: Supported paper specifications are determined by the attached mainframe.
Capacity: 200 sheets (measured with a paper thickness of 0.12 mm)
Paper size: A5–A3
Paper weight: 64–216 g/m2
Original set position: Centre
Original position (normal feed, saddle stitch): Face up
Dimensions (W x D x H): 500 x 600 x 600 mm
Weight: 12 kg or less
Power consumption: 43 W or less
Notes:
Cannot be installed with Shift Sort Tray SH4020,Copy Tray Type 9002,Mailbox CS4010
One of the following must also be selected: Finisher SR4150,Booklet Finisher SR4160,Finisher SR4140

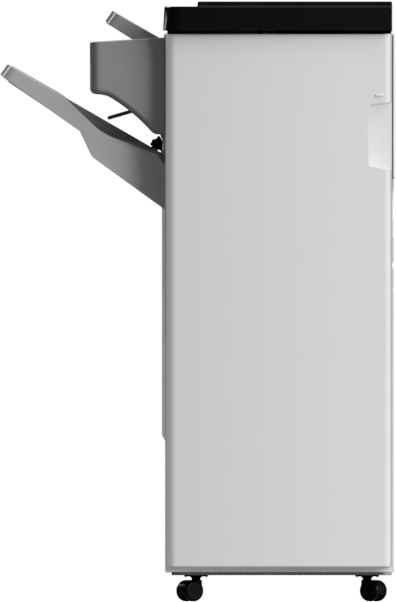

Finisher SR4150
Provides multi-position stapling and optional hole punching.
Capacity: 3,000 sheets
Paper size: B6–A3, SRA3
Custom paper size: 90 x 139.7 mm–330.2 x 487.7 mm
Paper weight: 52–360 g/m2
Staple capacity: 65 sheets
Staple positions: Top, bottom, 2 staples, top slant
Staple paper weight: 52–105 g/m2
Optional punch unit PU3090 available
Dimensions (W x D x H): 657 x 730 x 980 mm
Weight: 38 kg or less; 41 kg or less with punch unit
Power consumption: 67 W
Notes:
Cannot be installed with Shift Sort Tray SH4020,Booklet Finisher SR4160,Finisher SR4140,Copy Tray Type 9002,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC

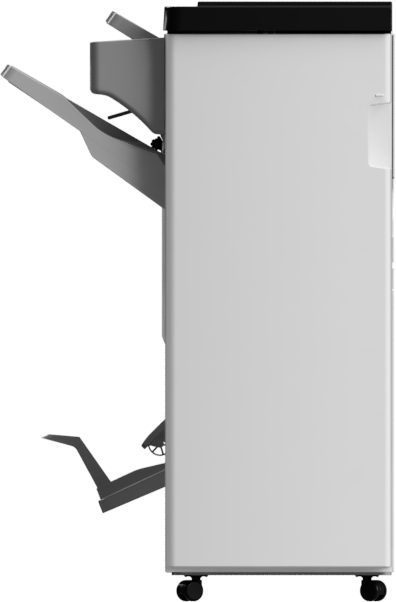

Booklet Finisher SR4160
Allows documents to be professionally finished as saddle-stitched booklets. Provides three destinations for output, and offers optional hole punching. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas.
Capacity: 2,000 sheets
Paper size: A3–A5, B6, A6, SRA3
Custom size: 90 x 139.7 mm–330.2 x 487.7 mm
Paper weight: 52–220 g/m2—proof tray; 52–360 g/m2—shift tray
Staple capacity: 65 sheets (normal staple)—same and mixed size; 20 sheets (saddle stitch staple)
Staple paper weight: 52–105 g/m2 (normal staple); 64–105 g/m2 (saddle stitch staple)
Staple positions: Top, bottom, 2 staple, top slant, bottom slant, booklet
Optional punch unit PU3090 available
Dimensions (W x D x H): 657 x 730 x 980 mm
Weight: 58 kg or less; 61 kg or less with punch unit
Power consumption: 67 W
Notes:
Cannot be installed with Shift Sort Tray SH4020,Finisher SR4150,Finisher SR4140,Copy Tray Type 9002,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC
Output Jogger Unit Type M25
A hardware component for finishers to jog paper output into a tidy position on the output tray, making it easy to collect, sort, and stack large print jobs.
Paper size: B5–SRA3
Shift capacity: 20 sheets
Paper weight: 52–300 g/m2
Dimensions (W x D x H): 143 x 539 x 218 mm
Weight: 2 kg or less
Power consumption: 15 W or less
Notes:
Cannot be installed with Finisher SR4140,Shift Sort Tray SH4020,Copy Tray Type 9002,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC
One of the following must also be selected: Finisher SR4150,Booklet Finisher SR4160
Punch Unit PU3090 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Paper size: 2-hole punch
A5 SEF–A3 SEF, HLT–DLT SEF
A5–A4 LEF, HLT LEF, LT LEF Note: A4 SEF and A5 LEF are not supported with 2 hole punch. 3-hole punch
B4 SEF, A3 SEF, DLT SEF
A4 LEF, B5 LEF, LT LEF
Paper weight: 52–256 g/m2
Weight: 2 kg
Notes:
Cannot be installed with Finisher SR4140,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Shift Sort Tray SH4020,Copy Tray Type 9002,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC
One of the following must also be selected: Finisher SR4150,Booklet Finisher SR4160
Punch Unit PU3090 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Paper size: 2-hole punch
A5 SEF–A3 SEF, HLT–DLT SEF
A5–A4 LEF, HLT LEF, LT LEF Note: A4 SEF and A5 LEF are not supported with 2 hole punch.
4-hole punch
B4 SEF, A3 SEF, DLT SEF
A4 LEF, B5 LEF, LT LEF
Paper weight: 52–256 g/m2
Weight: 2 kg
Notes:
Cannot be installed with Finisher SR4140,Punch Unit PU3090 NA,Punch Unit PU3090 SC,Shift Sort Tray SH4020,Copy Tray Type 9002,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC
One of the following must also be selected: Finisher SR4150,Booklet Finisher SR4160
Punch Unit PU3090 SC
Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.
Paper size:
A5 SEF–A3 SEF, HLT–DLT SEF
A5–A4 LEF, HLT LEF, LT LEF
Paper weight: 52–256 g/m2
Weight: 2 kg
Notes:
Cannot be installed with Finisher SR4140,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Shift Sort Tray SH4020,Copy Tray Type 9002,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC
One of the following must also be selected: Finisher SR4150,Booklet Finisher SR4160

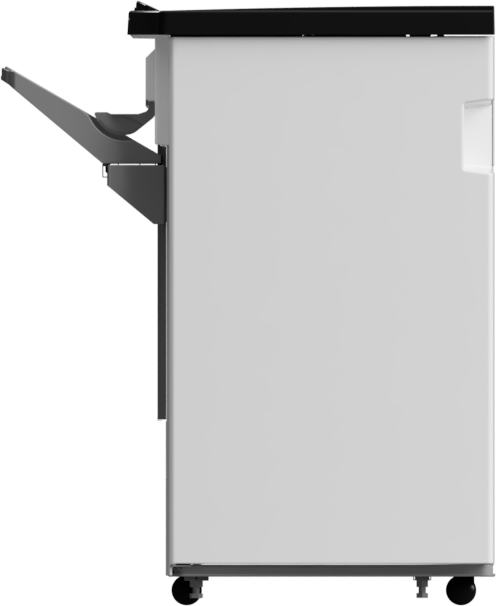

Finisher SR4140
Provides multi-position stapling and optional hole punching.
Capacity: 3,000 sheets
Paper size: B6–A3, SRA3
Paper weight: 52–300 g/m2
Staple capacity: 50 sheets (A3, B4); 100 sheets (A4, B5) without Z-folding
Staple positions: Top, bottom, 2 staples, top slant
Staple paper weight: 64–80 g/m2
Optional punch unit PU5050 available
Dimensions (W x D x H): 806 x 730 x 980 mm
Weight: 77 kg or less
Power consumption: 100 W
Notes:
Cannot be installed with Shift Sort Tray SH4020,Finisher SR4150,Booklet Finisher SR4160,Copy Tray Type 9002,Mailbox CS4010,Output Jogger Unit Type M25,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC
Punch Unit PU5050 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Notes:
By choosing this option the Finisher SR4140 will be added to the configuration.
Cannot be installed with Finisher SR4150,Booklet Finisher SR4160,Punch Unit PU5050 EU,Punch Unit PU5050 SC,Shift Sort Tray SH4020,Mailbox CS4010,Copy Tray Type 9002,Output Jogger Unit Type M25,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC
Punch Unit PU5050 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Notes:
By choosing this option the Finisher SR4140 will be added to the configuration.
Cannot be installed with Finisher SR4150,Booklet Finisher SR4160,Punch Unit PU5050 NA,Punch Unit PU5050 SC,Shift Sort Tray SH4020,Mailbox CS4010,Copy Tray Type 9002,Output Jogger Unit Type M25,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC
Punch Unit PU5050 SC
Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.
Notes:
By choosing this option the Finisher SR4140 will be added to the configuration.
Cannot be installed with Finisher SR4150,Booklet Finisher SR4160,Punch Unit PU5050 EU,Punch Unit PU5050 NA,Shift Sort Tray SH4020,Mailbox CS4010,Copy Tray Type 9002,Output Jogger Unit Type M25,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC
Copy Connector M25
Allows two mainframes to be connected for simultaneous copying of the same job.
PostScript3 Unit Type M44
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex documents.
XPS Direct Print Option Type M44
Allows users to print XPS format directly from the printer, without using an XPS-based driver.
IPDS Unit Type M44
Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
OCR Unit Type M13
Scans and creates searchable PDF files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
File Format Converter Type M19
Allows users to save copy and print jobs stored on the document server to a computer.
Notes:
Cannot be installed with IEEE 1284 Interface Board Type M19,Device Server Option Type M37,IEEE 802.11a/g/n Interface Unit Type M19
ADF Handle Type C
Assists seated users or users with arm injuries to open and close an automatic document feeder.
Fax Option Type M44
Enables fax services: 33.6 kbps, approximately 2 second transmission speed, standard JBIG, and standard 320-page memory.
Includes standard Internet Fax (T.37), LAN fax, IP-Fax (T.38), Fax forwarding to email, and Paperless fax function.
G3 Interface Unit Type M44
Additional G3 line.
Notes:
By choosing this option the Fax Option Type M44 will be added to the configuration.
Fax Connection Unit Type M44
Enables users to send and receive faxes on a sub-MFP via a fax-enabled main MFP. This option has to be installed in both the main MFP and sub-MFP(s) needing remote fax. Supports max 6 sub-connections.
Notes:
By choosing this option the Fax Option Type M44 will be added to the configuration.
Fax Memory Unit Type M25
64 MB additional memory that increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.
Notes:
By choosing this option the Fax Option Type M44 will be added to the configuration.
DataOverwriteSecurity Unit Type M19
Erases the temporary data on the hard disk drive. For customers who require ISO 15408 certification prior to the printer or MFP system being IEEE 2600.1 certified.
IEEE 1284 Interface Board Type M19
Allows users of older PC technology to connect to the latest printers and MFPs and access advanced printing features.
Notes:
Cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19,File Format Converter Type M19,Device Server Option Type M37
IEEE 802.11a/g/n Interface Unit Type M19
Enables WiFi connectivity and wireless printing.
Notes:
Cannot be installed with IEEE 1284 Interface Board Type M19,File Format Converter Type M19,Device Server Option Type M37
Device Server Option Type M37
An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option.
Notes:
Cannot be installed with File Format Converter Type M19,IEEE 802.11a/g/n Interface Unit Type M19,IEEE 1284 Interface Board Type M19
Optional Counter Interface Unit Type M12
Used with external third party counting devices for accounting and charge-back purposes.
Card Reader Bracket Type 3352
Used for attaching an external card reader to the mainframe.
NFC Card Reader Type M42
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology. It can be used with Ricoh devices that are equipped with the 10.1" Smart Operation Panel that have standard authentication embedded.
Smart Card Reader Built-in Unit Type M19
A plastic card reader cover that conceals the card reader and its cabling. A card reader is not included.
Notes:
Cannot be installed with NFC Card Reader Type M42,External Keyboard Bracket Type M25
External Keyboard Bracket Type M25
Used for attaching an external keyboard to the mainframe.
Notes:
Cannot be installed with NFC Card Reader Type M42,Smart Card Reader Built-in Unit Type M19
표준 구성
10.1” Smart Operation Panel
220-sheet SPDF
3,100-sheet tandem tray + 2 x 550-sheet trays
100-sheet bypass tray
PostScript3
320 GB HDD
현재 구성
IM 8000
690 mm x
883 mm x
1161 mm (W x D x H)
200 kg
선택된 옵션:
{"configuratorid":"b143733a-0c8d-4a41-a6f7-23d950b75acd","productid":"2ae8a218-e04f-4649-a398-a321bbe9197e","edpcode":"418782","productdisplayname":"IM 8000","width":690.0,"height":1161.0,"depth":883.0,"weight":200.0,"mainframe_imageurl":"-/media/all-regional/images/product-images/office-solutions/printers-and-copiers/mfp-colour/im-c6500-and-im-c8000/configurator/mainframe.png?dmc=0&hash=A60B1F9F8603F91A205AC8A8D6ABA376","configurator_hash":"cf031e10-d02c-49b4-9a1b-34e9b22f8c9e","options":{"418791":{"edpcode":"418791","displayname":"LCT RT4080","extras":[],"width":314.0,"height":659.0,"depth":458.0,"weight":20.0,"show_image":true,"hide_until_required":false},"416232":{"edpcode":"416232","displayname":"8 ½”x14” Paper Size Tray Type 9002","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418793":{"edpcode":"418793","displayname":"A3/11” x 17” Tray Type M44","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":11.0,"show_image":false,"hide_until_required":false},"418367":{"edpcode":"418367","displayname":"Small Paper Feeding Unit Type M37","extras":[],"width":218.0,"height":55.0,"depth":173.0,"weight":0.19,"show_image":false,"hide_until_required":false},"418368":{"edpcode":"418368","displayname":"Page Keeper Type M37","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"416230":{"edpcode":"416230","displayname":"Tab Sheet Holder Type 9002","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.5,"show_image":false,"hide_until_required":false},"418792":{"edpcode":"418792","displayname":"Shift Sort Tray SH4020","extras":[],"width":400.0,"height":480.0,"depth":600.0,"weight":11.0,"show_image":true,"hide_until_required":false},"416229":{"edpcode":"416229","displayname":"Copy Tray Type 9002","extras":[],"width":329.0,"height":78.0,"depth":410.0,"weight":0.75,"show_image":true,"hide_until_required":false},"418186":{"edpcode":"418186","displayname":"Multi-Folding Unit FD4020","extras":[],"width":470.0,"height":980.0,"depth":730.0,"weight":92.0,"show_image":true,"hide_until_required":false},"418188":{"edpcode":"418188","displayname":"Multi-Folding Unit FD4010","extras":[],"width":209.0,"height":980.0,"depth":730.0,"weight":45.0,"show_image":true,"hide_until_required":false},"416633":{"edpcode":"416633","displayname":"Mailbox CS4010","extras":[],"width":540.0,"height":660.0,"depth":600.0,"weight":15.0,"show_image":true,"hide_until_required":false},"417631":{"edpcode":"417631","displayname":"Cover Interposer Tray CI4040","extras":[],"width":500.0,"height":600.0,"depth":600.0,"weight":12.0,"show_image":true,"hide_until_required":false},"418178":{"edpcode":"418178","displayname":"Finisher SR4150","extras":[],"width":657.0,"height":980.0,"depth":730.0,"weight":38.0,"show_image":true,"hide_until_required":false},"418180":{"edpcode":"418180","displayname":"Booklet Finisher SR4160","extras":[],"width":657.0,"height":980.0,"depth":730.0,"weight":58.0,"show_image":true,"hide_until_required":false},"417630":{"edpcode":"417630","displayname":"Output Jogger Unit Type M25","extras":[],"width":143.0,"height":218.0,"depth":539.0,"weight":2.0,"show_image":false,"hide_until_required":false},"418332":{"edpcode":"418332","displayname":"Punch Unit PU3090 NA","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":2.0,"show_image":false,"hide_until_required":false},"418333":{"edpcode":"418333","displayname":"Punch Unit PU3090 EU","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":2.0,"show_image":false,"hide_until_required":false},"418334":{"edpcode":"418334","displayname":"Punch Unit PU3090 SC","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":2.0,"show_image":false,"hide_until_required":false},"418183":{"edpcode":"418183","displayname":"Finisher SR4140","extras":[],"width":806.0,"height":980.0,"depth":730.0,"weight":77.0,"show_image":true,"hide_until_required":false},"418201":{"edpcode":"418201","displayname":"Punch Unit PU5050 NA","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":3.0,"show_image":false,"hide_until_required":false},"418202":{"edpcode":"418202","displayname":"Punch Unit PU5050 EU","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":3.0,"show_image":false,"hide_until_required":false},"418203":{"edpcode":"418203","displayname":"Punch Unit PU5050 SC","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":3.0,"show_image":false,"hide_until_required":false},"417927":{"edpcode":"417927","displayname":"Copy Connector M25","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418796":{"edpcode":"418796","displayname":"PostScript3 Unit Type M44","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418798":{"edpcode":"418798","displayname":"XPS Direct Print Option Type M44","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418801":{"edpcode":"418801","displayname":"IPDS Unit Type M44","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417430":{"edpcode":"417430","displayname":"OCR Unit Type M13","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417508":{"edpcode":"417508","displayname":"File Format Converter Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"416213":{"edpcode":"416213","displayname":"ADF Handle Type C","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418807":{"edpcode":"418807","displayname":"Fax Option Type M44","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418810":{"edpcode":"418810","displayname":"G3 Interface Unit Type M44","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418804":{"edpcode":"418804","displayname":"Fax Connection Unit Type M44","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417644":{"edpcode":"417644","displayname":"Fax Memory Unit Type M25","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417499":{"edpcode":"417499","displayname":"DataOverwriteSecurity Unit Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417596":{"edpcode":"417596","displayname":"IEEE 1284 Interface Board Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417493":{"edpcode":"417493","displayname":"IEEE 802.11a/g/n Interface Unit Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418399":{"edpcode":"418399","displayname":"Device Server Option Type M37","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417111":{"edpcode":"417111","displayname":"Optional Counter Interface Unit Type M12","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"415814":{"edpcode":"415814","displayname":"Card Reader Bracket Type 3352","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418258":{"edpcode":"418258","displayname":"NFC Card Reader Type M42","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417595":{"edpcode":"417595","displayname":"Smart Card Reader Built-in Unit Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417696":{"edpcode":"417696","displayname":"External Keyboard Bracket Type M25","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false}},"rules":[{"condition":{"condition_name":"TrueCondition","trigger_options":["416232"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["418791"],"should_validate_after_excute":false,"requires":["418791"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418792"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418186","418188","416633","417631","418178","418180","418183","416229","417630","418332","418333","418334","418201","418202","418203"],"should_validate_after_excute":false,"excludes":["418186","418188","416633","417631","418178","418180","418183","416229","417630","418332","418333","418334","418201","418202","418203"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416229"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418186","418188","416633","417631","418792","418178","418180","418183","417630","418332","418333","418334","418201","418202","418203"],"should_validate_after_excute":false,"excludes":["418186","418188","416633","417631","418792","418178","418180","418183","417630","418332","418333","418334","418201","418202","418203"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418186"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418792","416229","418188"],"should_validate_after_excute":false,"excludes":["418792","416229","418188"]},{"action_name":"RequireOneAction","affect_to_options":["418178","418180","418183"],"should_validate_after_excute":true,"require_ones":["418178","418180","418183"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418188"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418792","416229","418186"],"should_validate_after_excute":false,"excludes":["418792","416229","418186"]},{"action_name":"RequireOneAction","affect_to_options":["418178","418180","418183"],"should_validate_after_excute":true,"require_ones":["418178","418180","418183"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416633"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418792","416229","417631","418183","418201","418202","418203"],"should_validate_after_excute":false,"excludes":["418792","416229","417631","418183","418201","418202","418203"]},{"action_name":"RequireOneAction","affect_to_options":["418178","418180"],"should_validate_after_excute":true,"require_ones":["418178","418180"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417631"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418792","416229","416633"],"should_validate_after_excute":false,"excludes":["418792","416229","416633"]},{"action_name":"RequireOneAction","affect_to_options":["418178","418180","418183"],"should_validate_after_excute":true,"require_ones":["418178","418180","418183"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418178"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418792","418180","418183","416229","418201","418202","418203"],"should_validate_after_excute":false,"excludes":["418792","418180","418183","416229","418201","418202","418203"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418180"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418792","418178","418183","416229","418201","418202","418203"],"should_validate_after_excute":false,"excludes":["418792","418178","418183","416229","418201","418202","418203"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417630"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418183","418792","416229","418201","418202","418203"],"should_validate_after_excute":false,"excludes":["418183","418792","416229","418201","418202","418203"]},{"action_name":"RequireOneAction","affect_to_options":["418178","418180"],"should_validate_after_excute":true,"require_ones":["418178","418180"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418332"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418183","418333","418334","418792","416229","418201","418202","418203"],"should_validate_after_excute":false,"excludes":["418183","418333","418334","418792","416229","418201","418202","418203"]},{"action_name":"RequireOneAction","affect_to_options":["418178","418180"],"should_validate_after_excute":true,"require_ones":["418178","418180"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418333"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418183","418332","418334","418792","416229","418201","418202","418203"],"should_validate_after_excute":false,"excludes":["418183","418332","418334","418792","416229","418201","418202","418203"]},{"action_name":"RequireOneAction","affect_to_options":["418178","418180"],"should_validate_after_excute":true,"require_ones":["418178","418180"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418334"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418183","418332","418333","418792","416229","418201","418202","418203"],"should_validate_after_excute":false,"excludes":["418183","418332","418333","418792","416229","418201","418202","418203"]},{"action_name":"RequireOneAction","affect_to_options":["418178","418180"],"should_validate_after_excute":true,"require_ones":["418178","418180"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418183"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418792","418178","418180","416229","416633","417630","418332","418333","418334"],"should_validate_after_excute":false,"excludes":["418792","418178","418180","416229","416633","417630","418332","418333","418334"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418201"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["418183"],"should_validate_after_excute":false,"requires":["418183"]},{"action_name":"ExcludeOptionAction","affect_to_options":["418178","418180","418202","418203","418792","416633","416229","417630","418332","418333","418334"],"should_validate_after_excute":false,"excludes":["418178","418180","418202","418203","418792","416633","416229","417630","418332","418333","418334"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418202"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["418183"],"should_validate_after_excute":false,"requires":["418183"]},{"action_name":"ExcludeOptionAction","affect_to_options":["418178","418180","418201","418203","418792","416633","416229","417630","418332","418333","418334"],"should_validate_after_excute":false,"excludes":["418178","418180","418201","418203","418792","416633","416229","417630","418332","418333","418334"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418203"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["418183"],"should_validate_after_excute":false,"requires":["418183"]},{"action_name":"ExcludeOptionAction","affect_to_options":["418178","418180","418202","418201","418792","416633","416229","417630","418332","418333","418334"],"should_validate_after_excute":false,"excludes":["418178","418180","418202","418201","418792","416633","416229","417630","418332","418333","418334"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417508"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417596","418399","417493"],"should_validate_after_excute":false,"excludes":["417596","418399","417493"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418810"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["418807"],"should_validate_after_excute":false,"requires":["418807"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418804"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["418807"],"should_validate_after_excute":false,"requires":["418807"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417644"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["418807"],"should_validate_after_excute":false,"requires":["418807"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417596"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417493","417508","418399"],"should_validate_after_excute":false,"excludes":["417493","417508","418399"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417493"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417596","417508","418399"],"should_validate_after_excute":false,"excludes":["417596","417508","418399"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418399"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417508","417493","417596"],"should_validate_after_excute":false,"excludes":["417508","417493","417596"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417595"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418258","417696"],"should_validate_after_excute":false,"excludes":["418258","417696"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417696"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418258","417595"],"should_validate_after_excute":false,"excludes":["418258","417595"]}]}],"affect_group":[["418791","416232"],["418793"],["418367"],["418368"],["416230"],["418792","418186","418188","416633","417631","418178","418180","418183","416229","417630","418332","418333","418334","418201","418202","418203"],["417927"],["418796"],["418798"],["418801"],["417430"],["417508","417596","418399","417493"],["416213"],["418807","418810","418804","417644"],["417499"],["417111"],["415814"],["418258","417595","417696"]],"preselect_configs":{},"min_config":{"must_select_at_least_one_option":true,"requires":[],"requireones":[]}}
×
Invalid Configuration
The configuration selected is invalid. Please review the following and then try again.
Our site uses cookies so that we can remember you and understand how you use our site. This is to offer you a better browsing experience, analyse site traffic and personalise the content you see. By using this site, you consent to our use of cookies. For further information, please see our Privacy Policy.
