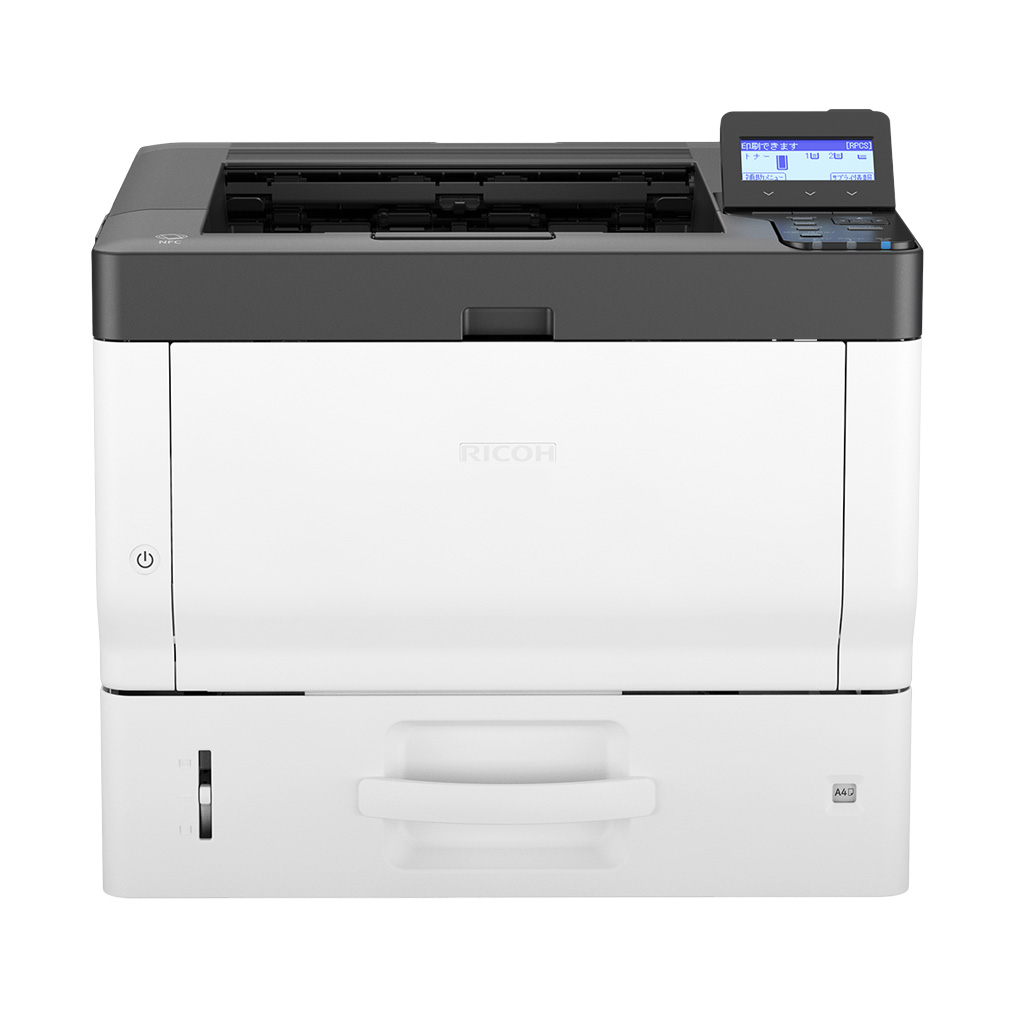

The P 502 offers quick print speeds, high resolution output, and a range of workflow improvements to boost efficiency and productivity.
It can handle heavy paper weights up to 256 g/m2, and supports maximum paper input capacity of 2,100 sheets, providing longer uninterrupted print runs.
It also comes with PostScript 3 and PDF Direct emulation as standard, and improved toner, allowing customers to produce professional documents accurately out of the box.
Paper Feed Unit PB1110
Optional 1-tray paper feed unit that increases the paper capacity of the device.
Capacity: 250 sheets
Paper size: A6–A4, B6–B5
Paper weight: 52–220 g/m2
Dimensions (W x D x H): 370 x 392 x 95 mm
Weight: 4.8 kg
Power consumption: 17 W
Notes:
Paper Feed Unit PB1120
Optional 1-tray paper feed unit that increases the paper capacity of the device.
Capacity: 500 sheets
Paper size: A6–A4, B6–B5
Paper weight: 52–220 g/m2
Dimensions (W x D x H): 370 x 392 x 124 mm
Weight: 5.5 kg
Power consumption: 19 W
Notes:
Caster Table Type M34
Provides a base with casters (wheels) to easily move the device on a floor standing configuration.
Dimensions (W x D x H): 420 x 490 x 64 mm
Weight: 7.3 kg
PostScript 3 Unit Type P18
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.
IPDS Unit Type P18
Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
XPS Direct Print Option Type P18
Allows users to print XPS format directly from the printer, without using an XPS-based driver.
Hard Disk Drive Option Type P18
The 320 GB Hard Disk Drive (HDD) is required for Locked/Hold/Stored Print. Data Overwrite and Encryption are available when the HDD is installed.
IEEE 1284 Interface Board Type M19
Allows users of older PC technology to connect to the latest printers and MFPs and access advanced printing features.
IEEE 802.11 Interface Unit Type M24
Enables WiFi connectivity and wireless printing.
Notes:
Cannot be installed with IEEE 1284 Interface Board Type M19
USB Device Server Option Type M19A
An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option.
Unicode Font Package for SAP 1 Licence
Supports multilingual data without restrictions.
Notes:
By choosing this option the Hard Disk Drive Option Type P18 will be added to the configuration.
Unicode Font Package for SAP 10 Licence
Supports multilingual data without restrictions.
Notes:
By choosing this option the Hard Disk Drive Option Type P18 will be added to the configuration.
표준 구성
Tiltable 4-line LCD display
Mobile printing
PostScript3 emulation
500-sheet input tray
100-sheet bypass tray
현재 구성

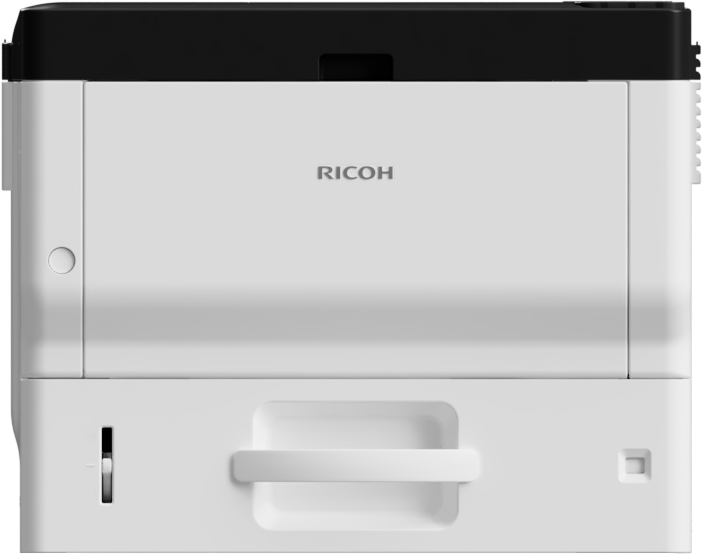

P 502
375 mm x
412 mm x
311 mm (W x D x H)
19.3 kg
선택된 옵션:
{"configuratorid":"e73f08d1-7cb2-4829-b14d-bb8ee516b401","productid":"1661b781-69ac-4088-83f4-0d49b1c4fbb7","edpcode":"418495","productdisplayname":"P 502","width":375.0,"height":311.0,"depth":412.0,"weight":19.3,"mainframe_imageurl":"-/media/all-regional/images/product-images/office-solutions/printers-and-copiers/printer-black-and-white/p-501-and-p-502/configurator/mainframe-p-501-p502.png?dmc=0&hash=A675C1404CC106307063E385B9A231BE","configurator_hash":"613ecc9e-9c59-4134-8727-b164080749da","options":{"418080":{"edpcode":"418080","displayname":"Paper Feed Unit PB1110","extras":[1,2,3],"width":370.0,"height":95.0,"depth":392.0,"weight":4.8,"show_image":true,"hide_until_required":false},"418081":{"edpcode":"418081","displayname":"Paper Feed Unit PB1120","extras":[1,2,3],"width":370.0,"height":124.0,"depth":392.0,"weight":5.5,"show_image":true,"hide_until_required":false},"418143":{"edpcode":"418143","displayname":"Caster Table Type M34","extras":[],"width":420.0,"height":64.0,"depth":490.0,"weight":7.3,"show_image":true,"hide_until_required":false},"418441":{"edpcode":"418441","displayname":"PostScript 3 Unit Type P18","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418444":{"edpcode":"418444","displayname":"IPDS Unit Type P18","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418445":{"edpcode":"418445","displayname":"XPS Direct Print Option Type P18","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418438":{"edpcode":"418438","displayname":"Hard Disk Drive Option Type P18","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417596":{"edpcode":"417596","displayname":"IEEE 1284 Interface Board Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"407863":{"edpcode":"407863","displayname":"IEEE 802.11 Interface Unit Type M24","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418106":{"edpcode":"418106","displayname":"USB Device Server Option Type M19A","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"413009":{"edpcode":"413009","displayname":"Unicode Font Package for SAP 1 Licence","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"413010":{"edpcode":"413010","displayname":"Unicode Font Package for SAP 10 Licence","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false}},"rules":[{"condition":{"condition_name":"TrueCondition","trigger_options":["407863"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417596"],"should_validate_after_excute":false,"excludes":["417596"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["413009"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["418438"],"should_validate_after_excute":false,"requires":["418438"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["413010"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["418438"],"should_validate_after_excute":false,"requires":["418438"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418080","418081"]},"actions":[{"action_name":"LimitQuantityOptionAction","affect_to_options":["418080","418081"],"should_validate_after_excute":false,"limit_quantity":3,"limit_for_options":["418080","418081"]}]},{"condition":{"condition_name":"QuantityCondition","trigger_options":["418080","418081"],"compare_quantity":3,"comparer":"Equal"},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["418143"],"should_validate_after_excute":false,"requires":["418143"]}]}],"affect_group":[["418080","418081","418143"],["418441"],["418444"],["418445"],["418438","413009","413010"],["417596","407863"],["418106"]],"preselect_configs":{},"min_config":{"must_select_at_least_one_option":false,"requires":[],"requireones":[]}}
×
Invalid Configuration
The configuration selected is invalid. Please review the following and then try again.
