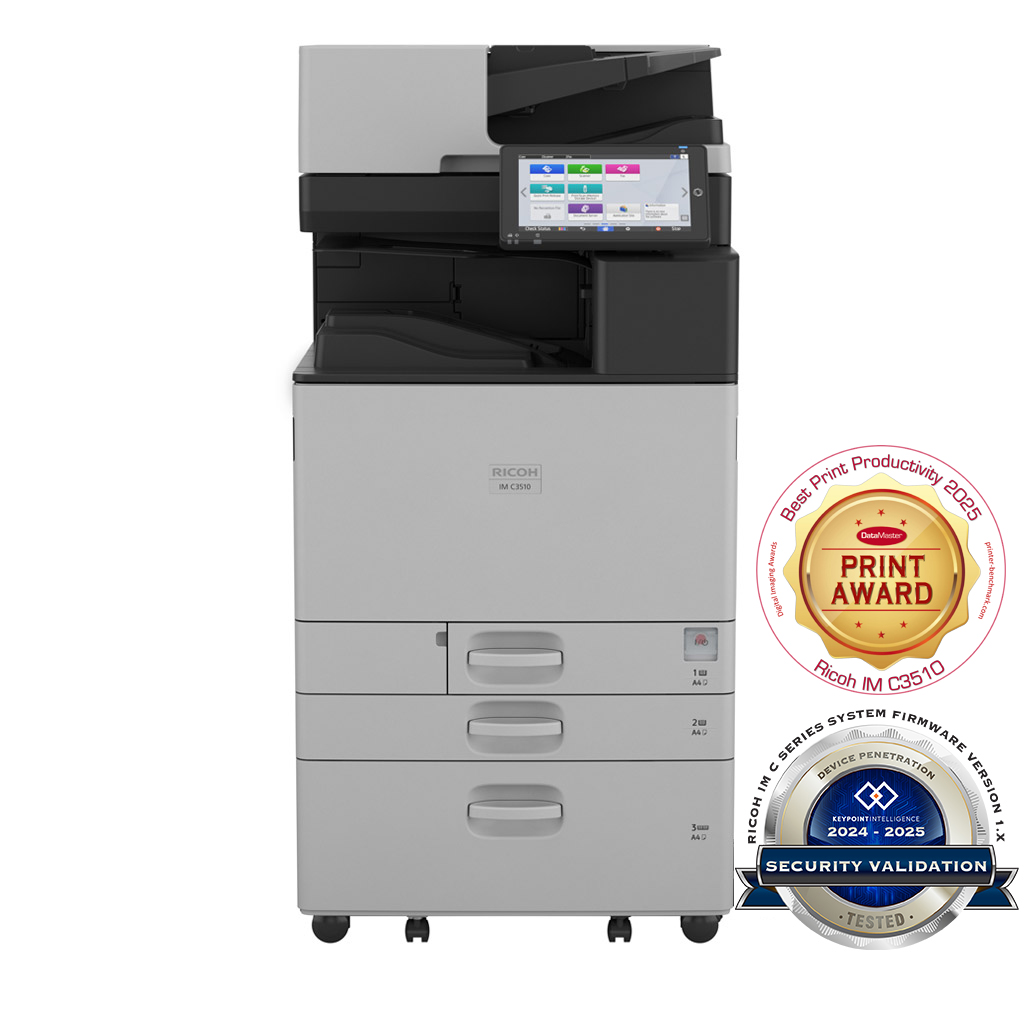

IM C3510 A3 colour multifunction printer

  • Copy, print, scan, optional fax
  • Prints up to 35 ppm
  • Top environmental performance
  • Robust security

Improved paper handling

An updated Single Pass Document Feeder (SPDF) lets you enjoy faster, professional results along with wider scanning possibilities, such as for business cards and cheques.

More intuitive operation

Our familiar Smart Operation Panel has been upgraded with improved brightness, touch sensitivity, and position detection, to deliver a more enjoyable user experience.

  1. Transitioning to the cloud
    Our cloud software solutions are readily available and easy to integrate with your existing IT infrastructure, allowing you to enhance the capabilities the IM C3510.
  2. Keep your device current
    Update your device as your business expands by downloading the latest features, upgrades, and applications as you need them.
  3. More energy savings
    A host of enhanced energy saving features, such as a new low-melt toner and lower fusing temperature, help to make this one of the most energy-efficient devices around.
  4. Reliable security
    Rely on the latest security features to protect your business critical documents and data.

Download PDF brochure


Specifications

Các tính năng
Copy, print, scan, optional fax
Màu sắc
Yes
HDD
256 GB SSD
Bộ nhớ - chuẩn
8 GB—4 GB mainframe + 4 GB Smart Operation Panel
Màn hình điều khiển
10.1" Smart Operation Panel
Kích thước vật lý (Rộng x Sâu x Cao) - phần máy chính
587 x 701 x 963 mm
Trọng lượng - thân máy chính
99.3 kg
Dung lượng giấy đầu vào chuẩn (tờ)
1,200
Dung lượng giấy đầu vào tối đa (tờ)
4,850
Dung lượng giấy đầu ra chuẩn (tờ)
500
250—B4 or larger
Dung lượng giấy đầu ra tối đa (tờ)
1,625
Cấu hình giấy đầu vào - chuẩn
2 x 550-sheet paper trays, 100-sheet bypass tray, 220-sheet SPDF, duplex unit
Cấu hình giấy đầu ra - chuẩn
500-sheet face-down internal output tray
Loại giấy hỗ trợ

Tray 1
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high gloss coated paper, coated paper

Tray 2
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high gloss coated paper, coated paper, envelope

Optional trays
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high-gloss coated paper, envelope, coated paper

Bypass tray
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high-gloss coated paper, envelope, coated paper, label paper

Kích thước giấy tối đa
SRA3
Định lượng giấy (g/m2)
52–300
Giao diện - chuẩn

Mainframe
10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
USB Host Type A—2 ports
USB Type B—1 port

Smart Operation Panel
Bluetooth 5.21
 USB Host Type A—USB Flash memory
USB Host Type A—optional 1 port for USB keyboard

1
—Cannot be used for printing

Giao diện - tùy chọn

IEEE 802.11 a/b/g/n/ac Interface Unit Type M52
Device Server Option Type M52 (additional Ethernet/Gigabit Ethernet port)

Giao thức mạng - chuẩn
TCP/IP (IPv4, IPv6)
Tốc độ sao chụp
35 cpm
Thời gian sao chụp bản đầu tiên
4.5 seconds—black and white
6.9 seconds—colour
Độ phân giải sao chụp

100, 200, 300, 400, 600 dpi—scanning
1,200 x 1,200 dpi (maximum)—printing

Phạm vi thu-phóng
25%–400% in 1% steps
Tỷ lệ phóng to
115%, 122%, 141%, 200%, 400%
Tỷ lệ thu nhỏ
93%, 87%, 82%, 71%, 61%, 50%, 25%
Sao chụp hai mặt
Simplex to duplex, duplex to duplex—with SPDF, book to duplex, front and back to duplex
Sao chụp sách
Booklet, magazine, layout and booklet
Tốc độ in màu
35 ppm
Tốc độ in trắng đen
35 ppm
Thời gian ra bản in đầu
4.0 seconds black and white, 6.6 seconds colour
Độ phân giải in

1,200 x 1,200 dpi / 4,800 x 1,200 dpi equivalent (maximum)

Ngôn ngữ mô tả trang (PDLs)

Standard
PCL 5c, PCL 6, PostScript 3 emulation, PDF Direct emulation

Optional
Genuine Adobe PostScript 3, PDF Direct from Adobe

Trình điểu khiển in

Standard
PCL 5c, PCL 6, PostScript 3 emulation

Optional
Genuine Adobe PostScript 3

In hai mặt
Standard
In ấn di động
Yes
Tốc độ scan

Via SPDF
150 ppm—simplex, 200 x 200 dpi
120 ppm—simplex, 300 x 300 dpi
300 ppm—duplex, 200 x 200 dpi
220 ppm—duplex, 300 x 300 dpi

Phương pháp scan

Scan to USB, Scan to email, Scan to folder, Scan to URL, Scan to MSB, Scan to FTP, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

Scan màu
Standard
Độ phân giải scan
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi
Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.
Scan theo định dạng tệp

Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A
Single- and multi-page high-compression PDF

Scan đến email

Protocols
SMTP gateway, TCP/IP, POP, IMAP 4

Authentication

SMTP authentication, POP before SMTP authentication

Scan resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Scan to email file types
Single-page
TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Multi-page
TIFF, PDF (default), PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

Scan đến thư mục

Protocols
SMB, FTP

Resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Search for client folders
SMB—browsing directly to the designated folder
FTP—by folder name

Scan to folder file types
Single-page
TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Multi-page
TIFF, PDF (default), PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

Scan dạng TWAIN

Scan mode
Standard, Photo, OCR, Filing
Note: Optional OCR unit required for OCR scanning.

Scan resolution
100–1,200 dpi
Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.

Các kiểu fax
G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
Mạch fax
PSTN, PBX
Độ tương thích
ITU-T (CCITT), G3—maximum 3 lines
Tốc độ của bộ phát tín hiệu fax
2,400 bps–33.6 Kbps—G3, standard with automatic shift down
Phương thức nén
MH, MR, MMR, JBIG
Độ phân giải fax

Standard mode
200 x 100 dpi—8 x 3.85 lines/mm

Detail mode

200 x 200 dpi—8 x 7.7 lines/mm

Super Fine mode
400 x 400 dpi—8 x 15.4 lines/mm
400 x 400 dpi—16 x 15.4 lines/mm

Note: Super Fine mode is supported with the optional SAF memory.

Tốc độ truyền tín hiệu fax G3
3 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
Dung lượng bộ nhớ SAF
Standard
4 MB—approximately 320 pages

With optional SAF memory

60 MB—approximately 4,800 pages
Sao lưu bộ nhớ fax
1 hour
Quay số nhanh
2,000 numbers
Mã hoá

SSD, PDF, Secure print, WEP, WPA
Authentication password
Encryption of data sent via Scan to email and Fax forwarding (S/MIME)

Xác thực

802.1x wired authentication
Administrator authentication
IEEE 802.11i security (WPA2)
IPv6
Quota setting
User authentication—Windows and LDAP via Kerberos, basic, user code
WiFi Protected Setup (WPS) support

Windows
PCL 5c, PCL 6, and PostScript 3
Windows 8.1
Windows 10
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019
Windows Server 2022
Macintosh
MacOS v10.15 or later—PostScript 3 only
Unix
PCL 5c, PostScript 3
Sun Solaris, HP-UX, SCO OpenServer, Red Hat Linux, IBM AIX
SAP
PCL 5c
R/3, S/4
Tiêu chuẩn
@Remote Embedded
Web Image Monitor
Tùy chọn

Streamline NX V3
GlobalScan NX
Enhanced Locked Print NX
Card Authentication Package

Ứng dụng di động
RICOH Smart Device Connector
Nguồn điện
220–240 V, 50/60 Hz—Asia Pacific
110 V, 60 Hz—Taiwan
Mức độ tiêu thụ điện
1,700 W or less—maximum power, Asia Pacific
1,584 W or less—maximum power, Taiwan
500.5 W—operating power, black and white
543.6 W—operating power, colour
38.5 W—Ready Mode
0.3 W—Energy Saver Mode (Sleep Mode)
Mức tiêu thụ điện năng (TEC)
0.35 kWh
Thời gian khởi động lại

24 seconds

Thời gian phục hồi

From Energy Saver Mode
6.2 seconds

Nhãn xanh
The Thai Green Label Scheme
Các tính năng hệ điều hành khác
Eco-friendly indicator, Energy Saver Timer, System Reset Timer
