Optional 1-tray paper feed unit that increases the paper capacity of the device.
Capacity: 250 sheets
Paper size: A6–A4, B6–B5
Paper weight: 52–220 g/m2
Dimensions (W x D x H): 370 x 392 x 95 mm
Weight: 4.8 kg
Power consumption: 17 W
Notes:
Paper Feed Unit PB1120
Optional 1-tray paper feed unit that increases the paper capacity of the device.
Capacity: 500 sheets
Paper size: A6–A4, B6–B5
Paper weight: 52–220 g/m2
Dimensions (W x D x H): 370 x 392 x 124 mm
Weight: 5.5 kg
Power consumption: 19 W
Notes:
Caster Table Type M34
Provides a base with casters (wheels) to easily move the device on a floor standing configuration.
Dimensions (W x D x H): 420 x 490 x 64 mm
Weight: 7.3 kg
Offline Stapler Type M34
Optional offline stapler located on the side of the system, providing walk-up users with the ability to conveniently staple printed output up to 20 sheets. Staples 1,000 times without reloading.
Dimensions (W x D x H): 68 x 88 x 65 mm
Weight: 0.32kg
PostScript 3 Unit Type M34
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.
XPS Direct Print Option Type M34
Allows users to print XPS format directly from the printer, without using an XPS-based driver.
OCR Unit Type M13
Scans and creates searchable PDF files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
File Format Converter Type M19
Allows users to save copy and print jobs stored on the document server to a computer.
Notes:
Cannot be installed with IEEE 1284 Interface Board Type M19,Extended USB Board Type M19,IEEE 802.11 Interface Unit Type M24,USB Device Server Option Type M19A
IPDS Unit Type P18
Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
DataOverwriteSecurity Unit Type M19
Erases the temporary data on the hard disk drive. For customers who require ISO 15408 certification prior to the printer or MFP system being IEEE 2600.1 certified.
IEEE 1284 Interface Board Type M19
Allows users of older PC technology to connect to the latest printers and MFPs and access advanced printing features.
Notes:
Cannot be installed with Extended USB Board Type M19,IEEE 802.11 Interface Unit Type M24,File Format Converter Type M19,USB Device Server Option Type M19A
Extended USB Board Type M19
Enables printing from USB Type B port.
Notes:
Cannot be installed with IEEE 1284 Interface Board Type M19,IEEE 802.11 Interface Unit Type M24,File Format Converter Type M19,USB Device Server Option Type M19A
IEEE 802.11 Interface Unit Type M24
Enables WiFi connectivity and wireless printing.
Notes:
Cannot be installed with IEEE 1284 Interface Board Type M19,Extended USB Board Type M19,File Format Converter Type M19,USB Device Server Option Type M19A
USB Device Server Option Type M19A
An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option.
Notes:
Cannot be installed with IEEE 1284 Interface Board Type M19,Extended USB Board Type M19,File Format Converter Type M19,IEEE 802.11 Interface Unit Type M24
Optional Counter Interface Unit Type M12
Used with external third party counting devices for accounting and charge-back purposes.
NFC Card Reader Type M27
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology. It can be used with Ricoh devices that are equipped with the 10.1" Smart Operation Panel that have standard authentication embedded.
Unicode Font Package for SAP 1 Licence
Supports multilingual data without restrictions.
Unicode Font Package for SAP 10 Licence
Supports multilingual data without restrictions.
Fax Connection Unit Type M34
Enables users to send and receive faxes on a sub-MFP via a fax-enabled main MFP. This option has to be installed in both the main MFP and sub-MFP(s) needing remote fax. Supports max 6 sub-connections.
Standard inclusions
Current configuration

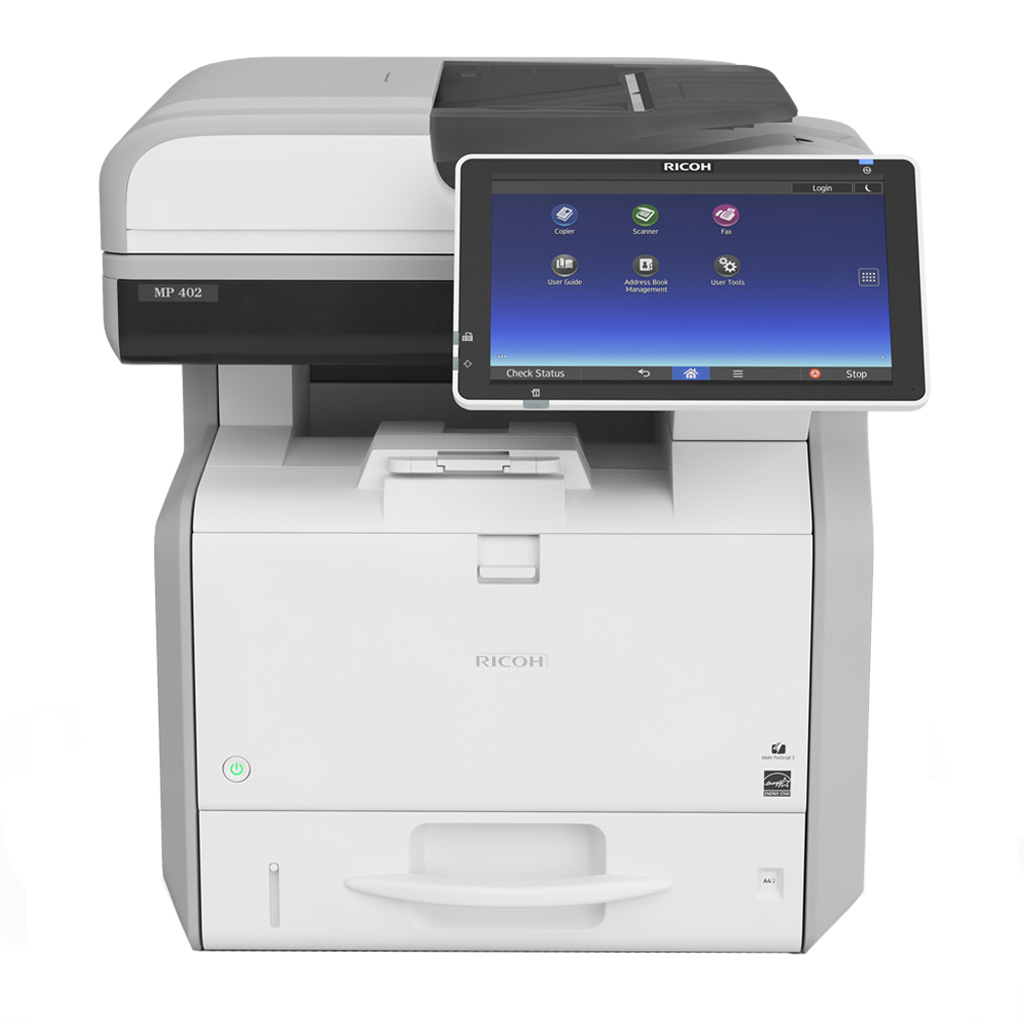

MP 402SPF
476 mm x
442 mm x
510 mm (W x D x H)
30.5 kg
Selected Options:
