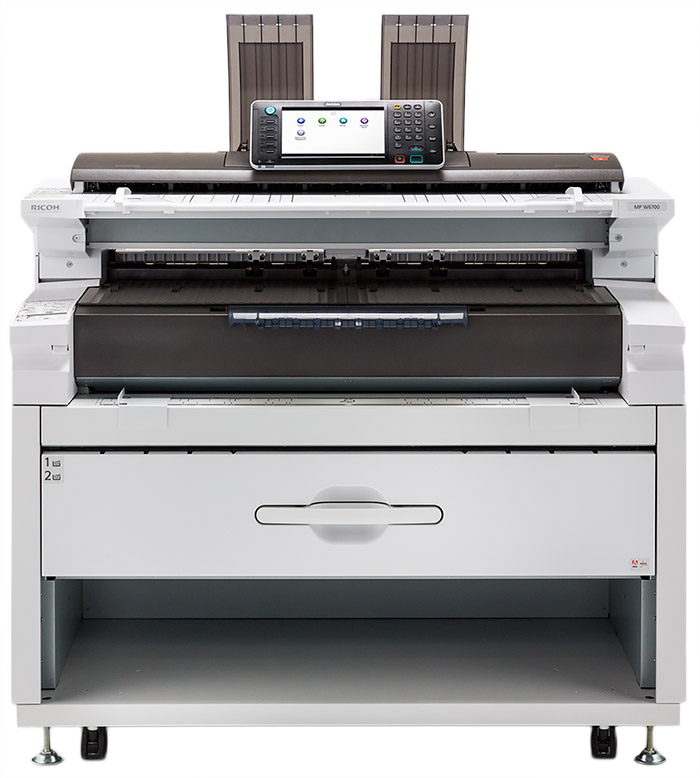

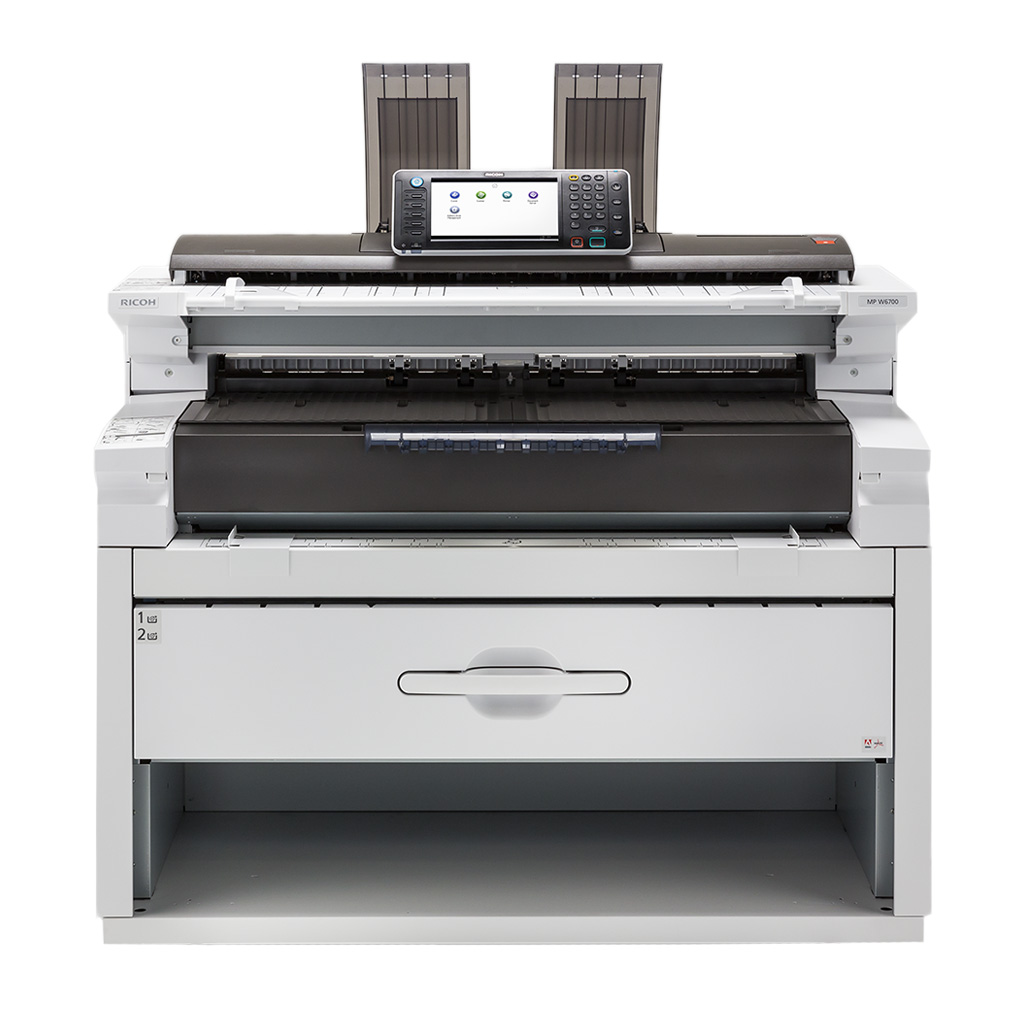

The MP W6700SP is a black and white wide format MFP with an A1 copy speed of 6.7 copies per minute (cpm). It comes with integrated print, copy, and colour scan functionality, and provides an impressive image quality of 600 dpi.
The MP W6700SP offers excellent productivity and high reliability for the specific wide format market, primarily targeting Architecture, Engineering, and Construction (AEC) companies.
The device’s maximum copy volume of 3,000 m or 5,509 copies per month makes it suitable for customers with low-end to mid-range print volume needs.
Original Hanger
Holds up to 100 originals on the front of the device for easy feeding of originals when copying or scanning.
Dimensions (W x D x H):244 × 135 x 528 mm
Weight:2.0 kg
Roll Holder Type A
Attached to both ends of a paper roll to provide additional flange inserts that grip the paper roll and mount it in the paper roll tray.
Dimensions (W x D x H):1,049 x 160 × 160 mm
Weight: 1.5 kg
Original Tray Type G
Used for stacking originals that consist of many sheets.
Double Stacker Type 7140
Attached to the back of the device to stack a large number of both originals and copies seperately.
Notes:
Cannot be installed with Original Tray Type G
Multi Stacker Type 7140
Can be attached either at the front or rear of the device to stack a large number of copies or originals.
Dimensions (W x D x H)788 x 790 x 890 mm
Weight:16.4 kg
Browser Unit Type M14
Enables to display information obtained from server applications on the operation panel of network devices as web pages. The device browser enables a server application and device to communicate, allowing scanned data to be sent to the server application, where the user can perform various operations.
OCR Unit Type M2
Scans and creates editable text files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
PrintCopy Tool
Software that works with Ricoh wide format devices to help manage the printing and copying of large drawings, plans, maps, and other technical documents.
Notes:
By choosing this option the PrintCopy Tool Option Type D 2019 will be added to the configuration.
PrintCopy Tool Option Type D 2019
A utility that enables centralised management of vast amounts of references and drawings. Allows for use of DWG, DXF, and DWF formats.
Notes:
By choosing this option the PrintCopy Tool will be added to the configuration.
SD Card for NetWare printing Type M14
Provides embedded printing capability to the copier. Includes printer option, TIFF/GL filter, and VM Java card.
Optional Counter Interface Unit Type M12
Used with external third party counting devices for accounting and charge-back purposes.
DataOverwriteSecurity Unit Type H
Erases the temporary data on the hard disk drive. For customers who require ISO 15408 certification prior to the printer or MFP system being IEEE 2600.1 certified.
IEEE 802.11a/g/n Interface Unit Type M2
Enables WiFi connectivity and wireless printing.
Standard inclusions
9" tiltable colour touch screen
2-roll feeder + Bypass tray
320 GB HDD
2.5 GB RAM
Integrated printer and scanner
1,200 dpi colour scanning
Current configuration
MP W6700SP
1250 mm x
755 mm x
1215 mm (W x D x H)
267 kg
Selected Options:
