MP W8140SP

MP W8140SP

MP W8140SP是大幅面多功能打印機，A1影印速度每分鐘14頁，集打印、影印及掃描功能於一身，打印圖像的品質高達600 dpi，表現甚為出色。

MP W8140SP的掃描器可從打印引擎分離，容許多人同時使用設備。

該款打印機具備頂尖產能，高度可靠，專為大幅面打印而設，主要適合建築、工程及建造、地理資訊系統及製造企業。

MP W8140SP亦非常適合付費打印業務及中央印刷部門，照顧其打印量中等及大的客戶。

Paper Cassette CT6510

Optional 2-tray paper feed unit that increases the paper capacity of the device.

Capacity: 500 (2 x 250) sheets
Note: Measured with 64–81 g/m2 paper weight.
Paper size: A24–A2
Paper weight: 64–110 g/m2
Dimensions (W x D x H): 1,014 x 644 x 236 mm
Weight: 38 kg or less

Notes:
Cannot be installed with Roll Feeder Unit RU6540
Paper Cassette CT6510
Original Hanger

Holds up to 100 originals on the front of the device for easy feeding of originals when copying or scanning.

Dimensions (W x D x H): 244 × 135 x 528 mm
Weight: 2.0 kg

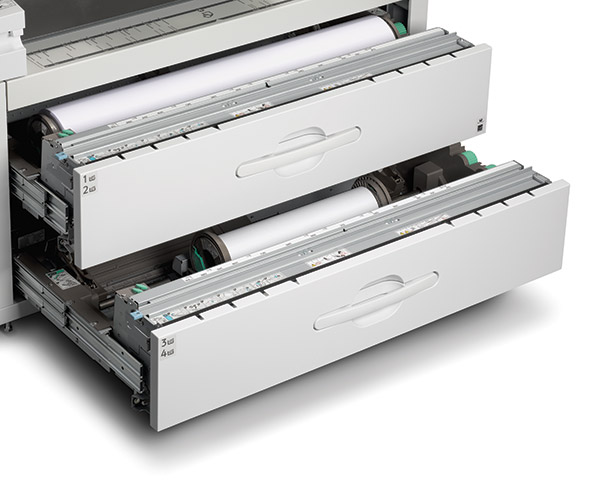

Roll Feeder Unit RU6540

Increases the roll capacity from standard 2 rolls to 4 rolls total.

Number of paper rolls: 2 rolls

Paper roll size:
Maximum
914 mm x 15,000 mm—for MP W7100SP
914 mm x 30,000 mm—for MP W8140SP
Minimum
210 x 210 mm

Paper roll width: 210, 257, 297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914 mm
Paper roll length: 200 metres
Paper position: Centre
Paper roll diameter: 175 mm
Dimensions (W x H x D): 1,124 x 369 x 236 mm
Weight: 36 kg or less

Notes:
Cannot be installed with Paper Cassette CT6510
Roll Feeder Unit RU6540
Roll Holder Type A

Attached to both ends of a paper roll to provide additional flange inserts that grip the paper roll and mount it in the paper roll tray.

Dimensions (W x D x H): 1,049 x 160 × 160 mm
Weight: 1.5 kg

Roll-Holder-Type-A
Original Tray Type G
Used for stacking originals that consist of many sheets.
Multi Stacker Type 7140

Can be attached either at the front or rear of the device to stack a large number of copies or originals.

Dimensions (W x D x H) 788 x 790 x 890  mm
Weight: 16.4 kg

Multi-Stacker-Type-7140
Browser Unit Type M14

Enables to display information obtained from server applications on the operation panel of network devices as web pages. The device browser enables a server application and device to communicate, allowing scanned data to be sent to the server application, where the user can perform various operations.

OCR Unit Type M2
Scans and creates editable text files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
PrintCopy Tool

Software that works with Ricoh wide format devices to help manage the printing and copying of large drawings, plans, maps, and other technical documents.

Notes:
By choosing this option the PrintCopy Tool Option Type D 2019 will be added to the configuration.
PrintCopy Tool Option Type D 2019

A utility that enables centralised management of vast amounts of references and drawings. Allows for use of DWG, DXF, and DWF formats.

Notes:
By choosing this option the PrintCopy Tool will be added to the configuration.
SD Card for NetWare printing Type M14
Provides embedded printing capability to the copier. Includes printer option, TIFF/GL filter, and VM Java card.
Optional Counter Interface Unit Type M12

Used with external third party counting devices for accounting and charge-back purposes.

DataOverwriteSecurity Unit Type H
Erases the temporary data on the hard disk drive. For customers who require ISO 15408 certification prior to the printer or MFP system being IEEE 2600.1 certified.
IEEE 802.11a/g/n Interface Unit Type M2
Enables WiFi connectivity and wireless printing.

Standard inclusions

  • 9吋可傾斜彩色觸控屏幕
  • 雙進紙滾輪 + 手動紙盤
  • 320 GB 硬碟
  • 2.5 GB RAM
  • 一體式打印機及掃描器
  • 1,200 dpi 彩色掃描

Current configuration

MP W8140SP
1250 mm x 755 mm x 1193 mm (W x D x H)
295 kg
