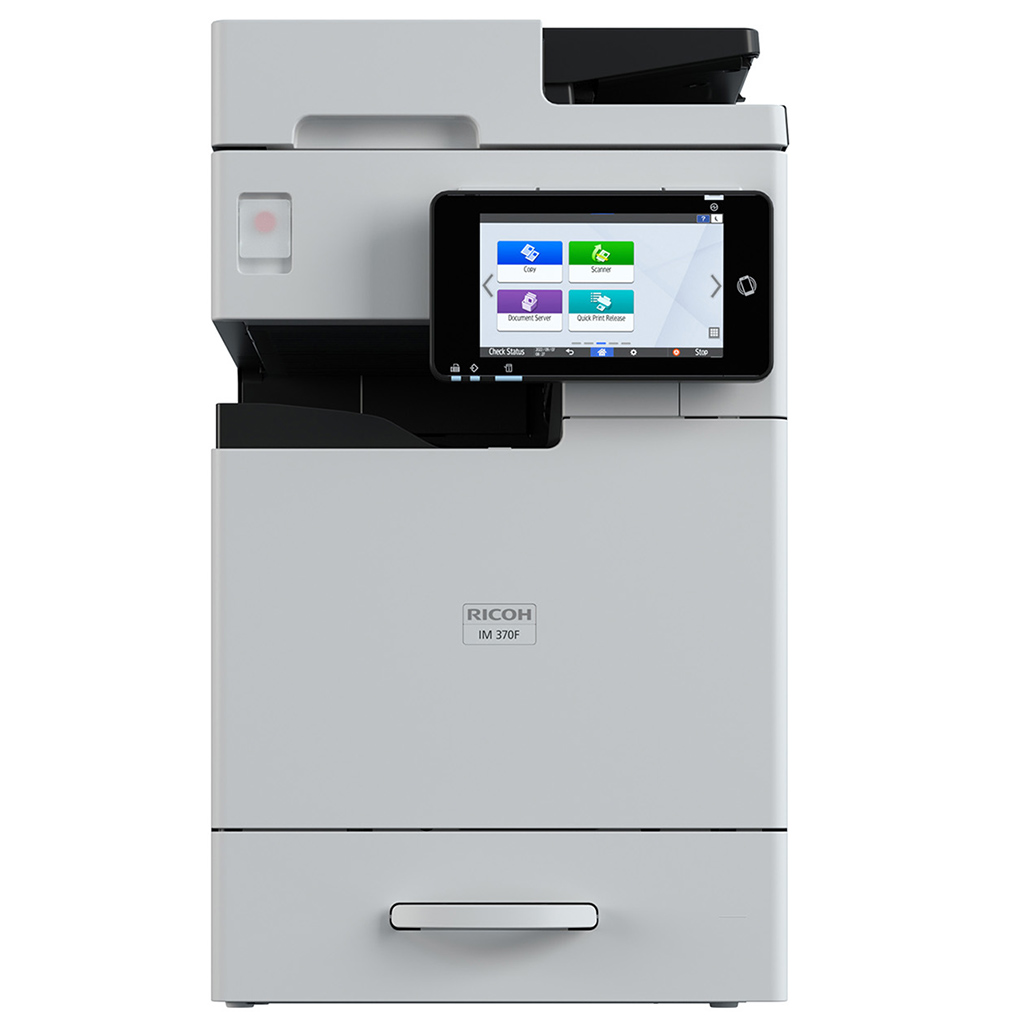

IM 370F A4 black and white multifunction printer

Prints up to 37 ppm
A3 capability
7" Smart Operation Panel
RICOH Always Current Technology

Make it your own

Do work your way by personalising and enhancing the capabilities of your MFP with applications and solutions readily available from the cloud with RICOH Smart Integration.

Enhanced performance and productivity

Experience the benefits of fast black and white print and colour scan speeds and enjoy the added convenience of A3 capabilities in a compact A4 form factor when needed.

Reliable data protection
A host of upgraded features, such as enhanced privileged account control and tighter integration with Windows and LDAP platforms, provide improved security.
Smooth operation
Latest generation Smart Operation Panel marries powerful features with fast and simple navigation for a smooth and productive user experience.
RICOH Always Current Technology
Download and install security and software updates directly to your device as they become available.
Environmentally responsible
The outer mainframe uses 17% post-consumer recycled materials while the toner bottles are made from 100% recycled plastics.

Download PDF brochure

Specifications

Các tính năng: Copy, print, scan, fax
Màu sắc: No
Bộ nhớ: eMMC 56 GB
Bộ nhớ - chuẩn: 6 GB (Mainframe 2 GB + Smart Operation Panel 4 GB)
Màn hình điều khiển: 7" Smart Operation Panel

Kích thước vật lý (Rộng x Sâu x Cao) - phần máy chính: 374 x 493 x 640 mm
Trọng lượng - thân máy chính: 41 kg

Dung lượng giấy đầu vào chuẩn (tờ): 600
Dung lượng giấy đầu vào tối đa (tờ): 2,100
Dung lượng giấy đầu ra chuẩn (tờ): 250
Dung lượng giấy đầu ra tối đa (tờ): 250
Cấu hình giấy đầu vào - chuẩn: 500-sheet paper input tray, 100-sheet bypass tray, duplex unit, 50-sheet SPDF
Cấu hình giấy đầu ra - chuẩn: 250 sheets—A4 LEF or smaller
100 sheets—Larger than A4 LEF
Loại giấy hỗ trợ: Plain paper (type not displayed), recycled paper, special paper 1–2, colour paper, letterhead, pre-printed paper, OHP, label paper, envelope
Kích thước giấy tối đa: A3—via bypass tray, SPDF
Định lượng giấy (g/m2): 52–216

Giao diện - chuẩn

Mainframe
10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
USB Host Type A—1 port
USB Device Type B—1 port

Smart Operation Panel

Bluetooth 5.2
USB Host Type A—1 port for USB Flash memory
Optional USB Type A—1 port for NFC card reader

Giao diện - tùy chọn

IEEE 802.11a/b/g/n (2.4 GHz, 5 GHz)—Wireless LAN
Device Server Option Type M54—additional 10Base T/100Base TX/1000Base-T port

Giao thức mạng - chuẩn

TCP/IP (IPv4, IPv6)

Tốc độ sao chụp

Single document, multiple copies
37 cpm—via platen
37 cpm—via SPDF

Multiple documents, single copy
28 cpm—via SPDF

Thời gian sao chụp bản đầu tiên

4.7 seconds—via platen
6.4 seconds—via SPDF

Độ phân giải sao chụp

600 x 600 dpi—printing
300 x 600 dpi—scanning, 200%
600 x 600 dpi—scanning, 201%

Phạm vi thu-phóng

25%–400% in 1% steps

Sao chụp hai mặt

Supported

Sao chụp sách

Booklet, magazine, layout and booklet

Sao chụp thẻ căn cước, chứng minh thư

Supported

Tốc độ in trắng đen

37 ppm—A4 LEF, simplex
28 ppm—A4 LEF, duplex

Thời gian ra bản in đầu

3.8 seconds

Độ phân giải in

1,200 x 1,200 dpi

Ngôn ngữ mô tả trang (PDLs)

Standard
PostScript 3 emulation, PDF Direct emulation, PCL, MediaPrint TIFF

Optional
Genuine Adobe PostScript 3, IPDS

Trình điểu khiển in

PCL 5e, PCL 6, PostScript 3

In hai mặt

Standard

In ấn di động

Yes

In từ USB/thẻ nhớ SD

Supported

Tốc độ scan

A4 LEF, via SPDF, 200 dpi, 300 dpi
46 ipm or faster—simplex
92 ipm or faster—duplex

Phương pháp scan

Scan to USB, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to Searchable PDF (embedded), Scan to Digitally Signed PDF
Note: Optional OCR unit required for Scan to Searchable PDF.

Scan màu

Standard

Độ phân giải scan

100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi
Note: 1,200 dpi is only supported with TWAIN scanning.

Scan theo định dạng tệp

Single-and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A

Scan đến email

Protocols
SMTP gateway, TCP/IP

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Scan to email file types
TIFF, JPEG, PDF, PDF-A, High Compression PDF, Encrypted PDF, Searchable PDF
Note: Optional OCR unit required for Scan to Searchable PDF.

Scan đến thư mục

Protocols
SMB, FTP

Security
Client folder logon, encryption of logon name and password during transmission

Scan resolution
100 pi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Search for client folders
Supported

Scan to folder file types
Searchable PDF, single-page JPEG, single-page PDF, single-page PDF/A, single-page TIFF, single-page high compression PDF, searchable PDF, multi-page multi page PDF/A, multi-page TIFF, multi-page high compression PDF

Scan dạng TWAIN

Scan mode
Standard, Photo, OCR, Filing

Scan speed
A4 LEF, 200 dpi, 300 dpi
46 ipm—simplex
92 ipm—duplex

Scan resolution
100–1,200 dpi

Các kiểu fax

G3 fax, Internet fax, IP fax, LAN-Fax, Paperless fax, Direct SMTP fax

Mạch fax

PSTN, PBX

Độ tương thích

ITU-T (CCITT), G3

Tốc độ của bộ phát tín hiệu fax

2,400 bps–33.6 Kbps—G3, standard with automatic shift down

Phương thức nén

MH, MR, MMR

Độ phân giải fax

200 x 100 dpi, 8 x 3.85 lines/mm—Standard Mode
200 x 200 dpi, 8 x 7.7 lines/mm—Detail Mode
8 x 15.4 lines/mm, 16 x 15.4 lines/mm—Super Fine Mode

Tốc độ truyền tín hiệu fax G3

Approximately 3 seconds

Dung lượng bộ nhớ SAF

Standard
4 MB—approximately 320 pages

Optional
60 MB—approximately 4,800 pages

Sao lưu bộ nhớ fax

1 hour

Quay số nhanh

2,000 numbers

DataOverwriteSecurity System (DOSS) - Chuẩn: Yes—optional HDD unit required
Mã hoá: Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
eMMC encryption
Xác thực: User authentication—Windows and LDAP via Kerberos, Basic, User Code
802.1x wired authentication
Wireless LAN security (WEP, WPA2, 11i)
IPv6
Quota setting
WiFi Protected Setup (WPS) support

Windows: Windows 8.1
Windows Server 2012
Windows Server 2012 R2
Windows 10
Windows Server 2019
Windows 11
Windows Server 2022
Macintosh: OS X Native v10.15 or later—PostScript 3 only
Unix: Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—v7.1, v7.2
SAP: Environment—R/3, S/4
Platforms—SAP R/3 (release versions 3.0 and higher), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA
Page description language—PCL
Character sets—Latin-1, Latin-2, Unicode
Supported features—Available for the printing of all SAP document types (SAPScript, Smartforms, ABAP)
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5, MSI, USPS POSTNET, EAN/UPC
OCR fonts—OCR A, OCR B

Tiêu chuẩn: @Remote Embedded
Web Image Monitor
Tùy chọn: RICOH Streamline NX v3
GlobalScan NX
Enhanced Locked Print NX v2 and FlexRelease Server v2
FlexRelease CX
Card Authentication Package v2 and Enterprise Server v2
Device Manager NX Lite and Accounting
Printer Driver Packager NX
RICOH @Remote Connector NX
RICOH Print Management Cloud
Ứng dụng di động: RICOH Smart Device Connector

Nguồn điện: 220–240 V, 50/60 Hz—Asia Pacific
110 V, 60 Hz—Taiwan
Mức độ tiêu thụ điện: 1,780 W—maximum power, guaranteed
528.8 W—printing, nominal
26.4 W—Ready Mode, nominal
0.45 W—Energy Saver Mode (Sleep Mode), nominal
Mức tiêu thụ điện năng (TEC): 0.38 kWh
Thời gian khởi động lại: 32 seconds or less—Quick Mode
60 seconds or less—Without Quick Mode
Thời gian phục hồi: 8.8 seconds or less—Energy Saver Mode (Sleep Mode)
Nhãn xanh: Thai Green Label Scheme, Hong Kong Energy Efficiency Labelling Scheme
