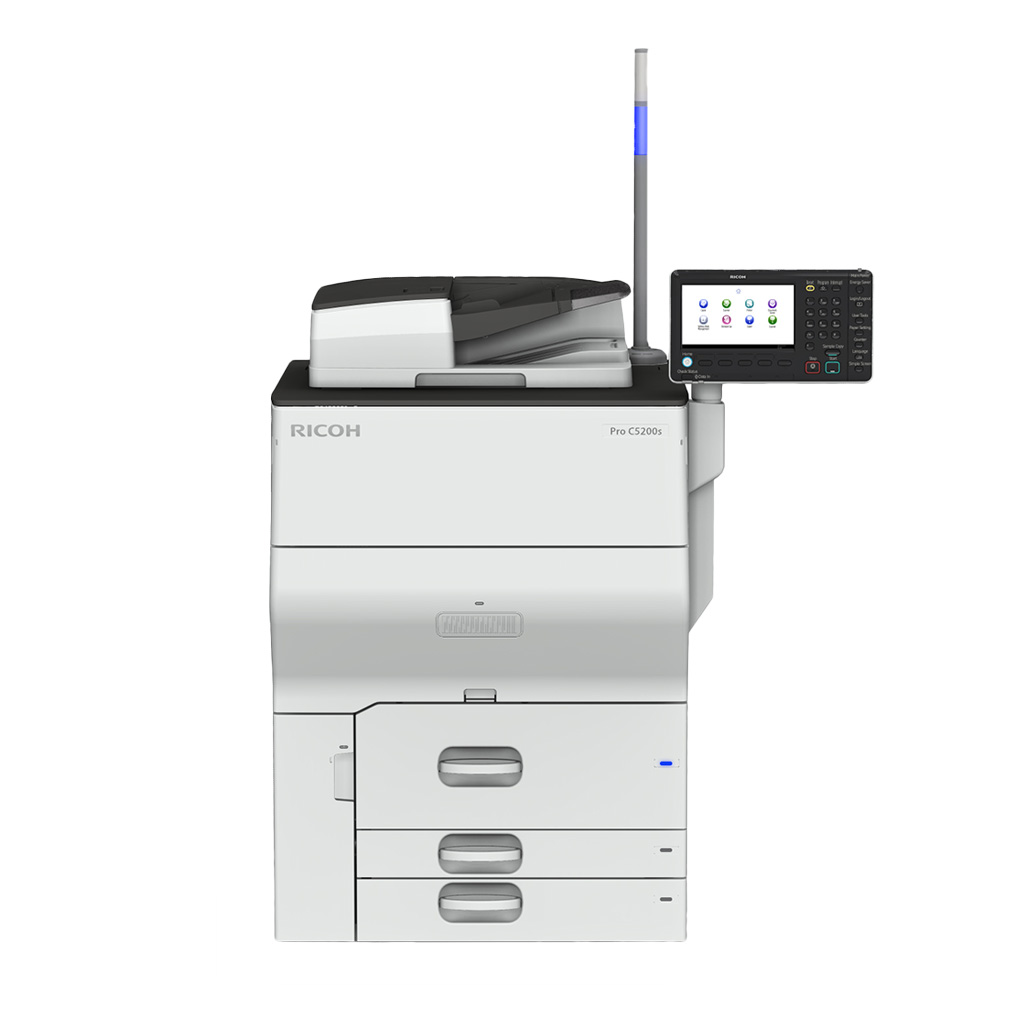

Pro C5210S Colour production printer

Prints up to 80 ppm
Up to 360 g/m²
8,250-sheet max input

Stay ahead of the competition, with short run colour printing that’s beautiful and affordable

It’s small but powerful – delivering high quality, high-volume output in a space saving production printer. The Pro C5210s is the cost effective device for printing vibrant documents, ideal for creative departments, internal print rooms and commercial printers.

Light production that’s affordable

It’s now easier to print it yourself, from brochures to business cards, flyers to banners. Instilled with Ricoh innovation to deliver richer, denser colours and breathtaking print results. Feed heavier and textured stocks without sacrificing quality.

Surprisingly compact
High volume, high-quality output with a space-saving footprint
Abundant paper capacity
Increase paper capacity to 8,250 sheets for less reloading
Choice of controller
Use the embedded Ricoh controller or opt for an EFI Fiery controller
Find what you need
Use the Paper Library to configure jobs for specific media and stocks
Scan and send
Scan colour jobs and share them straight from the device for fast review and approval

Download PDF brochure

Finish it off in style

Improve turnaround times and increase your print capacity. Ricoh’s line of finishers make it easy to print more types of documents, quickly. Create professional saddle-stitched booklets with minimal effort using the booklet maker, folder and trimmers. Fold media in multiple styles to give customers more options. Collate, bind, punch, trim and add or close rings with minimal manual intervention.

Request a quote and empower your digital workplace with us

Whatever your business needs there’s a Ricoh specialist ready to help create the ideal solution to improve your work life. Hit the ‘Request a quote’ button, complete the form with your details and we’ll contact you within 24 hours to discuss your requirements.

Prints up to 80 ppm
Up to 360 g/m²
8,250-sheet max input

Specifications

Các tính năng: Copy, print, scan
Màu sắc: Yes
Bộ điều khiển máy in - chuẩn: GWNX
Bộ điều khiển máy in - tùy chọn: Fiery colour controller E-24B
Fiery colour controller E-44B
HDD: 640 GB (320 GB x 2)
240 GB space available on each
Máy chủ chứa tài liệu: 170 GB HDD capacity—shared with other applications
3,000 stored documents maximum
3,000 pages per document
15,000 pages of all documents
1–180 days storage, or no limit
Bộ xử lý: 1.91 GHz
Bộ nhớ - chuẩn: 4 GB

Kích thước vật lý (Rộng x Sâu x Cao) - phần máy chính: 799 x 880 x 1,648 mm
Kích thước vật lý (Rộng x Sâu x Cao) - các phần khác: 680 x 565 x 180 mm—SPDF (standard)
352 x 540 x 625 mm—4,400-sheet LCT RT4020 (A4)
869 x 730 x 658 mm—2,200-sheet LCT RT4050 (A3)
520 x 514 x 207 mm—1,000-sheet A3 tray Type M26 for tandem tray
350 x 220 x 360 mm—50-sheet multi-bypass banner sheet tray Type S6
516 x 718 x 135 mm—250-sheet banner sheet guide tray Type S6 for A3 LCT
250 x 500 x 170 mm—500-sheet copy tray Type M26
657 x 730 x 980 mm—3,000-sheet finisher SR4120 (65-sheet stapler)
657 x 730 x 980 mm—2,000-sheet booklet finisher SR4130 (65-sheet stapler)
996 x 730 x 1,126 mm—3,000-sheet finisher SR5070 (100-sheet stapler), excluding projections and with all extendable trays closed
996 x 730 x 1,126 mm—2,500-sheet booklet finisher SR5080 (100-sheet stapler), excluding projections and with all extendable trays closed
500 x 600 x 600 mm—Cover interposer CI4040
540 x 730 x 1,270 mm—2-tray cover interposer CI4020
540 x 600 x 660 mm—9-bin mailbox CS4010
330 x 980 x 725 mm—Buffer pass unit Type S6
470 x 980 x 730 mm—Multi-folding unit FD4000
170 x 990 x 730 mm—Decurler unit DU5020
124.3 x 362.5 x 294.6 mm—Fiery E-24B controller
212 x 483 x 489 mm—Fiery E-44B controller
Trọng lượng - thân máy chính: 262 kg or less
Trọng lượng - các phần khác: 14 kg or less—SPDF (standard)
20 kg or less—4,400-sheet LCT RT4020 (A4)
82 kg or less—2,200-sheet LCT RT4050 (A3)
11 kg or less—1,000-sheet A3 tray Type M26 for tandem tray
1.1 kg or less—50-sheet multi-bypass banner sheet tray Type S6
1.98 kg or less—250-sheet banner sheet guide tray Type S6 for A3 LCT
2.2 kg or less—500-sheet copy tray Type M26
38 kg or less—3,000-sheet finisher SR4120 (65-sheet stapler)
53 kg or less—2,000-sheet booklet finisher SR4130 (65-sheet stapler)
56 kg or less—2,000-sheet booklet finisher SR4130 (65-sheet stapler) with punch unit
112 kg or less—3,000-sheet finisher SR5070 (100-sheet stapler)
112 kg or less—2,500-sheet booklet finisher SR5080 (100-sheet stapler)
12 kg or less—Cover interposer CI4040
45 kg or less—2-tray cover interposer CI4020
15 kg or less—9-bin mailbox CS4010
30 kg or less—Buffer pass unit Type S6
92 kg or less—Multi-folding unit FD4000
30 kg or less—Decurler unit DU5020
5.5 kg—Fiery E-24B controller
19.5 kg—Fiery E-44B controller

Lượng in trung bình hàng tháng: 30,000 prints
Công suất trung bình công bố: 20,000–100,000 prints (recommended)
Công suất tối đa hàng tháng: 150,000 prints
Tuổi thọ máy: 9,000,000 prints or 5 years, whichever comes first
Chu kỳ nhiệm vụ: 300,000 prints per month
Tỷ lệ màu: 60%

Năng suất hộp mực

33,000 copies per 1,020 g bottle—black
24,000 copies per 1,020 g bottle—cyan, yellow
24,000 copies per 1,099 g bottle—magenta

94,000 sheets per 1,000 g waste toner bottle

Note: All consumable yields are measured with the A4/8.75% coverage chart, based on 20 pages per job and 80% duplex.

5,000 staples per Type M cartridge for finisher SR5070/SR5080—normal staple
5,000 staples per Type V cartridge for finisher SR4120/SR4130—normal staple
2,000 staples per Type W cartridge for finisher SR4130—saddle stitch staple
5,000 staples per Type U cartridge for finisher SR5080—saddle stitch staple

5 cartridges per Type M refill for finisher SR5070/SR5080—normal staple
3 cartridges per Type V refill for finisher SR4120/SR4130—normal staple
4 cartridges per Type W refill for finisher SR4130—saddle stitch staple
2 cartridges per Type T refill for finisher SR5080—saddle stitch staple

Dung lượng giấy đầu vào chuẩn (tờ)

3,850

Dung lượng giấy đầu vào tối đa (tờ)

8,250

Dung lượng giấy đầu ra chuẩn (tờ)

Not available

Dung lượng giấy đầu ra tối đa (tờ)

3,250

Cấu hình giấy đầu vào - chuẩn

2,500-sheet tandem input tray, 2 x 550-sheet paper input trays, 250-sheet bypass tray, 100-sheet SPDF, duplex unit

Cấu hình giấy đầu vào - tùy chọn

4,400-sheet LCT RT4020 (A4), B4 tray Type M2 for LCT RT4020 (A4), 2,200-sheet LCT RT4050 (A3), A3 tray Type M26 for tandem tray, Multi-bypass banner sheet tray Type S6, Banner sheet guide tray Type S6 for A3 LCT

Cấu hình giấy đầu ra - chuẩn

Not available

Cấu hình giấy đầu ra - tùy chọn

Copy tray Type M26, Finishers SR4120/SR5070, Booklet finishers SR4130/SR5080, SR4000/SR5000 series banner sheet output tray, Cover interposer CI4040/CI4020, 9-bin mailbox CS4010, Cooling fan Type M26, Output jogger Type M25, Buffer pass unit Type S6, Multi-folding unit FD4000, Decurler unit DU5020

Cấu hình giấy đầu ra - bên thứ ba

Plockmatic PBM 350/PBM 500, GBC StreamPunch Ultra

Loại giấy hỗ trợ

Standard paper input tray 1, A3 tray Type M26, LCT RT4020 (A4), Cover interposer CI4020, Cover interposer CI4040
Plain paper, recycled paper, coloured paper, letterhead, pre‑printed paper, pre‑punched paper

Standard paper input trays 2 and 3
Plain paper, recycled paper, coloured paper, letterhead, pre‑printed paper, pre‑punched paper, tab stock, envelopes

Note: The optional Tab sheet holder is required to feed tab sheets from trays 2 and 3.

Bypass tray, LCT RT4050 (A3)
Plain paper, recycled paper, coloured paper, letterhead, pre-printed paper, pre-punched paper, tab stock, label, glossy/matte coated paper, textured, metallic, synthetic media, envelopes, OHP, transparencies, clear file

Note: Some supported paper types can be fed but quality is not guaranteed.

Kích thước giấy tối đa

13" x 19.2"

Định lượng giấy (g/m2)

52.3–360

Nguồn cấp giấy không giới hạn

Supported

Giao diện - chuẩn

10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB 2.0 Type A—2 rear, 1 on the operation panel
USB 2.0 Type B
SD slot—on the operation panel

Note: Gigabit Ethernet is available as standard, but it needs to be selected by the user.

Giao diện - tùy chọn

IEEE 1284/ECP
IEEE 802.11a/b/g/n (Wireless LAN)

Giao thức mạng - chuẩn

TCP/IP (IPv4, IPv6)

Hỗ trợ MIB

Standard
MIB-II (RFC1213)
Host Resources MIB (RFC1514)
Printer MIB (RFC1759)
Printer Port Monitor MIB

Private
Ricoh original MIB

Tốc độ sao chụp

80 cpm—A4 LEF

Độ phân giải sao chụp

600 x 600 dpi—4 bit

Kích thước bản gốc

From SPDF
B6–A3 SEF—single-sided
1,260 mm for banner page
B5–A3 SEF—duplex

Chọn số lượng

1–9,999

Giữ lệnh sao chụp

8 jobs

Đặt lệnh xử lý trước

8 jobs

Chương trình cho lệnh xử lý

25 programs

Phạm vi thu-phóng

25%–400%, in 1% steps

Tỷ lệ phóng to

115%, 122%, 141%, 200%, 400%

Tỷ lệ thu nhỏ

93%, 87%, 82%, 71%, 61%, 50%, 25%

Điều chỉnh mật độ ảnh

Automatic selection, manual selection—7 levels

Điều chỉnh mật độ ảnh

Automatic or manual selection

Cài đặt loại bản gốc sao chụp

Auto text and photo separation (default), photo—printed, glossy, copied
Text, Map, Generation, Highlight pen, Inkjet

Chế độ màu

Options
Black and white, single colour, two colour, full colour, Automatic Colour Selection; default black and white

Single colour
12 colours x 4 density—single colour preset; default red
15 colours x 4 density—user selection

Two colour
Black and other colour, red and black

Chọn giấy

Auto Paper Selection (APS)—default
1st tray, 2nd tray, 3rd tray, bypass tray—standard
A4 LCT RT4020, A3 LCT RT4030—optional

Sao chụp hai mặt

Single-sided to duplex, duplex to duplex, book to duplex, front and back cover to duplex, duplex to single-sided

Sao chụp sách

Booklet, magazine, layout and booklet

Sao chụp liên tục

Book to single-sided, duplex to single-sided

Sao chụp kết hợp

2, 4, or 8 pages into 1 single-sided sheet
1, 2, or 4 duplex pages into 1 single-sided sheet
4, 8, or 16 pages into 1 duplex sheet
2, 4, or 8 duplex pages into 1 duplex sheet

Ngắt sao chụp

Supported

Tự động đổi khay giấy

Supported; default off

Thư viện giấy

Supported

Mẫu pattern ngăn sao chép

Supported

Đánh số Bates

9 digits without zero suppression—zero suppression and the number of digits must be set in SP Mode

Mã người dùng

1,000 user codes, 8 digits in each code

Tờ bìa

Front and back covers—copy or blank; default copy

Tờ đệm

Supported—user can choose to copy or not copy to slip sheet

Xếp theo mục

Supported—up to 100 chapters

Đóng ghim

Supported—with finisher

Xếp chồng điện tử

Supported—with finisher

Phân loại điện tử

Rotate sort—supported
Shift sort—supported without finisher
Without shift sort—supported without finisher

Điều chỉnh căn lề/xóa lề

Centring—supported
Margin and scan position—0–30 mm in 1 mm steps
Creep—0–99 mm in 1 mm steps
Erase centre and border—2–99 mm in 1 mm steps

Điều chỉnh hình ảnh

Sharpen/soften—7 levels
Contrast—9 levels
Background density—9 levels
Under Colour Removal (UCR)—9 levels
Text and photo separation sensitivity—9 levels
Colour erase sensitivity—5 levels

Tạo hình ảnh

Repeat, double copy, mirror, positive/negative, erase inside—5 parts, erase outside—1 part

Sáng tạo màu sắc

Colour conversion—supported, maximum 4 colours selectable from 12 preset, black, or 15 user colours
Colour erase—supported
Colour overlay—supported

Tem

User stamp—4 stamps
Date stamp—5 styles
Page numbering—6 styles
Preset stamp—8 stamps

Xoay chiều ảnh

Supported

Các tính năng sao chụp khác

Automatic Colour Calibration, Auto start, Colour balance adjustment, Colour balance program, Non-standard paper size finishing support, Sample copy, Unauthorised copy prevention

Tốc độ in màu

80 ppm—A4 LEF

Tốc độ in trắng đen

80 ppm—A4 LEF

Quá trình in

4-drum dry electrostatic transfer system with internal transfer belt

Công nghệ in

Vertical-cavity surface-emitting laser (VCSEL)

Sấy

Oil-less belt-fusing method

Phát triển mực in

PxP-EQ toner
Polymerisation

Độ phân giải in

1,200 x 4,800 dpi

Ngôn ngữ mô tả trang (PDLs)

Standard
PCL 5c, PCL 6, PDF

Optional
Adobe PostScript 3, IPDS

Độ phân giải theo trình điều khiển in

PCL 5c
300 x 300 dpi¹—1-bit, black and white
600 x 600 dpi—1-, 2-, and 4-bit

PCL 6, PostScript 3
600 x 600 dpi—1‑, 2‑, and 4‑bit
1,200 x 1,200 dpi—1‑ and 2‑bit

XPS
600 x 600 dpi—1‑, 2‑, and 4‑bit
1,200 x 1,200 dpi—1‑bit

IPDS¹
300 x 300 dpi, 600 x 600 dpi—1‑bit

¹—Supports black and white printing only

In hai mặt

Standard

In từ máy chủ

Host Print Transform (HPT), Genuine Intelligent Printer Data Stream (IPDS)—optional

In bì thư

Supported—standard input trays 2 and 3 paper, bypass tray, LCT RT4050 (A3)

Bộ font chữ

PCL
45 scalable fonts, 13 international fonts

PostScript 3
136 Roman

IPDS
108 Roman

Note: The international fonts include Cyrillic (Russian), Greek, Hebrew, and Arabic.

In từ USB/thẻ nhớ SD

Supported—GWNX only

Vùng in được tối đa

323 x 480 mm

Note: Configurable in SP Mode up to 1,260 mm in feeding direction.

Bộ điều khiển Fiery

Fiery colour controller E-24B or Fiery colour controller E-44B—optional

Printer drivers—standard
PCL 5c, PCL 6, PostScript 3

Resolution
PCL 5c
600 x 600 dpi—1-bit

PCL 6, PostScript 3
1,200 x 1,200 dpi—2-bit

Fonts
PCL
80

PostScript 3
138

Fiery menu via operation panel
Supported

2-character controller panel
Supported

Supported file formats
PDF, TIFF, JPEG, EPS

Print from Media
Supported using the USB/SD slot at the front of the Fiery colour controllers

Note: Print from Media replaces the Print from USB/SD feature available with GWNX.

Variable data printing (VDP)
Fiery E-24B controller
Fiery FreeForm v1 and 2.1

Fiery E-44B controller
PPML v3
Fiery FreeForm v1 and 2.1
PDF/VT-1 and PDF/VT-2

Note: Creo VPS is available from EFI but not supported by Ricoh.

Tốc độ scan

A4 LEF
Single-sided
120 ipm—200 x 200 dpi, 300 x 300 dpi, 1-bit

Duplex
220 ipm—200 x 200 dpi, 300 x 300 dpi, 4-bit

Phương pháp scan

Scan to USB/SD, Scan to email, Scan to folders (SMB, FTP), Scan to PDF/A, Scan to searchable PDF

Note: Optional OCR unit is required to support Scan to searchable PDF.

Scan màu

Standard

Chế độ scan

Black and white
Text, text/line art, text/photo, photo, greyscale

Colour
Text/photo, glossy photo, Automatic Colour Selection

Quy trình scan

Flatbed with moving 3-line Charged Coupled Device (CCD) array image scanning

Độ phân giải scan

100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Tự động xác định cỡ giấy

Platen glass
A5 SEF–A3 SEF, B5 SEF–B4 SEF

Note: SP Mode adjustment is required for A5 SEF.

SPDF
A5 SEF–A3 SEF, B5 SEF–B4 SEF

Note: Some supported paper sizes need to be configured in SP Mode.

Vùng scan

297 mm—main scan
432 mm—sub-scan

Hỗ trợ sRGB

Supported

Các phương pháp nén khi scan

Black and white
1-bit—JBIG2 (PDF), JPEG (greyscale), MH, MR, MMR

Colour
JPEG

Kích cỡ bản gốc

A3

Điều chỉnh mật độ ảnh

Automatic selection, manual selection—7 levels

Truyền tín toàn cầu

Simultaneous transmission of scan jobs

Tách bản scan từ tập sách

Supported

Scan theo định dạng tệp

Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A
Single- and multi-page high compression PDF

Hỗ trợ scan theo định dạng tệp

Single- and multi-page TIFF
Black and white 1-bit—MH, MR, MMR—compression on
Black and white 1-bit, black and white greyscale, full colour—compression off

Single-page JPEG
Black and white greyscale, full colour—compression on

Single- and multi-page PDF, PDF/A
Black and white 1-bit—MH, MR, MMR, JBIG2
Black and white greyscale JPEG, full colour JPEG—compression on
Black and white 1-bit, black and white greyscale, full colour—compression off

Single- and multi-page high compression PDF
Black and white greyscale, full colour—JPEG, JPEG 2000—compression on

Scan đến email

Protocols
SMTP gateway, TCP/IP

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

File type
Single page
TIFF, JPEG, PDF, PDF-A, high compression PDF

Multi-page
TIFF, PDF, PDF-A, high compression PDF

Scan đến email - các tính năng khác

Scan to email size
128–102,400 KB—with restriction
725 MB—without restriction

Maximum email addresses per send
500—from HDD
100—direct input
100—via LDAP

Email addresses stored in HDD
Maximum email addresses—2,000
Maximum registered group addresses—100 groups, 500 addresses per group
Maintain email addresses—via operation panel, Web Image Monitor
Search method—by name, email address

Body message
Manual input—maximum 80 characters over 5 lines
User pre-registered—maximum 20 characters per name of pre-registered body message
Preset message—This e-mail includes attached file sent from <device name>.

Input subject
Manual input—maximum 128 characters
User pre-registered—22 subjects—maximum 20 characters per name

LDAP search
Supported

Input file name
Supported

Simultaneous transmission
Maximum 550 destinations

Attention
To, Cc, Bcc

Program registration
Up to 25 programs

Divide and send
Divide by page or size; default by size

Note: If the sent file is larger than the email size restriction, it will be divided into multiple sends. The size restrictions of the email recipient may also impact the send.

Resend
Yes, No; default Yes

Scan đến thư mục

Protocols
SMB, FTP

Security
Client folder logon, transmission encryption of logon name and password

Resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Search for client folders
SMB—browsing directly to the designated folder
FTP—by folder name

Scan đến thư mục - các tính năng khác

Client folder addresses stored in HDD
Maximum registered folder addresses—2,000
Maintain folder addresses—via operation panel, Web Image Monitor

Destination folder address input via operation panel
Supported

Homefolder over LDAP
Supported

Maximum client folders/PCs per send
50 folders

Simultaneous transmission
550 destinations maximum

Maximum group addresses
500 destinations from a total of 50 folders

Maximum file size
Default
2,000 MB

When combined with Scan to email
128–102,400 KB; default 2,048 KB—with restriction
725 MB—without restriction

Note: File size depends on the selected Scan to email file size restriction.

Input file name
Supported

Program user settings
Up to 25 programs

Resend
Yes, No; default Yes

Scan dạng TWAIN - các tính năng khác

Image adjustment

Brightness, Contrast, Threshold, Gamma Adjustment, Half‑tone Pattern

Endorse
Supported

Stamp originals
Date, Page number, Text

Supported operating systems
Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2

Note: TWAIN scanning operates in 32-bit compatibility mode on 64-bit operating systems

Scan dạng TWAIN

Scan mode
Standard, Photo, OCR, Filing

Scan resolution
Black and white, greyscale, full colour
100–1,200 dpi

Note: Maximum scan resolution is dependent on the size of originals.

Scan Fiery

Scan resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Scan speed—A4, 200 dpi
50 ipm

Scan area
297 x 432 mm

Original size
A5–A3, B5–B4

Custom paper size
297 x 432 mm

File format
TIFF, JPEG, PDF

Scan type
Black and white
Text/Line Art, Text, Text/Photo, Photo—default Text/Line Art

Colour
Text/Photo, Glossy photo

Side
Single, Top/top, Top/bottom—default single

Orientation
Portrait, landscape; default portrait

Destination
Hold queue, Mailbox, Email, FTP, Internet fax, SMB; default Hold queue

Scann đến email với Fiery

Registered email addresses in address book
1,000

Maximum email addresses per send
Address book
24,000 KB—for total size of To and Cc recipients

LDAP
24,000 KB—for total size of To and Cc recipients

Email to scan mode
Attachment
Attachment/URL—when a URL is specified, the email will be sent with the URL linked to the HDD of the Fiery server where the scanned data is stored

Format
TIFF, JPEG, PDF

Scan đến thư mục với Fiery

Protocols
SMB, FTP

FTP server
Server name or IP address, directory, and the port number can be configured

Timeout
30 seconds—configurable 0–999 seconds

Authentication
User name, password can be configured

Proxy server setup
FTP server configuration is available

SMB setup
Network password and domain name can be configured

Các tính năng scan khác

Batch scan, Distributed Scan Management (DSM), Drop out colour send, Encrypted PDF transmission, Image rotation, Generic scan driver for TWAIN, Mixed size mode, PDF digital signature, Preview before transmission, SADF/batch mode, WSD scanner, Reduce/enlarge scan

Bảo vệ vấn đề sao chụp trái phép: Copy and print
DataOverwriteSecurity System (DOSS) - Chuẩn: Yes
DataOverwriteSecurity System (DOSS) - Tùy chọn: Data Overwrite Security (DOS) unit Type M19—available for customers who require their devices to comply with ISO 15408 Common Criteria certification
Mã hoá: HDD, PDF, Secure print encryption
Address book, authentication password, Locked print password encryption
Encryption of data sent via Scan to email (S/MIME)
Xác thực: 802.1x wired authentication
Administrator authentication
IEEE 802.11i security (WPA2)
IPv6
Network user authentication
Quota setting
User authentication—Windows and LDAP via Kerberos, basic, user code
Wi-Fi Protected Setup (WPS) support
SP Mode password change
DHCP Option 60 and 77
Các tính năng bảo mật khác: IP filtering—access control
IPsec communication
Network protocol on/off
SNMPv3 support
SMTP over SSL communication
Secure Sockets Layer (SSL)
Transport Layer Security (TLS)
Mandatory Hold print
Mandatory security information print
Password protected document server mailbox
PDF digital signature
Secure PDFs can be printed directly from USB/SD by logging on and entering the password on the alphanumeric keypad
Secure print

Windows: Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Hỗ trợ Cintrix: Presentation Server 4.5
XenApp 5.0
Macintosh: OS X Native v10.2 or later—PostScript 3 only
Unix: Sun Solaris
HP-UX
Red Hat Linux
SCO Open Server
IBM AIX
SAP: Environment—R/3
IBM: AS/400, iSeries—OS/400
Các hệ điều hành khác được hỗ trợ: Fiery system requirements

Windows operating systems
These Windows versions (with latest service packs) are supported for printer drivers and Fiery applications:
Windows Vista—32- and 64-bit
Windows 7—32- and 64-bit
Windows Server 2008—32- and 64-bit
Windows Server 2008 R2—64-bit
Windows Server 2012—64-bit
Windows Server 2012 R2—64-bit
Windows 8—32- and 64-bit
Windows 8.1—32- and 64-bit
Windows 10—32- and 64-bit

Macintosh operating systems
These Mac OS versions are supported for printer drivers and Fiery applications:
Mac OS v10.6.x, 10.7.x, v10.8.x, v10.9.x, v10.10.x

HDD—for printing and utilities except Command WorkStation
Windows—1 GB free space available (2 GB recommended)
Mac OS X—500 MB free space available (1 GB recommended)

Memory (RAM)—for printing and utilities except Command WorkStation
Windows—500 MB (2 GB recommended)
Mac OS X—500 MB (1 GB recommended)

Networking protocols
Windows—TCP/IP
Mac OS X—TCP/IP, EtherTalk, Bonjour

WebTools
Java-enabled Web browser:
Windows—Internet Explorer 8 or later, Firefox, Chrome
Mac OS—Safari v5.0 or later, Firefox, Chrome

Note: Due to frequent updates to Java and Microsoft Internet Explorer, support cannot be guaranteed for all versions, use the versions specified for best results. On Mac OS, some versions of Firefox may not allow you to enter passwords into Configure. If this occurs, use Safari instead.

Command WorkStation
Windows
1.0 GHz or greater Pentium 4 processor

Mac OS
Macintosh G5, 1.6 GHz or greater
1 GB RAM
3 GB HDD available for application installation
A monitor that supports 16-bit colour at a minimum resolution of 1,024 x 768 pixels
TCP/IP networking protocol installed

SeeQuence (Impose and Compose) on Command WorkStation
In addition to requirements for Command WorkStation:
Licence activation for every client workstation
Acrobat/PitStop software

Tiêu chuẩn

Device management and monitoring
@Remote
Device Manager NX
Device Software Manager
Web Image Monitor

Workflow solutions
TotalFlow Prep

Software development
Device SDK

Nguồn điện: 220–240 V, 10–12 A, 50–60 Hz
Mức độ tiêu thụ điện: 2,400 W—maximum power
Mức độ tiêu thụ điện - các tùy chọn: 50 W or less—4,400-sheet side LCT RT4020 (A4)
85 W or less—2,200-sheet LCT RT4050 (A3)
67 W or less—3,000-sheet finisher SR4120 (65-sheet stapler)
67 W or less—2,000-sheet booklet finisher SR4130 (65-sheet stapler)
150 W or less—3,000-sheet finisher SR5070 (100-sheet stapler), excluding peak consumption
150 W or less—2,000-sheet booklet finisher SR5080 (100-sheet stapler), excluding peak consumption
43 W or less—Cover interposer CI4040
50 W or less—2-tray cover interposer CI4020
240 W or less—Multi-folding unit FD4000
200 W or less—Buffer pass unit Type S6
30 W or less—Decurler unit DU5020
180 W—Fiery E-24B controller
350 W—Fiery E-44B controller
Thời gian khởi động lại: 120 seconds or less
Mức công suất âm thanh: Mainframe
57 dB (A)—standby
71.4 dB (A)—operating

Full system
75.4 dB (A)—operating
Mức phát thải: 4 mg/h—dust
1.25 mg/h—formaldehyde
1.5 mg/h—ozone, black and white
3 mg/h—ozone, colour
1 mg/h—styrene, black and white
1.8 mg/h—styrene, colour
Giảm các vật liệu nhạy cảm với môi trường: 100% lead-free solder used in PCBs—lead
100% chrome-free steel plates—hexavalent chromium
0%—cadmium
0%—PVC
0%—PBB/PBDE
Tiêu chuẩn tiết kiệm năng lượng: Energy Star v1.2—with GWNX and EFI Fiery controllers
Nhãn xanh: Blue Angel Mark (BAM)
Chuẩn an toàn: EN60950-1
IEC60950-1
CNS14336
GB4943.1
Tiêu chuẩn tương thích điện từ (EMC): EN55022 Class A
EN55024
EN55011
EN61000-3-2, EN61000-3-3
EN301489-1
AS/NZS CISPR22, CISPR11
CNS13438
GB9254
GB17625.1
Xác định các thành phần nhựa: All plastic components that weigh more than 25 g are identified in accordance with ISO 11469 standards.
Chuẩn laser: EN60825-1

News & Events

Keep you up to date with Ricoh

News

20 Thg8

On-demand Webinars

17 Thg12

30-Day FREE Trial for Ricoh Smart Backup Service!

Events
