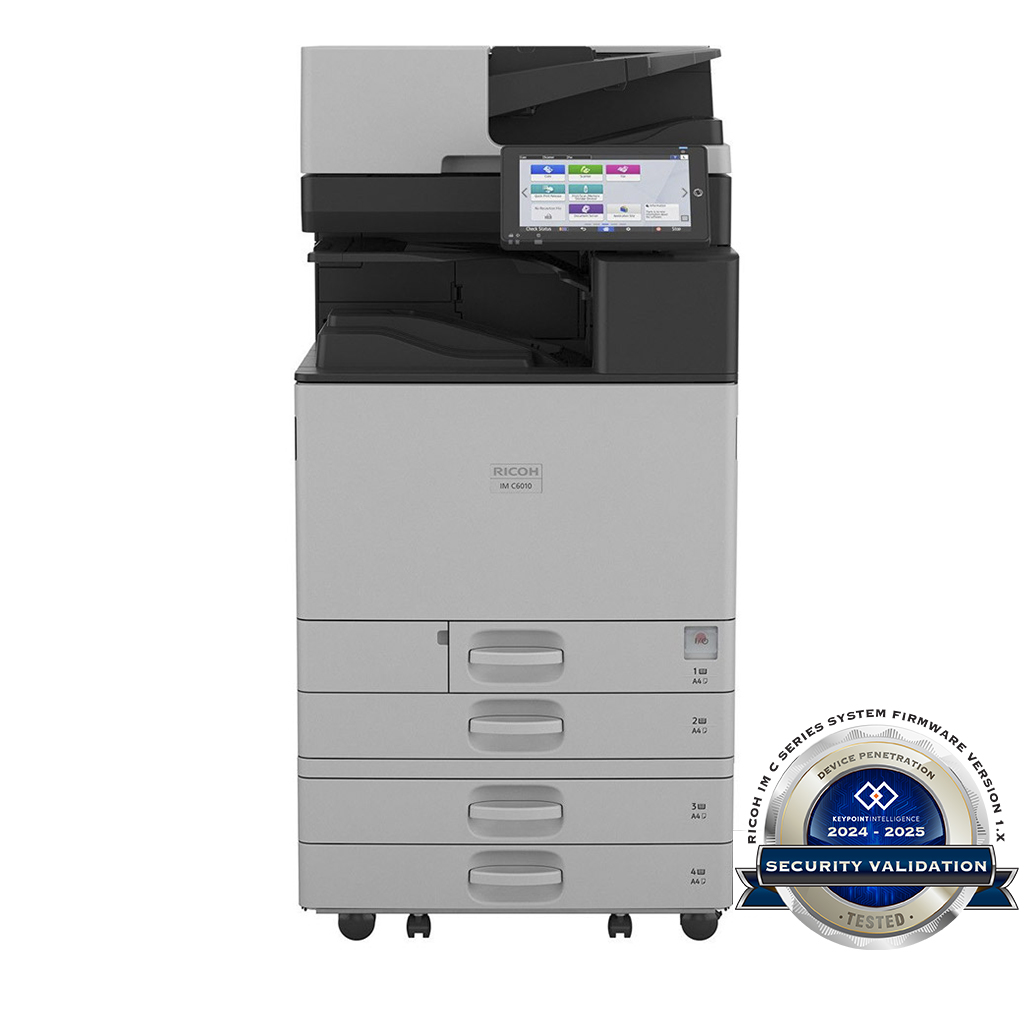

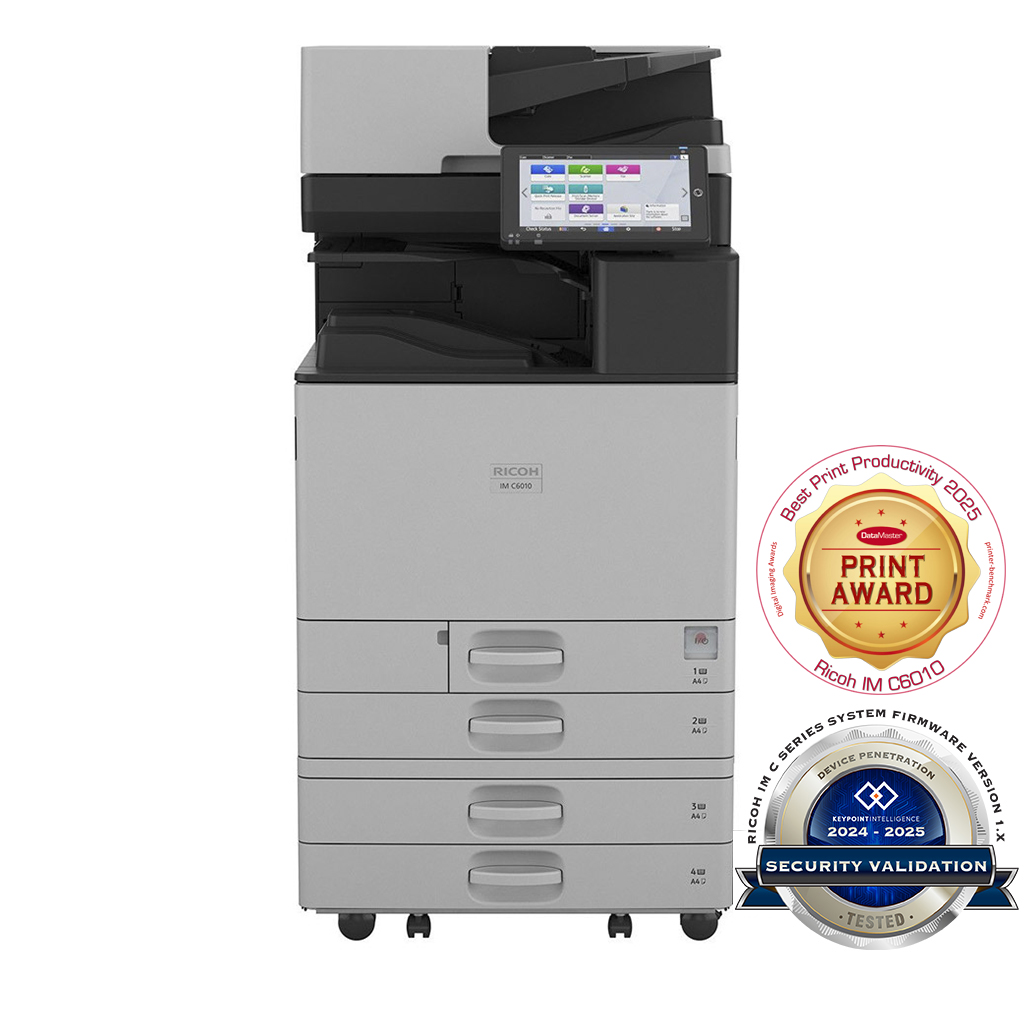

    IM C6010

    IM C6010

    The IM C6010 is an intelligent MFP providing features to meet new digitally-enabled workplace demands, security and compliance challenges, as well as an increased business focus on environmental sustainability.

    • Supports integrated digital workflow processes
    • Latest security features
    • Stay up to date with RICOH Always Current Technology
    • Save costs by reduced energy consumption
    • Outer mainframe uses 50% post-consumer recycled materials

    The IM C6010 is equipped with the latest generation 10.1” Smart Operation Panel that provides improved responsiveness with capacitive touch panel technology. It also comes with more memory and is powered by an updated Android OS 10 with enhanced security features.

    The MFP also supports a range of optional accessories, including paper input and finishing options, that allow customers to produce quick, professional results.

    Page Keeper Type M52
    Supports SPDF as a double feed detection unit preventing more than one page from being scanned at a time.
    Paper Feed Unit PB3310
    Optional 1-tray paper feed unit that increases the paper capacity of the device.

    Capacity: 550 sheets
    Paper size: SRA3 (12.6” x 17.7”), 12” x 18” / DLT SEF–A6 SEF
    Paper weight: 60–300 g/m2
    Dimensions (W x D x H): 587 x 685 x 120 mm
    Weight: 12 kg
    Power consumption: 19 W
    Notes:
    By choosing this option the Caster Table Type M52 will be added to the configuration.
    Cannot be installed with LCIT PB3330,Paper Feed Unit PB3320,LCIT RT3050,Booklet Finisher SR3330,Finisher SR3320,Finisher SR3340,Booklet Finisher SR3350,Bridge Unit BU3100,Stapleless Unit Type M58,Punch Unit PU3080 EU,Punch Unit PU3080 NA,Punch Unit PU3110 EU,Punch Unit PU3110 NA
    Paper Feed Unit PB3310
    Paper Feed Unit PB3320
    Optional 2-tray paper feed unit that increases the paper capacity of the device.

    Capacity: 1,100 (2 x 550) sheets
    Paper size: SRA3 (12.6” x 17.7”), 12” x 18” / DLT SEF–A6 SEF
    Paper weight: 60–300 g/m2
    Dimensions (W x D x H): 587 x 685 x 247 mm; 668 x 755 x 247 mm—with tray extended
    Weight: 23 kg
    Power consumption: 21 W
    Notes:
    Cannot be installed with Caster Table Type M52,LCIT PB3330,Paper Feed Unit PB3310
    Paper Feed Unit PB3320 and PB3340
    LCIT PB3330
    Optional tandem Large Capacity Tray significantly increasing the capacity of the device.

    Capacity: 2,000 (2 x 1,000) sheets
    Paper size: A4 LEF
    Paper weight: 60–300 g/m2
    Dimensions (W x D x H): 587 x 685 x 247 mm; 670 x 755 x 247 mm—with tray extended
    Weight: 22 kg
    Power consumption: 15 W—with anti-humidity heater off
    Notes:
    Cannot be installed with Paper Feed Unit PB3320,Paper Feed Unit PB3310,Caster Table Type M52
    419376
    LCIT RT3050
    Optional side Large Capacity Tray significantly increasing the capacity of the device.

    Capacity: 1,650 sheets
    Paper size: A4 LEF, B5 LEF
    Paper weight: 60–300 g/m2
    Dimensions (W x D x H): 340 x 544 x 290 mm; 541 x 544 x 290 mm—with tray extended
    Weight: 10.5 kg
    Power consumption: 13 W
    Notes:
    Cannot be installed with Paper Feed Unit PB3310,Caster Table Type M52
    One of the following must also be selected: Paper Feed Unit PB3320,LCIT PB3330
    LCIT RT3050
    Caster Table Type M52
    Provides a base with casters (wheels) to easily move the device on a floor standing configuration.

    Dimensions (W x D x H): 668 x 723 x 76 mm
    Weight: 8.3 kg
    Notes:
    By choosing this option the Paper Feed Unit PB3310 will be added to the configuration.
    Cannot be installed with Paper Feed Unit PB3320,LCIT PB3330,LCIT RT3050,Booklet Finisher SR3330,Finisher SR3320,Finisher SR3340,Booklet Finisher SR3350,Bridge Unit BU3100,Stapleless Unit Type M58,Punch Unit PU3080 EU,Punch Unit PU3080 NA,Punch Unit PU3110 EU,Punch Unit PU3110 NA
    Caster Table Type M52
    Banner Paper Guide Tray Type M52

    Extension arm to hold long sheets (banners) on the bypass tray to prevent them from sliding and falling on the floor.

    Paper size: 12.6" x 17.7", SRA3, 12" x 18", 305 x 458 mm–A6 SEF
    Custom paper size: 90–320 mm (width), 148–1,260 mm (length)
    Paper weight: 128–230 g/m2

    Side Tray Type M52
    Provides an additional exit point if a finisher is not attached.

    Output to internal tray: 250 sheets (A4) or 125 sheets (B4)
    Output to left side: 125 sheets
    Paper size:
    Width: 90–320 mm, Length: 148–600 mm—output to internal tray
    Width: 90–320 mm, Length: 148–457.2 mm—output to left side
    320 x 1,260 mm—output to left side, configurable in SP Mode
    Paper weight: 52–300 g/m2
    Dimensions (W x D x H): 800 x 549 x 156 mm
    Weight: 4 kg
    Power consumption: 12 W
    Notes:
    Cannot be installed with Booklet Finisher SR3330,Finisher SR3320,Bridge Unit BU3100,Internal Shift Tray SH3090,Internal Multi-Fold Unit FD3020,Finisher SR3340,Booklet Finisher SR3350,Stapleless Unit Type M58,Punch Unit PU3080 EU,Punch Unit PU3080 NA,Punch Unit PU3110 EU,Punch Unit PU3110 NA
    Side Tray Type M52
    Internal Shift Tray SH3090
    Enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job.

    Capacity: 250 sheets (A4 or smaller), 125 sheets (B4 or larger)
    Paper size: 320 mm x 600 mm or smaller; 320 mm x 1,260 mm—configurable in SP Mode
    Paper weight: 52–300 g/m2
    Dimensions (W x D x H): 420 x 489 x 107 mm
    Weight: 1.4 kg
    Power consumption: 2 W
    Notes:
    Cannot be installed with Booklet Finisher SR3350,Booklet Finisher SR3330,Finisher SR3320,Bridge Unit BU3100,Side Tray Type M52,Finisher SR3340,Internal Multi-Fold Unit FD3020,Stapleless Unit Type M58,Punch Unit PU3080 EU,Punch Unit PU3080 NA,Punch Unit PU3110 EU,Punch Unit PU3110 NA
    Internal Shift Tray SH3090
    Bridge Unit BU3100

    Required when a mainframe is configured with an external finisher. Transports pages from the standard exit area into a finisher for inline stapling or hole punching.

    Dimensions (W x D x H): 412 x 466 x 143 mm
    Weight: 3.4 kg
    Power consumption: 12 W

    Notes:
    Cannot be installed with Internal Shift Tray SH3090,Internal Multi-Fold Unit FD3020,Side Tray Type M52,Paper Feed Unit PB3310,Caster Table Type M52
    One of the following must also be selected: Finisher SR3320,Booklet Finisher SR3330,Booklet Finisher SR3350,Finisher SR3340
    Bridge Unit BU3100
    1-Bin Tray BN3140
    Provides an additional output tray above the standard internal tray, optional bridge unit, optional internal shift tray, or optional internal finisher. Allows a user to separate print and fax output from copy.

    Paper capacity: 125 sheets
    Dimensions (W x D x H): 444 x 450 x 150 mm
    Weight: 1.4 kg
    1-Bin Tray BN3140
    Internal Multi-Fold Unit FD3020
    Offers four types of single-sheet folding within the original footprint as it is installed in the exit tray.

    Fold types: Z-fold, half-fold, letter fold-in, and letter fold-out
    Paper size: A3, B4, A4, B5, DLT, LG, LT, 8K, 8.5” x 13.4” (Oficio), 12”x 18”, 12.6” x 17.7” (SRA3)
    Paper weight: 52–220 g/m2
    Dimensions (W x D x H): 612 x 555 x 184 mm—without extended tray; 714 x 555 x 242 mm—with tray extended
    Weight: 16 kg
    Power consumption: 40 W
    Notes:
    Cannot be installed with Bridge Unit BU3100,Internal Shift Tray SH3090,Side Tray Type M52
    Internal Multi-Fold Unit FD3020
    Booklet Finisher SR3330
    Allows documents to be professionally finished as saddle-stitched booklets. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas. Offers optional hole punching.

    Capacity: 1,000 sheets
    Paper size: A3–A5 SEF，B6 SEF, A6 SEF, 12” × 18”, HLT—DLT SEF, SRA3, 13” x 19.2”, custom paper size—90 x 139.7–330.2 x 487.7 mm
    Paper weight: 52–169 g/m2—proof tray; 52–300 g/m2—shift tray
    Staple capacity: 2–50 sheets—normal staple; 15 sheets—saddle stitch staple
    Staple positions: top, bottom, 2 spots
    Staple paper weight: 52-105 g/m2
    Optional punch unit PU3080 available
    Dimensions (W x D x H): 575 x 620 x 960 mm—without extended tray; 660 x 620 x 960 mm—with extended tray
    Weight: 43.5 kg
    Power consumption: 35.4 W
    Notes:
    Cannot be installed with Booklet Finisher SR3350,Finisher SR3320,Internal Shift Tray SH3090,Caster Table Type M52,Paper Feed Unit PB3310,Finisher SR3340,Side Tray Type M52,Stapleless Unit Type M58,Punch Unit PU3110 EU,Punch Unit PU3110 NA
    One of the following must also be selected: Bridge Unit BU3100,Internal Multi-Fold Unit FD3020
    One of the following must also be selected: Paper Feed Unit PB3320,LCIT PB3330
    Booklet Finisher SR3330
    Finisher SR3320
    Offers both staple-free binding up to 5 sheets and conventional stapling to fasten together sheets with staples. Staple-free technology reduces need to restock staples, increases safety, and makes paper recycling easier.

    Capacity: 1,000 sheets
    Paper size: A3–A5 SEF, B6 SEF, A6 SEF, 12” x 18”, SRA3, 13” x 19.2”
    Paper weight: 52–300 g/m2
    Staple capacity:
    2–50 sheets—A4 or smaller
    2–30 sheets—B4 or larger
    2–5 sheets—stapleless binding
    Staple position: Top, bottom, 2 spots
    Dimensions (W x D x H): 575 x 620 x 960 mm—without extended tray; 660 x 665 x 960 mm—with extended tray
    Weight: 34 kg
    Power consumption: 35.4 W
    Notes:
    Cannot be installed with Booklet Finisher SR3350,Internal Shift Tray SH3090,Caster Table Type M52,Paper Feed Unit PB3310,Booklet Finisher SR3330,Finisher SR3340,Side Tray Type M52,Stapleless Unit Type M58,Punch Unit PU3110 EU,Punch Unit PU3110 NA
    One of the following must also be selected: Bridge Unit BU3100,Internal Multi-Fold Unit FD3020
    One of the following must also be selected: Paper Feed Unit PB3320,LCIT PB3330
    Finisher SR3320
    Booklet Finisher SR3350
    Allows documents to be professionally finished. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas. Offers optional hole punching.

    Capacity: 3,000 sheets
    Paper size: A3–A5 SEF, B6 SEF, A6 SEF,12” x 18”, SRA3, 13” x 19.2”
    Paper weight: 52–300 g/m2
    Staple capacity: 65 sheets—normal staple
    Staple positions: Top, bottom, top-slant, bottom-slant, 2 spots, booklet
    Staple paper weight: 52–105 g/m2—normal staple
    Optional punch unit PU3110 available
    Dimensions (W x D x H): 651 x 670 x 960 mm—without extended tray; 754 x 670 x 960 mm—with extended tray
    Weight: 58 kg; 60 kg or less—with punch unit
    Power consumption: 64 W
    Notes:
    Cannot be installed with Booklet Finisher SR3330,Finisher SR3320,Internal Shift Tray SH3090,Caster Table Type M52,Paper Feed Unit PB3310,Side Tray Type M52,Finisher SR3340,Punch Unit PU3080 EU,Punch Unit PU3080 NA
    One of the following must also be selected: Bridge Unit BU3100,Internal Multi-Fold Unit FD3020
    One of the following must also be selected: Paper Feed Unit PB3320,LCIT PB3330
    Booklet Finisher SR3350
    Finisher SR3340
    Provides multi-position stapling and optional hole punching.

    Capacity: 3,000 sheets
    Paper size: A3–A5 SEF, B6 SEF, A6 SEF, 12” × 18”, HLT–DLT SEF, SRA3, 13” x 19.2”, custom paper size—90 x 139.7–330.2 x 487.7 mm
    Paper weight: 52–300 g/m2
    Staple capacity: 65 sheets
    Staple positions: Top, bottom, top-slant, bottom-slant, 2 spots, booklet
    Staple paper weight: 52–105 g/m2
    Optional punch unit PU3110 available
    Dimensions (W x D x H): 651 x 670 x 960 mm—without extended tray; 754 x 670 x 960 mm—with extended tray
    Weight: 38 kg; 41 kg—with punch unit
    Power consumption: 64 W
    Notes:
    Cannot be installed with Booklet Finisher SR3350,Booklet Finisher SR3330,Finisher SR3320,Internal Shift Tray SH3090,Side Tray Type M52,Paper Feed Unit PB3310,Caster Table Type M52,Punch Unit PU3080 EU,Punch Unit PU3080 NA
    One of the following must also be selected: Bridge Unit BU3100,Internal Multi-Fold Unit FD3020
    One of the following must also be selected: Paper Feed Unit PB3320,LCIT PB3330
    Finisher SR3340
    Stapleless Unit Type M58
    Enables staple-free binding of documents. Staple-free technology reduces need to restock normal metal staples, increases safety, and makes paper recycling easier.
    Notes:
    Cannot be installed with Booklet Finisher SR3330,Finisher SR3320,Internal Shift Tray SH3090,Side Tray Type M52,Paper Feed Unit PB3310,Caster Table Type M52,Punch Unit PU3080 EU,Punch Unit PU3080 NA
    One of the following must also be selected: Booklet Finisher SR3350,Finisher SR3340
    Punch Unit PU3080 EU
    Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
    Notes:
    Cannot be installed with Booklet Finisher SR3350,Internal Shift Tray SH3090,Caster Table Type M52,Side Tray Type M52,Paper Feed Unit PB3310,Finisher SR3340,Stapleless Unit Type M58,Punch Unit PU3110 EU,Punch Unit PU3110 NA
    One of the following must also be selected: Booklet Finisher SR3330,Finisher SR3320
    Punch Unit PU3080 NA
    Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
    Notes:
    Cannot be installed with Booklet Finisher SR3350,Internal Shift Tray SH3090,Caster Table Type M52,Side Tray Type M52,Paper Feed Unit PB3310,Finisher SR3340,Stapleless Unit Type M58,Punch Unit PU3110 EU,Punch Unit PU3110 NA
    One of the following must also be selected: Booklet Finisher SR3330,Finisher SR3320
    Punch Unit PU3110 EU
    Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
    Notes:
    Cannot be installed with Booklet Finisher SR3330,Finisher SR3320,Internal Shift Tray SH3090,Caster Table Type M52,Side Tray Type M52,Paper Feed Unit PB3310,Punch Unit PU3080 EU,Punch Unit PU3080 NA
    One of the following must also be selected: Booklet Finisher SR3350,Finisher SR3340
    Punch Unit PU3110 NA
    Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
    Notes:
    Cannot be installed with Booklet Finisher SR3330,Finisher SR3320,Internal Shift Tray SH3090,Caster Table Type M52,Side Tray Type M52,Paper Feed Unit PB3310,Punch Unit PU3080 EU,Punch Unit PU3080 NA
    One of the following must also be selected: Booklet Finisher SR3350,Finisher SR3340
    ADF Handle Type C
    Assists seated users or users with arm injuries to open and close an automatic document feeder.
    Image Extension Unit SRA3/12.6" Type M19

    Allows users to print crop marks for proofing SRA3/12.6" documents.

    File Format Converter Type M19
    Allows users to save copy and print jobs stored on the document server to a computer.
    Notes:
    Cannot be installed with Device Server Option Type M52,Colour Controller E-26C
    OCR Unit Type M52

    Scans and creates searchable PDF files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.

    IPDS Unit Type M52
    Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
    Notes:
    Cannot be installed with Colour Controller E-26C
    Colour Controller E-26C
    An optional colour controller that improves the quality of printed documents, makes employees more productive, reduces internal printing costs, and saves outsourced printing expenses.
    Notes:
    Cannot be installed with PostScript3 Unit Type M52,IPDS Unit Type M52,Optional Counter Interface Unit Type M12,Unicode Font Package for SAP 1 Licence,File Format Converter Type M19,Device Server Option Type M52,IEEE 802.11 a/b/g/n/ac Interface Unit Type M52
    PostScript3 Unit Type M52

    Genuine Adobe® PostScript®3™. Recommended for printing more complex colour and PDF files.

    This option is available for customers who require True Adobe® workflows like Photoshop®, Illustrator® and PDF/X as well as additional font support. When enabled on the MFP, the standard PostScript3 Emulation and PDF Direct Emulation will be disabled.

    Notes:
    Cannot be installed with Colour Controller E-26C
    Fax Option Type M52
    Enables fax services: 33.6 kbps, approximately 2 second transmission speed, standard JBIG, and standard 320-page memory.

    Includes standard Internet Fax (T.37), LAN fax, IP-Fax (T.38), Fax forwarding to email, and Paperless fax function.
    Fax Connection Unit Type M52
    Enables users to send and receive faxes on a sub-MFP via a fax-enabled main MFP. This option has to be installed in both the main MFP and sub-MFP(s) needing remote fax. Supports max 6 sub-connections.
    Notes:
    By choosing this option the Fax Option Type M52 will be added to the configuration.
    Fax Interface Unit Type M52
    Additional G3 fax line. Up to two units can be installed.
    Notes:
    By choosing this option the Fax Option Type M52 will be added to the configuration.
    Fax Memory Unit Type M52
    Additional memory that increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.
    Notes:
    By choosing this option the Fax Option Type M52 will be added to the configuration.
    Enhanced Security SSD Option Type M52 256GB
    Optional SSD with enhanced security features to increase document storage capacity.
    Notes:
    Cannot be installed with SSD Option Type M52 1TB,HDD Option Type M52 320 GB
    SSD Option Type M52 1TB
    Optional SSD to increase document storage capacity.
    Notes:
    Cannot be installed with Enhanced Security SSD Option Type M52 256GB,HDD Option Type M52 320 GB
    HDD Option Type M52 320 GB
    This optional HDD is required to comply with Common Criteria Certification IEEE2600.2. Standard SSD complies with Common Criteria Certification PP HCD v1.0. This option replaces the standard 256 GB SSD.
    Notes:
    Cannot be installed with SSD Option Type M52 1TB,Enhanced Security SSD Option Type M52 256GB
    Card Reader Cover Type M52
    For use with third party card reader solutions. The Card Reader Cover slots into the right-hand side of the Smart Operation Panel. A card reader is not included. Not all card readers may be supported.
    Notes:
    Cannot be installed with NFC Card Reader Type M52
    Device Server Option Type M52
    An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option.
    Notes:
    Cannot be installed with File Format Converter Type M19,Colour Controller E-26C
    NFC Card Reader Type M52
    Ricoh card reader that supports authentication via Near Field Communication (NFC) technology.
    Notes:
    Cannot be installed with Card Reader Cover Type M52
    Optional Counter Interface Unit Type M12

    Used with external third party counting devices for accounting and charge-back purposes.

    Notes:
    Cannot be installed with Colour Controller E-26C
    IEEE 802.11 a/b/g/n/ac Interface Unit Type M52
    Enables WiFi connectivity and wireless printing.
    Notes:
    Cannot be installed with Colour Controller E-26C
    Unicode Font Package for SAP 1 Licence
    Supports multilingual data without restrictions.
    Toner Bottle Lock Type M52
    A physical locking mechanism that prevents the toner bottles from being removed before they are empty to minimise wastage.
    RICOH Antimicrobial Screen Protector Type B

    A protective sheet with antimicrobial properties for Ricoh devices equipped with a 10.1-inch Smart Operation Panel version G2.5 (full flat type).

    The screen protector works by generating silver ion (Ag+) from the sheet surface which then connects with bacterial enzymes, blocking replication and destroying the harmful cells.

    The antimicrobial effect is ISO 22196-certified under the Society of Industrial Technology for Antimicrobial Articles (SIAA).

    NOTE: Please check the availability of this option with your local sales company.

    Standard inclusions

    • 10.1" Smart Operation Panel
    • 8 GB memory (RAM)
    • 256 GB SSD
    • 220-sheet SPDF
    • 2 x 550-sheet input tray
    • 100-sheet bypass tray

    Current configuration

    IM C6010
    587 mm x701 mm x963 mm (W x D x H)
    1008 kg
    Selected Options:
      IM C6010
      {"configuratorid":"8eaa7a5a-119c-4db4-9048-c5df0185b34b","productid":"b120853f-2e22-4aab-8823-ba1dc8e9deb3","edpcode":"419338","productdisplayname":"IM C6010","width":587.0,"height":963.0,"depth":701.0,"weight":1008.0,"mainframe_imageurl":"-/media/all-regional/images/product-images/office-solutions/printers-and-copiers/mfp-colour/im-c2010-series/configurator/mainframe-with-spdf.png?dmc=0&hash=3497E50138FCE7E3A9A79ED9A7AAE2DF","configurator_hash":"82da262b-8b8c-4e12-84bc-c8692323bb31","options":{"419363":{"edpcode":"419363","displayname":"Page Keeper Type M52","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"419371":{"edpcode":"419371","displayname":"Paper Feed Unit PB3310","extras":[],"width":587.0,"height":120.0,"depth":685.0,"weight":12.0,"show_image":true,"hide_until_required":false},"423699":{"edpcode":"423699","displayname":"Paper Feed Unit PB3320","extras":[],"width":587.0,"height":247.0,"depth":685.0,"weight":23.0,"show_image":true,"hide_until_required":false},"419376":{"edpcode":"419376","displayname":"LCIT PB3330","extras":[],"width":587.0,"height":247.0,"depth":685.0,"weight":23.0,"show_image":true,"hide_until_required":false},"419380":{"edpcode":"419380","displayname":"LCIT RT3050","extras":[],"width":340.0,"height":290.0,"depth":544.0,"weight":105.0,"show_image":true,"hide_until_required":false},"419389":{"edpcode":"419389","displayname":"Caster Table Type M52","extras":[],"width":668.0,"height":76.0,"depth":723.0,"weight":83.0,"show_image":true,"hide_until_required":false},"419411":{"edpcode":"419411","displayname":"Banner Paper Guide Tray Type M52","extras":[],"width":445.0,"height":143.0,"depth":315.0,"weight":15.0,"show_image":false,"hide_until_required":false},"419387":{"edpcode":"419387","displayname":"Side Tray Type M52","extras":[],"width":800.0,"height":156.0,"depth":549.0,"weight":4.0,"show_image":true,"hide_until_required":false},"419385":{"edpcode":"419385","displayname":"Internal Shift Tray SH3090","extras":[],"width":420.0,"height":107.0,"depth":489.0,"weight":14.0,"show_image":true,"hide_until_required":false},"419381":{"edpcode":"419381","displayname":"Bridge Unit BU3100","extras":[],"width":412.0,"height":413.0,"depth":416.0,"weight":34.0,"show_image":true,"hide_until_required":false},"419383":{"edpcode":"419383","displayname":"1-Bin Tray BN3140","extras":[],"width":444.0,"height":150.0,"depth":450.0,"weight":14.0,"show_image":true,"hide_until_required":false},"419409":{"edpcode":"419409","displayname":"Internal Multi-Fold Unit FD3020","extras":[],"width":612.0,"height":184.0,"depth":555.0,"weight":16.0,"show_image":true,"hide_until_required":false},"419397":{"edpcode":"419397","displayname":"Booklet Finisher SR3330","extras":[],"width":575.0,"height":960.0,"depth":620.0,"weight":435.0,"show_image":true,"hide_until_required":false},"419399":{"edpcode":"419399","displayname":"Finisher SR3320","extras":[],"width":575.0,"height":960.0,"depth":665.0,"weight":34.0,"show_image":true,"hide_until_required":false},"419390":{"edpcode":"419390","displayname":"Booklet Finisher SR3350","extras":[],"width":651.0,"height":960.0,"depth":670.0,"weight":58.0,"show_image":true,"hide_until_required":false},"419392":{"edpcode":"419392","displayname":"Finisher SR3340","extras":[],"width":651.0,"height":960.0,"depth":670.0,"weight":38.0,"show_image":true,"hide_until_required":false},"423673":{"edpcode":"423673","displayname":"Stapleless Unit Type M58","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418382":{"edpcode":"418382","displayname":"Punch Unit PU3080 EU","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":3.0,"show_image":false,"hide_until_required":false},"418381":{"edpcode":"418381","displayname":"Punch Unit PU3080 NA","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":3.0,"show_image":false,"hide_until_required":false},"419440":{"edpcode":"419440","displayname":"Punch Unit PU3110 EU","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":3.0,"show_image":false,"hide_until_required":false},"419438":{"edpcode":"419438","displayname":"Punch Unit PU3110 NA","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"416213":{"edpcode":"416213","displayname":"ADF Handle Type C","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417497":{"edpcode":"417497","displayname":"Image Extension Unit SRA3/12.6\" Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417508":{"edpcode":"417508","displayname":"File Format Converter Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"419445":{"edpcode":"419445","displayname":"OCR Unit Type M52","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"419434":{"edpcode":"419434","displayname":"IPDS Unit Type M52","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"419419":{"edpcode":"419419","displayname":"Colour Controller E-26C","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"419416":{"edpcode":"419416","displayname":"PostScript3 Unit Type M52","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"419424":{"edpcode":"419424","displayname":"Fax Option Type M52","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"419431":{"edpcode":"419431","displayname":"Fax Connection Unit Type M52","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"419428":{"edpcode":"419428","displayname":"Fax Interface Unit Type M52","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"419430":{"edpcode":"419430","displayname":"Fax Memory Unit Type M52","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"419436":{"edpcode":"419436","displayname":"Enhanced Security SSD Option Type M52 256GB","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"419437":{"edpcode":"419437","displayname":"SSD Option Type M52 1TB","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"419435":{"edpcode":"419435","displayname":"HDD Option Type M52 320 GB","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"419413":{"edpcode":"419413","displayname":"Card Reader Cover Type M52","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"419433":{"edpcode":"419433","displayname":"Device Server Option Type M52","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"419412":{"edpcode":"419412","displayname":"NFC Card Reader Type M52","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417111":{"edpcode":"417111","displayname":"Optional Counter Interface Unit Type M12","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"423571":{"edpcode":"423571","displayname":"IEEE 802.11 a/b/g/n/ac Interface Unit Type M52","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"413009":{"edpcode":"413009","displayname":"Unicode Font Package for SAP 1 Licence","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"419420":{"edpcode":"419420","displayname":"Toner Bottle Lock Type M52","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"440107":{"edpcode":"440107","displayname":"RICOH Antimicrobial Screen Protector Type B","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false}},"rules":[{"condition":{"condition_name":"TrueCondition","trigger_options":["419371"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["419389"],"should_validate_after_excute":false,"requires":["419389"]},{"action_name":"ExcludeOptionAction","affect_to_options":["419376","423699","419380","419397","419399","419392","419390","419381","423673","418382","418381","419440","419438"],"should_validate_after_excute":false,"excludes":["419376","423699","419380","419397","419399","419392","419390","419381","423673","418382","418381","419440","419438"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["423699"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419389","419376","419371"],"should_validate_after_excute":false,"excludes":["419389","419376","419371"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419376"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["423699","419371","419389"],"should_validate_after_excute":false,"excludes":["423699","419371","419389"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419380"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419371","419389"],"should_validate_after_excute":false,"excludes":["419371","419389"]},{"action_name":"RequireOneAction","affect_to_options":["423699","419376"],"should_validate_after_excute":true,"require_ones":["423699","419376"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419389"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["419371"],"should_validate_after_excute":false,"requires":["419371"]},{"action_name":"ExcludeOptionAction","affect_to_options":["423699","419376","419380","419397","419399","419392","419390","419381","423673","418382","418381","419440","419438"],"should_validate_after_excute":false,"excludes":["423699","419376","419380","419397","419399","419392","419390","419381","423673","418382","418381","419440","419438"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419387"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419397","419399","419381","419385","419409","419392","419390","423673","418382","418381","419440","419438"],"should_validate_after_excute":false,"excludes":["419397","419399","419381","419385","419409","419392","419390","423673","418382","418381","419440","419438"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419385"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419390","419397","419399","419381","419387","419392","419409","423673","418382","418381","419440","419438"],"should_validate_after_excute":false,"excludes":["419390","419397","419399","419381","419387","419392","419409","423673","418382","418381","419440","419438"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419381"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419385","419409","419387","419371","419389"],"should_validate_after_excute":false,"excludes":["419385","419409","419387","419371","419389"]},{"action_name":"RequireOneAction","affect_to_options":["419399","419397","419390","419392"],"should_validate_after_excute":true,"require_ones":["419399","419397","419390","419392"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419409"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419381","419385","419387"],"should_validate_after_excute":false,"excludes":["419381","419385","419387"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419397"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419390","419399","419385","419389","419371","419392","419387","423673","419440","419438"],"should_validate_after_excute":false,"excludes":["419390","419399","419385","419389","419371","419392","419387","423673","419440","419438"]},{"action_name":"RequireOneAction","affect_to_options":["419381","419409"],"should_validate_after_excute":true,"require_ones":["419381","419409"]},{"action_name":"RequireOneAction","affect_to_options":["423699","419376"],"should_validate_after_excute":true,"require_ones":["423699","419376"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419399"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419390","419385","419389","419371","419397","419392","419387","423673","419440","419438"],"should_validate_after_excute":false,"excludes":["419390","419385","419389","419371","419397","419392","419387","423673","419440","419438"]},{"action_name":"RequireOneAction","affect_to_options":["419381","419409"],"should_validate_after_excute":true,"require_ones":["419381","419409"]},{"action_name":"RequireOneAction","affect_to_options":["423699","419376"],"should_validate_after_excute":true,"require_ones":["423699","419376"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419390"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419397","419399","419385","419389","419371","419387","419392","418382","418381"],"should_validate_after_excute":false,"excludes":["419397","419399","419385","419389","419371","419387","419392","418382","418381"]},{"action_name":"RequireOneAction","affect_to_options":["419381","419409"],"should_validate_after_excute":true,"require_ones":["419381","419409"]},{"action_name":"RequireOneAction","affect_to_options":["423699","419376"],"should_validate_after_excute":true,"require_ones":["423699","419376"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419392"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419390","419397","419399","419385","419387","419371","419389","418382","418381"],"should_validate_after_excute":false,"excludes":["419390","419397","419399","419385","419387","419371","419389","418382","418381"]},{"action_name":"RequireOneAction","affect_to_options":["419381","419409"],"should_validate_after_excute":true,"require_ones":["419381","419409"]},{"action_name":"RequireOneAction","affect_to_options":["423699","419376"],"should_validate_after_excute":true,"require_ones":["423699","419376"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["423673"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419397","419399","419385","419387","419371","419389","418382","418381"],"should_validate_after_excute":false,"excludes":["419397","419399","419385","419387","419371","419389","418382","418381"]},{"action_name":"RequireOneAction","affect_to_options":["419390","419392"],"should_validate_after_excute":true,"require_ones":["419390","419392"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418382"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419390","419385","419389","419387","419371","419392","423673","419440","419438"],"should_validate_after_excute":false,"excludes":["419390","419385","419389","419387","419371","419392","423673","419440","419438"]},{"action_name":"RequireOneAction","affect_to_options":["419397","419399"],"should_validate_after_excute":true,"require_ones":["419397","419399"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418381"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419390","419385","419389","419387","419371","419392","423673","419440","419438"],"should_validate_after_excute":false,"excludes":["419390","419385","419389","419387","419371","419392","423673","419440","419438"]},{"action_name":"RequireOneAction","affect_to_options":["419397","419399"],"should_validate_after_excute":true,"require_ones":["419397","419399"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419440"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419397","419399","419385","419389","419387","419371","418382","418381"],"should_validate_after_excute":false,"excludes":["419397","419399","419385","419389","419387","419371","418382","418381"]},{"action_name":"RequireOneAction","affect_to_options":["419390","419392"],"should_validate_after_excute":true,"require_ones":["419390","419392"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419438"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419397","419399","419385","419389","419387","419371","418382","418381"],"should_validate_after_excute":false,"excludes":["419397","419399","419385","419389","419387","419371","418382","418381"]},{"action_name":"RequireOneAction","affect_to_options":["419390","419392"],"should_validate_after_excute":true,"require_ones":["419390","419392"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417508"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419433","419419"],"should_validate_after_excute":false,"excludes":["419433","419419"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419434"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419419"],"should_validate_after_excute":false,"excludes":["419419"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419419"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419416","419434","417111","413009","417508","419433","423571"],"should_validate_after_excute":false,"excludes":["419416","419434","417111","413009","417508","419433","423571"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419416"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419419"],"should_validate_after_excute":false,"excludes":["419419"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419431"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["419424"],"should_validate_after_excute":false,"requires":["419424"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419428"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["419424"],"should_validate_after_excute":false,"requires":["419424"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419430"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["419424"],"should_validate_after_excute":false,"requires":["419424"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419436"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419437","419435"],"should_validate_after_excute":false,"excludes":["419437","419435"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419437"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419436","419435"],"should_validate_after_excute":false,"excludes":["419436","419435"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419435"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419437","419436"],"should_validate_after_excute":false,"excludes":["419437","419436"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419413"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419412"],"should_validate_after_excute":false,"excludes":["419412"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419433"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417508","419419"],"should_validate_after_excute":false,"excludes":["417508","419419"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["419412"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419413"],"should_validate_after_excute":false,"excludes":["419413"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417111"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419419"],"should_validate_after_excute":false,"excludes":["419419"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["423571"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["419419"],"should_validate_after_excute":false,"excludes":["419419"]}]}],"affect_group":[["419363"],["419371","419389","419376","423699","419380","419397","419399","419392","419390","419387","419381","419385","419409","423673","418382","418381","419440","419438"],["419411"],["419383"],["416213"],["417497"],["417508","419433","419419","419434","419416","417111","413009","423571"],["419445"],["419424","419431","419428","419430"],["419436","419437","419435"],["419413","419412"],["419420"],["440107"]],"preselect_configs":{},"min_config":{"must_select_at_least_one_option":false,"requires":[],"requireones":[]}}
      ×

      Invalid Configuration

      The configuration selected is invalid. Please review the following and then try again.
