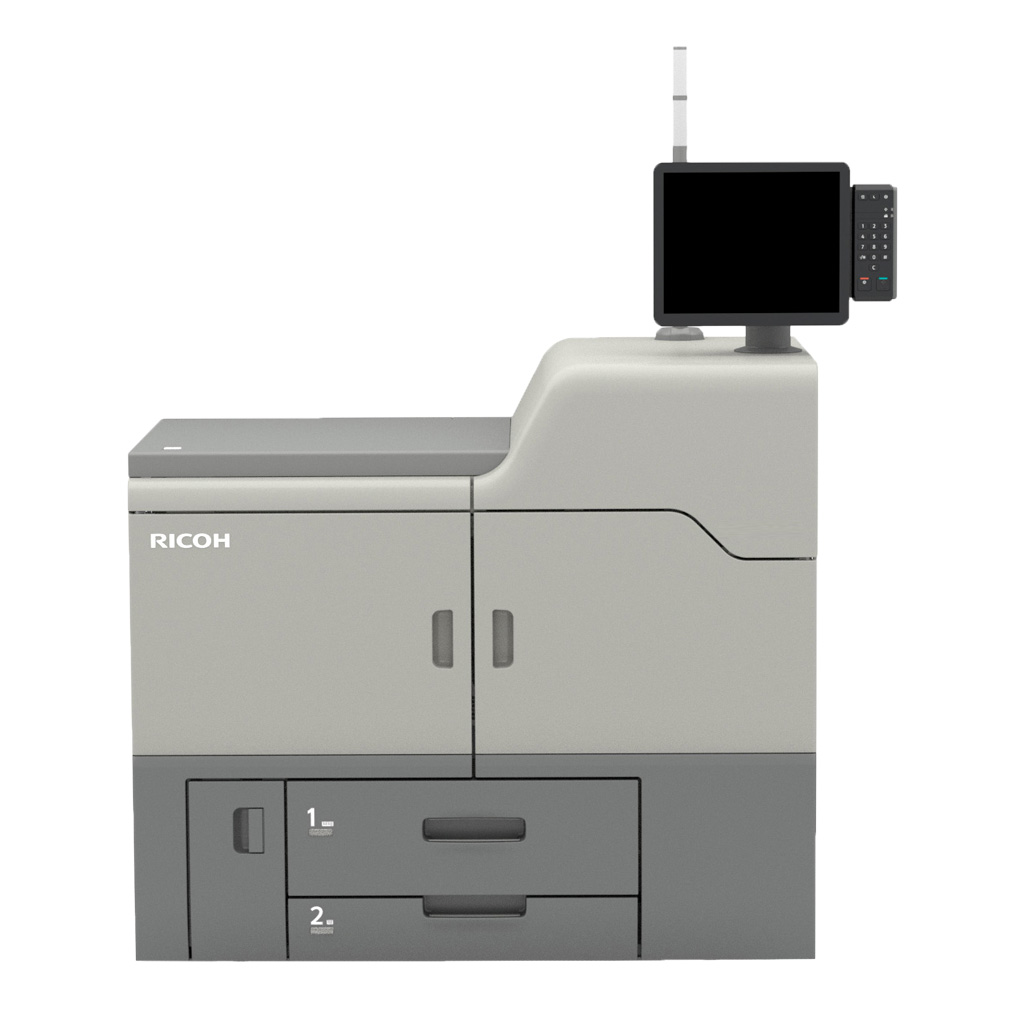

The Pro C7200X Graphics Art Edition is a light-high to medium volume colour digital production printer.
Featuring a print speed of 85 ppm, it comes with a GWNX controller as standard and can be upgraded by adding the optional Fiery E 46A, Fiery E-86A, or Ricoh TotalFlow Print Server R-62A controller.
The Pro C7200X Graphics Art Edition supports paper sizes of up to 13” x 19.2” and banner sheet duplex printing up to 700 mm.
It comes with a fifth toner station to print colours other than the standard cyan, magenta, yellow, and black (CMYK). A choice of clear, white, neon yellow, neon pink, invisible red, gold, or silver toner is available for this 5-station device.
Other notable features are automatic colour calibration for custom size paper, large 17” operation panel, real-time registration adjustment, synchronised LED jam animation, and support for optional high-end finishers with larger stack capacities.

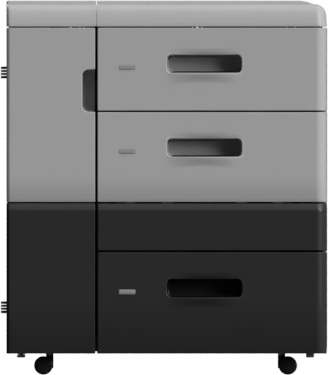

LCT RT5110
Optional Large Capacity Tray accommodates paper sizes up to 13" x 19.2" and significantly increases the capacity of the device.
Configuration: Console type
Capacity: 4,400 sheets
Paper size: A5–13" x 19.2"
Custom size: 100–330.2 x 139.7–487.7 mm
Paper weight : 52.3–256 g/m2 (Trays 4 and 6); 52.3–360 g/m2(Tray 5) Note: Some media over 301 g/m2 can be supported but the vacuum-feed LCT RT5120 is recommended for media heavier than 301 g/m2.
Air-assisted paper feed: Supported with all trays
Active tray indicator LED: Supported
Power source: From mainframe
Dimensions (W x D x H): 865 x 730 x 1,000 mm
Weight: 185 kg or less
Notes:
Cannot be installed with Vacuum-Feed LCT RT5120,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Vacuum-Feed Banner Sheet Tray Type S9

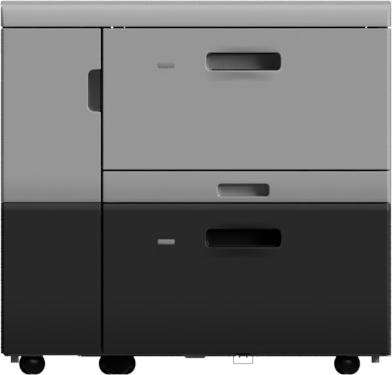

Vacuum-Feed LCT RT5120
Optional Large Capacity Tray significantly increasing the capacity of the device. This option features a vacuum-feed mechanism for excellent paper feeding accuracy.
Capacity: 4,400 sheets (2 x 2,200 sheet trays); 2,200 sheets with Vacuum-Feed Banner Sheet Tray Type S9 attached
Paper size: A5–13" x 19.2"
Custom size: 100–330.2 mm x 139.7–487.7 mm
Paper weight: 52–470 g/m² Note: Supported paper weight depends on mainframe.
Paper transfer method: Air pick
Active tray indicator LED: Supported
Dimensions (W x D x H) : 1,054 x 730 x 1,000 mm; 1,290 x 730 x 1,000 mm with Vacuum-Feed Banner Sheet Tray Type S9 attached
Weight: 220 kg or less; 227 kg or less with Vacuum-Feed Banner Sheet Tray Type S9 attached
Power source: 220–240 V
Power consumption: 1,000 W or less
Notes:
Cannot be installed with LCT RT5110

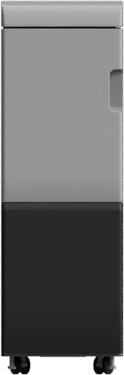

Bridge Unit BU5010
Need to be attached between LCTs when more than 1 Vacuum-Feed LCT RT5120 units are configured to the system.
Paper size: A5–13" x 19.2"
Paper weight: 52–400 g/m2 Note: Paper weight support depends on the mainframe.
Dimensions (W x D x H): 330 x 730 x 1,000 mm
Weight: 40 kg or less
Vacuum-Feed Banner Sheet Tray Type S9
Enables feeding of up to 700 mm banner sheet pages for a wider variety of applications. This option is attached to the upper tray of the Vacuum-Feed LCIT RT5150.
Capacity: 730 sheets
Paper size: 210–330.2 mm x 420–700 mm
Paper weight: 52–300 g/m² Note: Supported paper weight depends on mainframe.
Power source: From LCT
Dimensions (W x D x H): 1,290 x 730 x 1,000 mm—when attached to LCT; 1,290 x 730 x 1,302 mm—with cover open
Weight: 7 kg or less
Notes:
By choosing this option the Vacuum-Feed LCT RT5120 will be added to the configuration.
Cannot be installed with LCT RT5110
Multi-Bypass Tray BY5020
Feeds up to 500 sheets of uncoated paper stocks for expanded system capacity and document output types.
Capacity: 500 sheets
Paper size: A5–13" x 19.2"
Custom size: 100 x 330.2 x 139.7 x 487.7 mm
Paper weight: 52–216 g/m²
Power source: From mainframe
Paper volume sensors: In 4 steps, near end 0%, 50%, 100%
Dimensions (W x D x H): 690 x 561 x 210 mm
Weight: 20 kg or less
Notes:
One of the following must also be selected: LCT RT5110,Vacuum-Feed LCT RT5120 and Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9
Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9
Required to configure the Multi-Bypass Tray BY5020 with the Vacuum-Feed LCIT RT5150.
Notes:
By choosing this option the Multi-Bypass Tray BY5020,Vacuum-Feed LCT RT5120 will be added to the configuration.
Cannot be installed with LCT RT5110
Multi-Bypass Banner Sheet Tray Type S9
Extender for Multi-Bypass Tray BY5020 to accommodate oversize prints up to 700 mm in size and up to 216 g/m2 in weight.
Note: SR5000 Series Output Tray For Banner Sheet Type S6 is required for banner sheet output, as this option doesn’t include an output tray for finisher.
Capacity: 500 sheets
Paper size: A5–A3, 13” x 19.2”
Custom size: 100–330.2 x 139.7–700 mm Note: Simplex printing up to 1,260 mm supported when sheets are fed individually.
Paper weight: 52.3–216 g/m²
Dimensions (W x D x H): 1,090 x 561 x 210 mm
Weight: 9.5 kg or less
Notes:
One of the following must also be selected: Multi-Bypass Tray BY5020 and LCT RT5110,Multi-Bypass Tray BY5020 and Vacuum-Feed LCT RT5120 and Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9
A3/11"x17" Tray Unit TK5010
Converts the standard paper input tray from a tandem A4 tray to an A3 tray.
Capacity: 1,000 sheets
Paper size: B4, A3, A4 SEF
Paper weight: 52–216 g/m2
Dimensions (W x D x H): 495 x 530 x 175 mm
Weight: 10 kg
Tab Sheet Holder Type 3260
Recommended to be used when loading tab stock in the paper trays.
Dimensions (W x D x H): 66 x 280 x 12 mm
Weight: 50 g
Decurl Unit DU5060
Reduces the natural paper curl that can occur, delivering sheets with optimal flatness. Ideal for applications that are frequently printed with high toner coverage on thin paper and paper with long grain.
Type: Optional internal module to be installed in mainframe
Paper size: Same as mainframe
Paper weight: Same as mainframe
Decurler functions: Pressure adjustment; 3 steps from operation panel
Curl type: Back curl, face curl
Power source: From mainframe
Power consumption: 30 W or less
Dimensions (W x D x H): 71 x 509 x 181 mm
Weight: 5 kg or less

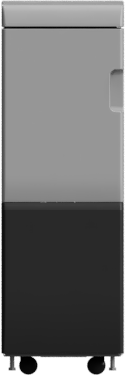

Buffer Pass Unit Type S9
Cools down printed paper to prevent toner adhesion or sticking before the paper is stacked or sent to the finishers. Recommended for printing on coated stocks, or with high toner coverage.
Paper weight: 40–470 g/m² Note: Paper weight support dependent on mainframe.
Power source: 220–240 V, 50–60 Hz, 1.5 A
Power consumption: Less than 200 W
Dimensions (W x D x H): 330 x 730 x 1,010 mm
Weight: Less than 90 kg

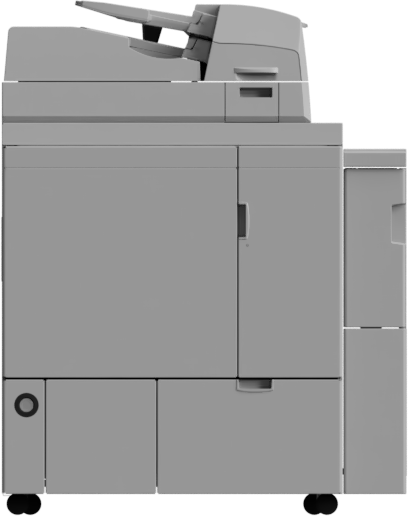

Perfect Binder GB5010
A fully automated system that creates perfectly bound books up to 200 sheets. A cover inserter supports up to 300 g/m2 paper, and the trimming function creates 3 clean edges for the output of professionaly bound books.
Cutting directions: 3 edges, 1 edge, none
Booklet size: 201–297 x 139.7–216 mm
Booklet thickness: Less than 23 mm
Paper weight: 64–163 g/m2 for body pages; 106–163 g/m2 up to 10 sheets as chapter pages; 90–300 g/m2 for covers
Paper size: 257–320 x 182–228.6 mm for body pages; 257–330.2 x 364–487.7 mm for covers
Dimensions (W x D x H): 1,090 x 791 x 1,387 mm
Weight: 350 kg or less
Notes:
By choosing this option the Transit Pass Unit for Perfect Binder Type S1,Cover Interposer Tray for Perfect Binder Type S1 will be added to the configuration.
Cannot be installed with Ring Binder RB5020,Ring opener Type A
Transit Pass Unit for Perfect Binder Type S1
Mandatory option to connect Perfect Binder to the engine.
Notes:
By choosing this option the Perfect Binder GB5010 will be added to the configuration.
Cannot be installed with Ring Binder RB5020,Ring opener Type A
Cover Interposer Tray for Perfect Binder Type S1
Allows pre-printed covers and inserts to be easily fed into the finishing workflow.
Paper size: A5-A3, up to 13" x 18"
Paper weight: 64-216 g/m2
Notes:
By choosing this option the Perfect Binder GB5010 will be added to the configuration.
Cannot be installed with Ring Binder RB5020,Ring opener Type A
Cover Interposer Tray CI5030
Allows pre-printed covers and inserts to be easily fed into the finishing workflow from two sources. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.
Capacity: 400 sheets (2 x 200-sheet trays)
Paper size: A5–13" x 19.2"
Custom size: 139.7–330.2 mm x 139.7–487.7 mm
Paper weight: 64–216 g/m2 Original set: Position—centre; Set—face-up, first sheet on top
Size change: Supported, can be changed by user via operation panel
Power source: From mainframe
Dimensions (W x D x H): 540 x 730 x 1,290 mm
Weight: 45 kg or less
Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5020 NA,Punch Unit PU5020 SC,Punch Unit PU5020 EU,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC

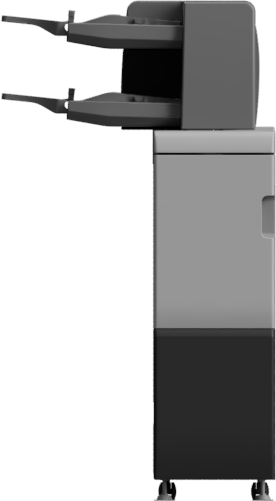

Cover Interposer Tray CI5040
Allows pre-printed covers and inserts to be easily fed into the finishing workflow from two sources. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.
Capacity: 400 sheets (200 sheets x 2 trays)
Paper height: 22 mm
Paper size: A5–13" x 19.2"
Custom size: 139.7–330.2 mm x 139.7–487.7 mm
Available size: 139.7–1,260 mm (length), 100–330.2 mm (width)
Paper weight: 52.3–350 g/m2 with plain paper; 105.1—350 g/m2 with coated paper
Dimensions (W x D x H): 740 x 730 x 1,350 mm; width for connecting part is 330 mm
Weight: 60 kg
Power source: From mainframe
Power consumption: 110 W, excluding peak consumption
Notes:
Cannot be installed with Cover Interposer Tray CI5030,Finisher SR5050,Booklet Finisher SR5060,Trimmer Unit TR5040,TotalFlow Print Server R-62A,Punch Unit PU5020 NA,Punch Unit PU5020 SC,Punch Unit PU5020 EU
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Cover Interposer Tray Double-Feed Detection Kit Type S11
When attached to the cover interposer, detects double feeds from the interposer.
Dimensions (W x D x H): 126 x 317 x 56 mm
Weight: 0.4 kg
Notes:
By choosing this option the Cover Interposer Tray CI5040 will be added to the configuration.
Cannot be installed with Cover Interposer Tray CI5030,Finisher SR5050,Booklet Finisher SR5060,Trimmer Unit TR5040,Punch Unit PU5020 NA,Punch Unit PU5020 SC,Punch Unit PU5020 EU,TotalFlow Print Server R-62A

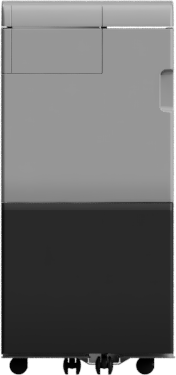

Multi-Folding Unit FD5020
Provides automatic inline document folding with the ability to deliver folded output in several different patterns. Ideal for finished documents such as newsletters, brochures, menus, and marketing materials.
Folding types: Single sheet mode Z-fold, Half-fold/print inside, Half-fold/print outside, Letter fold-in/print inside, Letter fold-in/print outside, Letter fold-out, Double parallel/print inside, Double parallel/print outside, Gate fold/print inside, Gate fold/print outside Multiple sheet mode (up to 3 sheets) Half-fold/print inside, Half-fold/print outside, Letter fold-in/print inside, Letter fold-in/print outside, Letter fold-out Note: Coated paper is also supported.
Paper size: A4—13" x 19.2"
Paper weight:
64–105 g/m2—single sheet mode
64–80 g/m2—multiple sheet mode
Power source: External, 220–240 V, 50–60 Hz
Power consumption: 240 W or less
Dimensions (W x D x H): 470 x 730 x 1,000 mm
Weight: 92 kg or less

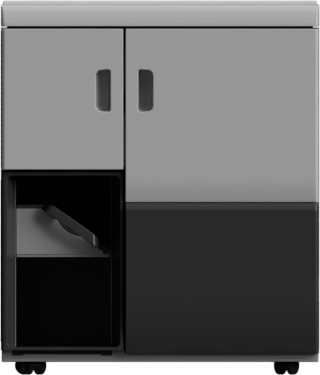

Ring Binder RB5020
Automates the creation of ring bound booklets, saving both time and costs. Jobs can run continually, and rings for up to 50 or 100 sheets are available.
Paper size: A4 LEF (binding mode, punching mode)
Paper weight: 64–216 g/m2 (binding mode, punching mode)
Ring binding capacity: 2–100 sheets
Number of holes (A4): 23
Paper size before folding: B5–SRA3; custom size 257–487.7 mm x 182–330.2 mm
Ring supply:
A4, black, 50 sheets
A4, black, 100 sheets
A4, white, 50 sheets
A4, white, 100 sheets
Cartridge capacity: 80 rings Note: Ring supply consumables must be purchased and installed to use the Ring Binder RB5020.
Tab stock: Supported
Stack capacity:
11 sets, 100 sheets per set—binding mode
100 sheets, or 200 duplex pages—punching mode
Power source: External, 220–240V, 50–60 Hz
Power consumption: 400 W or less
Dimensions (W x D x H): 870 x 730 x 1,010 mm
Weight: 140 kg or less
Notes:
Cannot be installed with Perfect Binder GB5010,Transit Pass Unit for Perfect Binder Type S1,Cover Interposer Tray for Perfect Binder Type S1
Ring opener Type A
Notes:
By choosing this option the Ring Binder RB5020 will be added to the configuration.
Cannot be installed with Perfect Binder GB5010,Transit Pass Unit for Perfect Binder Type S1,Cover Interposer Tray for Perfect Binder Type S1

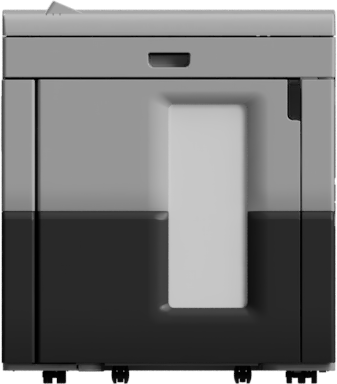

High Capacity Stacker SK5040
Allows to handle large volume of output and move it with a roll-away cart that is included as standard. Up to 2 stackers can be configured in one system. An additional roll-away cart is available.
Proof tray:
Stack capacity: 250 sheets
Paper size: A6–13" x 19.2"
Paper weight:40–470 g/m2 Note: 487–1,260 mm banner sheet supported when finisher is not attached. Actual supported paper weight is dependent on the mainframe.
Shift tray:
Stack capacity: 5,000 sheets—A4–13" x 19.2"; 2,500 sheets—B5
Paper size: 139.7 x 139.7 mm–331 x 488 mm (13" x 19.2")
Paper weight: 40–470 g/m2 Note: Actual supported paper weight is dependent on the mainframe.
Output jogger: Standard
Roll-away cart: Includes 1 cart. Additional cart is optional.
Door lock: Optional; includes a bracket for the lock
Dimensions (W x D x H): 900 x 730 x 1,010 mm
Weight: 131 kg or less: 135 kg or less with roll-away cart
Power source: 220–240 V, 50–60 Hz, 0.8 Amps
Power consumption: Less than 120 W
Notes:
By choosing this option the Buffer Pass Unit Type S9,Decurl Unit DU5060 will be added to the configuration.
Roll-Away Cart Type 5010
An additonal roll-away cart for the High-Capacity Stacker SK5040.
Weight: 15 kg
Notes:
By choosing this option the High Capacity Stacker SK5040 will be added to the configuration.

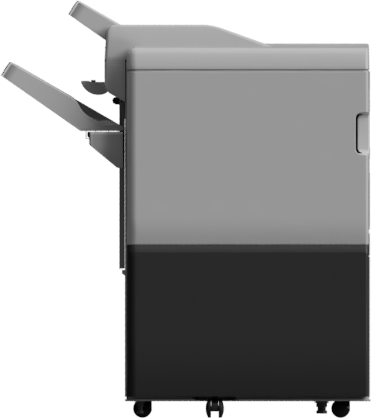

Finisher SR5050
Provides 100-sheet stapling and optional hole punching.
Capacity: 3,000 sheets
Paper size: A5–13” x 19.2”
Paper weight: 40–400 g/m2 Note: Supported paper weight is dependent on the mainframe.
Staple capacity: 100 sheets
Staple positions: Top, bottom, 2 staple, top slant
Staple position adjustment: Supported; two position staple only
Staple paper weight: 64–105 g/m2 Output jogger: Standard
Optional punch unit PU5020 available
Power source: External, 220–240 V
Power consumption: 150 W or less
Dimensions (W x D x H): 996 x 730 x 1,126 mm when all extendable trays are closed
Weight: 112 kg or less
Notes:
Cannot be installed with Booklet Finisher SR5060,Trimmer Unit TR5040,Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11

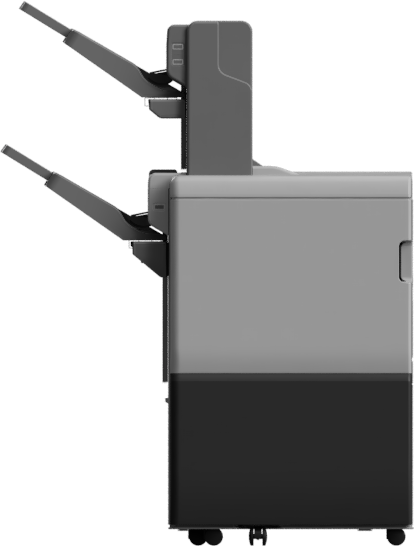

Finisher SR5110
Provides 100-sheet stapling and optional hole punching.
Paper size: Max. 330.2 x 487.7 mm (13" x 19.2"); min. 139.7 x 139.7 mm—without Z-fold
330.2 x 1,260 mm—with banner sheet output tray
Max. 304 x 457 mm; min. 139.7 x 139.7 mm—with Z-fold
Paper weight: 40–350 g/m2 (upper tray), 40–470 g/m2 (lower tray)—without Z-fold
64–105 g/m2 —with Z-fold Note: Supported paper weight is dependent on the mainframe.
Staple capacity: 100 sheets (A4); 50 sheets (A3)
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: 64–80 g/m2 (without Z-fold); 64–105 g/m2 (with Z-fold)
Optional punch unit PU5030 available
Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray)
Weight: 135 kg
Power source: 220–240 V ±10%, 50/60 Hz
Power consumption: 150 W
Notes:
Cannot be installed with Cover Interposer Tray CI5030,Finisher SR5050,Booklet Finisher SR5060,Trimmer Unit TR5040,Punch Unit PU5020 NA,Punch Unit PU5020 EU,Punch Unit PU5020 SC,Booklet Finisher SR5120,Trimmer Unit TR5050,TotalFlow Print Server R-62A

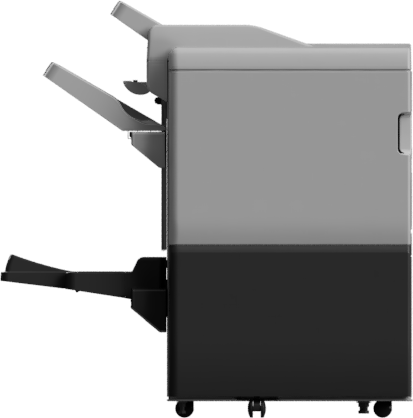

Booklet Finisher SR5060
Allows documents to be professionally finished as saddle-stitched booklets with minimal effort. Provides 100-sheet stapling and optional hole punching.
Capacity: 2,500 sheets
Paper size: A5–13" x 19.2"
Paper weight: 40–400 g/m2 Note: Supported paper weight is dependent on the mainframe.
Staple capacity: 100 sheets
Staple positions: Top, bottom, 2 staple, top slant (standard); centre, 2 positions (saddle stitch)
Staple position adjustment: Supported; two position staple only
Staple paper size: B5–A3 (standard); B5–13" x 19.2" (saddle stitch)
Staple paper weight: 64–105 g/m2 (standard); 64–90 g/m2 (saddle stitch)
Saddle stitch staple: 20 sheets (64–80 g/m2); 15 sheets (80–90 g/m2); 1 cover sheet up to 163 g/m2 per paper stack
Output jogger: Standard
Optional punch unit PU5020 available
Power source: External, 220–240 V
Power consumption: 150 W or less
Dimensions (W x D x H) : 996 x 730 x 1,126 mm with all extendable trays closed
Weight: 112 kg or less
Notes:
Cannot be installed with Finisher SR5050,Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11

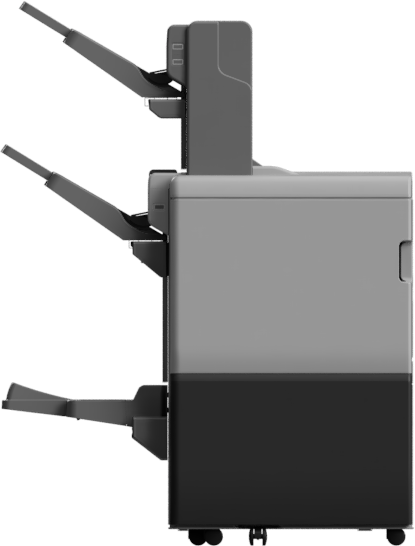

Booklet Finisher SR5120
Creates flat-fold, saddle-stitched booklets, and folded unstapled booklets with a professional appearance and no manual intervention. Comes with dual shift trays for ‘non-stop delivery.’ Punch option is available.
Capacity: 3,500 sheets (dual shift tray)
Paper size: Without Z-fold
Max. 330.2 x 487.7 mm (13" x 19.2"), min. 139.7 x 139.7 mm
330.2 x 1,260 mm—with banner sheet output tray With Z-fold
Max. 304 x 457 mm, min. 139.7 x 139.7 mm
Paper weight: Without Z-fold
40–350 g/m2 (upper tray), 40–470 g/m2 (lower tray) With Z-fold
64–105 g/m2 Note: Supported paper weight is dependent on the mainframe.
Staple capacity: 100 sheets (A4); 50 sheets (A3)
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: without Z-fold: 64–80 g/m2; with Z-fold: 64–105 g/m2
Saddle stitch staple: 30 sheets (120-page booklet) with 80 g/m2 paper
Optional punch unit PU5030 available
Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray)
Weight: 160 kg
Power consumption: 150 W
Notes:
Cannot be installed with Cover Interposer Tray CI5030,Finisher SR5050,Finisher SR5110,Booklet Finisher SR5060,Trimmer Unit TR5040,Punch Unit PU5020 NA,Punch Unit PU5020 EU,Punch Unit PU5020 SC,TotalFlow Print Server R-62A

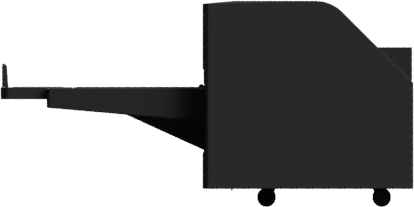

Trimmer Unit TR5040
Cuts the front edge of the book block after the book block is saddle stitched. Booklet Finisher SR5060 is required in order to attach this option.
Trimming type: One side edge
Trimming capacity: 1–20 sheets (2–40 pages after folding)
Paper size (before folding: A4–13" x 19.2", B5–B4
Custom size: 182–330 mm x 257–488 mm
Stack capacity: 1 sheet—60 sets; 2–5 sheets—60 sets; 6–0 sheets—35–40 sets; 11–20 sheets—20–25 sets Note: Stack capacity can vary depending on paper size.
Stacker full detection: Available
Limitless stacking: Available Note: This setting is not user configurable and must be configured by a Ricoh service engineer.
Power source: External, universal power supply, 100–240 V
Power consumption: 75 W—average; 250 W—maximum
Dimensions (W x D x H): 1,115 x 591 x 555 mm
Weight: 75 kg or less
Notes:
By choosing this option the Booklet Finisher SR5060 will be added to the configuration.
Cannot be installed with Finisher SR5050,Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11
Trimmer Unit TR5050
Cuts the front edge of the book block after the book block is saddle stitched. Booklet Finisher SR5120 is required in order to attach this option.
Stacker full detection: Supported
Limitless stack: Supported Note: This setting is not user configurable; it needs to be configured by a Ricoh service engineer.
Power source: External, universal power supply, 100–240 V, 50 Hz
Power consumption: 75 W—average; 250 W—maximum
Dimensions (W x D x H): 1,115 x 591 x 555 mm
Weight: 75 kg
Notes:
By choosing this option the Booklet Finisher SR5120 will be added to the configuration.
Cannot be installed with Cover Interposer Tray CI5030,Finisher SR5050,Booklet Finisher SR5060,Finisher SR5110,Trimmer Unit TR5040,Punch Unit PU5020 NA,Punch Unit PU5020 SC,Punch Unit PU5020 EU,TotalFlow Print Server R-62A
SR5000 Series Output Tray for Banner Sheet Type S6
Required for banner sheet output for selected Ricoh finishers and booklet finishers.
Capacity: 200 sheets (0.11mm/sheet)
Paper size: width 210–330.2 mm, length 420–700 mm
Paper weight: 52.3–300.0 g/m2
Notes:
One of the following must also be selected: Finisher SR5050,Booklet Finisher SR5060,Finisher SR5110,Booklet Finisher SR5120
One of the following must also be selected: Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9
Punch Unit PU5020 NA
Installed in a finisher of a printing device to enable automatic 2-hole or 3-hole punching of pages.
Number of punch: 2 or 3 holes interchangeable
Punch waste capacity: 10,000 sheets (both 2- and 3-hole)
Paper size: A6–A3 SEF; A5–A4 LEF (2 holes); A3, B4 SEF; A4, B5 LEF (3 holes)
Paper weight: 52–127.9 g/m2
Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,Punch Unit PU5020 SC,Punch Unit PU5020 EU,Cover Interposer Tray CI5030,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11
One of the following must also be selected: Finisher SR5050,Booklet Finisher SR5060
Punch Unit PU5020 EU
Installed in a finisher of a printing device to enable automatic 2-hole or 4-hole punching of pages.
Number of punch: 2 or 4 holes interchangeable
Punch replenishment: 25,000 sheets (2 holes); 15,000 sheets (4 holes)
Maximum paper thickness: 52–209 g/m2 (2 holes); 52–63 g/m2(4 holes)
Punch registration: Yes; resist roller and side registration sensor
Performance: Same as engine speed of the devices
Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,Punch Unit PU5020 SC,Punch Unit PU5020 NA,Cover Interposer Tray CI5030,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11
One of the following must also be selected: Finisher SR5050,Booklet Finisher SR5060
Punch Unit PU5020 SC
Installed in a finisher of a printing device to enable automatic 4-hole punching of pages.
Number of punch: 4 holes
Punch waste capacity: 15,000 sheets
Paper size: A6–A3 SEF, A5–A4 LEF (2 holes); A4, B4 SEF, A4, B5 LEF (4 holes)
Paper weight: 52–127.9 g/m2
Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,Punch Unit PU5020 NA,Punch Unit PU5020 EU,Cover Interposer Tray CI5030,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11
One of the following must also be selected: Finisher SR5050,Booklet Finisher SR5060
Punch Unit PU5030 NA
Installed in a finisher of a printing device to enable automatic 2-hole or 3-hole punching of pages.
Number of punch: 2 or 3 holes interchangeable
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m2
Performance: Same as engine speed
Notes:
Cannot be installed with Cover Interposer Tray CI5030,Finisher SR5050,Booklet Finisher SR5060,Punch Unit PU5020 NA,Punch Unit PU5020 EU,Punch Unit PU5020 SC,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,Trimmer Unit TR5040,TotalFlow Print Server R-62A
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 EU
Installed in a finisher of a printing device to enable automatic 2-hole or 4-hole punching of pages.
Number of punch: 2 or 4 holes interchangeable
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m2
Performance: Same as engine speed
Notes:
Cannot be installed with Cover Interposer Tray CI5030,Finisher SR5050,Booklet Finisher SR5060,Punch Unit PU5020 NA,Punch Unit PU5020 EU,Punch Unit PU5020 SC,Punch Unit PU5030 SC ,Punch Unit PU5030 NA,Trimmer Unit TR5040,TotalFlow Print Server R-62A
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 SC
Installed in a finisher of a printing device to enable automatic 4-hole punching of pages.
Number of punch: 4 holes
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m2
Performance: Same as engine speed
Notes:
Cannot be installed with Cover Interposer Tray CI5030,Finisher SR5050,Booklet Finisher SR5060,Punch Unit PU5020 NA,Punch Unit PU5020 EU,Punch Unit PU5020 SC,Punch Unit PU5030 EU ,Punch Unit PU5030 NA,Trimmer Unit TR5040,TotalFlow Print Server R-62A
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
TotalFlow Print Server R-62A
An optional printer controller available for Ricoh digital production printing devices that provides seamless integration with Heidelberg's Prinect and Kodak's Prinergy prepress software for offset printing.
It enables the same user interface to be used for offset and digital workflows and is targeted at commercial printers with traditional offset printing devices who want to establish a hybrid offset and digital print workflow system.
Notes:
Cannot be installed with Colour Controller E-46A,Colour Controller E-86A,Finisher SR5110,Booklet Finisher SR5120,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,EFI 5th Station Hardware Upgrade Kit Type S9
One of the following must also be selected: Finisher SR5050,Booklet Finisher SR5060,High Capacity Stacker SK5040
Colour Controller E-46A
An external colour controller that is based on the EFI Fiery FS350 platform and is targeted at mid- to high-volume production environments.
Notes:
Cannot be installed with Colour Controller E-86A,TotalFlow Print Server R-62A
One of the following must also be selected: Finisher SR5050,Booklet Finisher SR5060,Finisher SR5110,Booklet Finisher SR5120,High Capacity Stacker SK5040
Colour Controller E-86A
An external colour controller that is based on the EFI Fiery FS350 platform and targeted at mid- to high-volume production environments.
Notes:
Cannot be installed with Colour Controller E-46A,TotalFlow Print Server R-62A
One of the following must also be selected: Finisher SR5050,Booklet Finisher SR5060,Finisher SR5110,Booklet Finisher SR5120,High Capacity Stacker SK5040
EFI 5th Station Hardware Upgrade Kit Type S9
Must install to enable 5th station printing on the Colour Controller E-46A or Colour Controller E-86A.
Notes:
Cannot be installed with TotalFlow Print Server R-62A
One of the following must also be selected: Colour Controller E-46A,Colour Controller E-86A
PostScript 3 Unit Type S9
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.
Optional Counter Interface Unit Type M12
Used with external third party counting devices for accounting and charge-back purposes.
Standard inclusions
17" operation panel
Up to 13" x 19.2" paper size
Up to 360 g/m2 paper
700 mm banner paper duplex
640 GB HDD
5th toner station for additional colours
Current configuration
Pro C7200X Graphic Arts Edition
1320 mm x
910 mm x
1218 mm (W x D x H)
580 kg
Selected Options:
{"configuratorid":"b6a0ebee-45c3-45b2-9161-92eab48cadc1","productid":"d660a203-8c11-4062-8d18-be84374ef47d","edpcode":"409175","productdisplayname":"Pro C7200X Graphic Arts Edition","width":1320.0,"height":1218.0,"depth":910.0,"weight":580.0,"mainframe_imageurl":"-/media/all-regional/images/product-images/commercial-and-industrial-printing-solutions/cut-sheet/pro-c7200/configurator/mainframe-with-sop.png?dmc=0&hash=6DFE121F3AC210198E13829DF699747F","configurator_hash":"e730e4e6-c7aa-47d9-a3a7-33bc8ce46624","options":{"409117":{"edpcode":"409117","displayname":"LCT RT5110","extras":[],"width":865.0,"height":1000.0,"depth":730.0,"weight":185.0,"show_image":true,"hide_until_required":false},"409083":{"edpcode":"409083","displayname":"Vacuum-Feed LCT RT5120","extras":[1,2,3],"width":1054.0,"height":1000.0,"depth":730.0,"weight":220.0,"show_image":true,"hide_until_required":false},"404652":{"edpcode":"404652","displayname":"Bridge Unit BU5010","extras":[1,2],"width":330.0,"height":1000.0,"depth":730.0,"weight":40.0,"show_image":true,"hide_until_required":true},"409095":{"edpcode":"409095","displayname":"Vacuum-Feed Banner Sheet Tray Type S9","extras":[],"width":236.0,"height":0.0,"depth":0.0,"weight":7.0,"show_image":true,"hide_until_required":false},"409090":{"edpcode":"409090","displayname":"Multi-Bypass Tray BY5020","extras":[],"width":690.0,"height":210.0,"depth":561.0,"weight":20.0,"show_image":true,"hide_until_required":false},"409096":{"edpcode":"409096","displayname":"Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409099":{"edpcode":"409099","displayname":"Multi-Bypass Banner Sheet Tray Type S9","extras":[],"width":1090.0,"height":210.0,"depth":561.0,"weight":95.0,"show_image":false,"hide_until_required":false},"404195":{"edpcode":"404195","displayname":"A3/11\"x17\" Tray Unit TK5010","extras":[],"width":495.0,"height":175.0,"depth":530.0,"weight":10.0,"show_image":false,"hide_until_required":false},"412203":{"edpcode":"412203","displayname":"Tab Sheet Holder Type 3260","extras":[],"width":66.0,"height":12.0,"depth":280.0,"weight":5.0,"show_image":false,"hide_until_required":false},"409188":{"edpcode":"409188","displayname":"Decurl Unit DU5060","extras":[],"width":71.0,"height":181.0,"depth":509.0,"weight":5.0,"show_image":false,"hide_until_required":false},"409187":{"edpcode":"409187","displayname":"Buffer Pass Unit Type S9","extras":[],"width":330.0,"height":1010.0,"depth":730.0,"weight":90.0,"show_image":true,"hide_until_required":false},"404543":{"edpcode":"404543","displayname":"Perfect Binder GB5010","extras":[],"width":1090.0,"height":1387.0,"depth":791.0,"weight":350.0,"show_image":true,"hide_until_required":false},"404544":{"edpcode":"404544","displayname":"Transit Pass Unit for Perfect Binder Type S1","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":true},"404545":{"edpcode":"404545","displayname":"Cover Interposer Tray for Perfect Binder Type S1","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":true},"404539":{"edpcode":"404539","displayname":"Cover Interposer Tray CI5030","extras":[],"width":540.0,"height":1290.0,"depth":730.0,"weight":45.0,"show_image":true,"hide_until_required":false},"409258":{"edpcode":"409258","displayname":"Cover Interposer Tray CI5040","extras":[],"width":330.0,"height":1350.0,"depth":730.0,"weight":60.0,"show_image":true,"hide_until_required":false},"409259":{"edpcode":"409259","displayname":"Cover Interposer Tray Double-Feed Detection Kit Type S11","extras":[],"width":126.0,"height":56.0,"depth":317.0,"weight":4.0,"show_image":false,"hide_until_required":false},"404541":{"edpcode":"404541","displayname":"Multi-Folding Unit FD5020","extras":[],"width":470.0,"height":1000.0,"depth":730.0,"weight":92.0,"show_image":true,"hide_until_required":false},"404547":{"edpcode":"404547","displayname":"Ring Binder RB5020","extras":[],"width":870.0,"height":1010.0,"depth":730.0,"weight":140.0,"show_image":true,"hide_until_required":false},"404114":{"edpcode":"404114","displayname":"Ring opener Type A","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409094":{"edpcode":"409094","displayname":"High Capacity Stacker SK5040","extras":[1,2],"width":900.0,"height":1010.0,"depth":730.0,"weight":131.0,"show_image":true,"hide_until_required":false},"404218":{"edpcode":"404218","displayname":"Roll-Away Cart Type 5010","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"404549":{"edpcode":"404549","displayname":"Finisher SR5050","extras":[],"width":996.0,"height":1126.0,"depth":730.0,"weight":112.0,"show_image":true,"hide_until_required":false},"409251":{"edpcode":"409251","displayname":"Finisher SR5110","extras":[],"width":1113.0,"height":1490.0,"depth":730.0,"weight":135.0,"show_image":true,"hide_until_required":false},"404551":{"edpcode":"404551","displayname":"Booklet Finisher SR5060","extras":[],"width":996.0,"height":1126.0,"depth":730.0,"weight":112.0,"show_image":true,"hide_until_required":false},"409252":{"edpcode":"409252","displayname":"Booklet Finisher SR5120","extras":[],"width":1113.0,"height":1490.0,"depth":730.0,"weight":160.0,"show_image":true,"hide_until_required":false},"404401":{"edpcode":"404401","displayname":"Trimmer Unit TR5040","extras":[],"width":1115.0,"height":555.0,"depth":591.0,"weight":75.0,"show_image":true,"hide_until_required":false},"409255":{"edpcode":"409255","displayname":"Trimmer Unit TR5050","extras":[],"width":1115.0,"height":555.0,"depth":591.0,"weight":75.0,"show_image":true,"hide_until_required":false},"404877":{"edpcode":"404877","displayname":"SR5000 Series Output Tray for Banner Sheet Type S6","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"404177":{"edpcode":"404177","displayname":"Punch Unit PU5020 NA","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"404178":{"edpcode":"404178","displayname":"Punch Unit PU5020 EU","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"404179":{"edpcode":"404179","displayname":"Punch Unit PU5020 SC","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409268":{"edpcode":"409268","displayname":"Punch Unit PU5030 NA","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409269":{"edpcode":"409269","displayname":"Punch Unit PU5030 EU ","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409270":{"edpcode":"409270","displayname":"Punch Unit PU5030 SC ","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409110":{"edpcode":"409110","displayname":"TotalFlow Print Server R-62A","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409349":{"edpcode":"409349","displayname":"Colour Controller E-46A","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409351":{"edpcode":"409351","displayname":"Colour Controller E-86A","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409192":{"edpcode":"409192","displayname":"EFI 5th Station Hardware Upgrade Kit Type S9","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409122":{"edpcode":"409122","displayname":"PostScript 3 Unit Type S9","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417111":{"edpcode":"417111","displayname":"Optional Counter Interface Unit Type M12","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false}},"rules":[{"condition":{"condition_name":"TrueCondition","trigger_options":["409117"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409083","409096","409095"],"should_validate_after_excute":false,"excludes":["409083","409096","409095"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409083"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409117"],"should_validate_after_excute":false,"excludes":["409117"]}]},{"condition":{"condition_name":"QuantityCondition","trigger_options":["409083"],"compare_quantity":1,"comparer":"GreaterThan"},"actions":[{"action_name":"BridgeOptionAction","affect_to_options":["404652"],"should_validate_after_excute":false,"bridge_option":"404652","base_option":"409083"}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409095"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409083"],"should_validate_after_excute":false,"requires":["409083"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409117"],"should_validate_after_excute":false,"excludes":["409117"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409096"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409090","409083"],"should_validate_after_excute":false,"requires":["409090","409083"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409117"],"should_validate_after_excute":false,"excludes":["409117"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404543"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["404544","404545"],"should_validate_after_excute":false,"requires":["404544","404545"]},{"action_name":"ExcludeOptionAction","affect_to_options":["404547","404114"],"should_validate_after_excute":false,"excludes":["404547","404114"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404544"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["404543"],"should_validate_after_excute":false,"requires":["404543"]},{"action_name":"ExcludeOptionAction","affect_to_options":["404547","404114"],"should_validate_after_excute":false,"excludes":["404547","404114"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404545"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["404543"],"should_validate_after_excute":false,"requires":["404543"]},{"action_name":"ExcludeOptionAction","affect_to_options":["404547","404114"],"should_validate_after_excute":false,"excludes":["404547","404114"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404539"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409252","404177","404179","404178","409255","409258","409259","409268","409269","409270"],"should_validate_after_excute":false,"excludes":["409251","409252","404177","404179","404178","409255","409258","409259","409268","409269","409270"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409258"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["404539","404549","404551","404401","409110","404177","404179","404178"],"should_validate_after_excute":false,"excludes":["404539","404549","404551","404401","409110","404177","404179","404178"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409259"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409258"],"should_validate_after_excute":false,"requires":["409258"]},{"action_name":"ExcludeOptionAction","affect_to_options":["404539","404549","404551","404401","404177","404179","404178","409110"],"should_validate_after_excute":false,"excludes":["404539","404549","404551","404401","404177","404179","404178","409110"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404547"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["404543","404544","404545"],"should_validate_after_excute":false,"excludes":["404543","404544","404545"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404114"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["404547"],"should_validate_after_excute":false,"requires":["404547"]},{"action_name":"ExcludeOptionAction","affect_to_options":["404543","404544","404545"],"should_validate_after_excute":false,"excludes":["404543","404544","404545"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409094"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409187","409188"],"should_validate_after_excute":false,"requires":["409187","409188"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404218"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409094"],"should_validate_after_excute":false,"requires":["409094"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404549"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["404551","404401","409251","409252","409268","409269","409270","409255","409258","409259"],"should_validate_after_excute":false,"excludes":["404551","404401","409251","409252","409268","409269","409270","409255","409258","409259"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409251"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["404539","404549","404551","404401","404177","404178","404179","409252","409255","409110"],"should_validate_after_excute":false,"excludes":["404539","404549","404551","404401","404177","404178","404179","409252","409255","409110"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404551"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["404549","409251","409252","409268","409269","409270","409255","409258","409259"],"should_validate_after_excute":false,"excludes":["404549","409251","409252","409268","409269","409270","409255","409258","409259"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409252"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["404539","404549","409251","404551","404401","404177","404178","404179","409110"],"should_validate_after_excute":false,"excludes":["404539","404549","409251","404551","404401","404177","404178","404179","409110"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404401"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["404551"],"should_validate_after_excute":false,"requires":["404551"]},{"action_name":"ExcludeOptionAction","affect_to_options":["404549","409251","409252","409268","409269","409270","409255","409258","409259"],"should_validate_after_excute":false,"excludes":["404549","409251","409252","409268","409269","409270","409255","409258","409259"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409255"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409252"],"should_validate_after_excute":false,"requires":["409252"]},{"action_name":"ExcludeOptionAction","affect_to_options":["404539","404549","404551","409251","404401","404177","404179","404178","409110"],"should_validate_after_excute":false,"excludes":["404539","404549","404551","409251","404401","404177","404179","404178","409110"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404877"]},"actions":[{"action_name":"RequireOneAction","affect_to_options":["404549","404551","409251","409252"],"should_validate_after_excute":true,"require_ones":["404549","404551","409251","409252"]},{"action_name":"RequireOneAction","affect_to_options":["409095","409099"],"should_validate_after_excute":true,"require_ones":["409095","409099"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404177"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409252","409268","409269","409270","404179","404178","404539","409255","409258","409259"],"should_validate_after_excute":false,"excludes":["409251","409252","409268","409269","409270","404179","404178","404539","409255","409258","409259"]},{"action_name":"RequireOneAction","affect_to_options":["404549","404551"],"should_validate_after_excute":true,"require_ones":["404549","404551"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404178"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409252","409268","409269","409270","404179","404177","404539","409255","409258","409259"],"should_validate_after_excute":false,"excludes":["409251","409252","409268","409269","409270","404179","404177","404539","409255","409258","409259"]},{"action_name":"RequireOneAction","affect_to_options":["404549","404551"],"should_validate_after_excute":true,"require_ones":["404549","404551"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404179"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409252","409268","409269","409270","404177","404178","404539","409255","409258","409259"],"should_validate_after_excute":false,"excludes":["409251","409252","409268","409269","409270","404177","404178","404539","409255","409258","409259"]},{"action_name":"RequireOneAction","affect_to_options":["404549","404551"],"should_validate_after_excute":true,"require_ones":["404549","404551"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409268"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["404539","404549","404551","404177","404178","404179","409269","409270","404401","409110"],"should_validate_after_excute":false,"excludes":["404539","404549","404551","404177","404178","404179","409269","409270","404401","409110"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409269"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["404539","404549","404551","404177","404178","404179","409270","409268","404401","409110"],"should_validate_after_excute":false,"excludes":["404539","404549","404551","404177","404178","404179","409270","409268","404401","409110"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409270"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["404539","404549","404551","404177","404178","404179","409269","409268","404401","409110"],"should_validate_after_excute":false,"excludes":["404539","404549","404551","404177","404178","404179","409269","409268","404401","409110"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409110"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409349","409351","409251","409252","409255","409258","409259","409268","409269","409270","409192"],"should_validate_after_excute":false,"excludes":["409349","409351","409251","409252","409255","409258","409259","409268","409269","409270","409192"]},{"action_name":"RequireOneAction","affect_to_options":["404549","404551","409094"],"should_validate_after_excute":true,"require_ones":["404549","404551","409094"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409349"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409351","409110"],"should_validate_after_excute":false,"excludes":["409351","409110"]},{"action_name":"RequireOneAction","affect_to_options":["404549","404551","409251","409252","409094"],"should_validate_after_excute":true,"require_ones":["404549","404551","409251","409252","409094"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409351"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409349","409110"],"should_validate_after_excute":false,"excludes":["409349","409110"]},{"action_name":"RequireOneAction","affect_to_options":["404549","404551","409251","409252","409094"],"should_validate_after_excute":true,"require_ones":["404549","404551","409251","409252","409094"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409192"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409110"],"should_validate_after_excute":false,"excludes":["409110"]},{"action_name":"RequireOneAction","affect_to_options":["409349","409351"],"should_validate_after_excute":true,"require_ones":["409349","409351"]}]},{"condition":{"condition_name":"LogicalCondition","trigger_options":["409083","409099"],"logical_operator":"And","sub_conditions":[{"condition_name":"LogicalCondition","trigger_options":["409083","409099"],"logical_operator":"And","sub_conditions":[{"condition_name":"QuantityCondition","trigger_options":["409083"],"compare_quantity":1,"comparer":"Equal"},{"condition_name":"QuantityCondition","trigger_options":["409099"],"compare_quantity":1,"comparer":"Equal"}]}]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409095"],"should_validate_after_excute":false,"excludes":["409095"]}]},{"condition":{"condition_name":"LogicalCondition","trigger_options":["409083","409095"],"logical_operator":"And","sub_conditions":[{"condition_name":"LogicalCondition","trigger_options":["409083","409095"],"logical_operator":"And","sub_conditions":[{"condition_name":"QuantityCondition","trigger_options":["409083"],"compare_quantity":1,"comparer":"Equal"},{"condition_name":"QuantityCondition","trigger_options":["409095"],"compare_quantity":1,"comparer":"Equal"}]}]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409099"],"should_validate_after_excute":false,"excludes":["409099"]}]},{"condition":{"condition_name":"LogicalCondition","trigger_options":["404549","409251","404551","409252","409095","409099"],"logical_operator":"And","sub_conditions":[{"condition_name":"LogicalCondition","trigger_options":["404549","409251","404551","409252"],"logical_operator":"And","sub_conditions":[{"condition_name":"QuantityCondition","trigger_options":["404549","409251","404551","409252"],"compare_quantity":1,"comparer":"GreaterThanOrEqual"}]},{"condition_name":"LogicalCondition","trigger_options":["409095","409099"],"logical_operator":"Or","sub_conditions":[{"condition_name":"QuantityCondition","trigger_options":["409095"],"compare_quantity":1,"comparer":"GreaterThanOrEqual"},{"condition_name":"QuantityCondition","trigger_options":["409099"],"compare_quantity":1,"comparer":"GreaterThanOrEqual"}]}]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["404877"],"should_validate_after_excute":false,"requires":["404877"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409090"]},"actions":[{"action_name":"RequireOneExtendAction","affect_to_options":["409117","409083","409096"],"should_validate_after_excute":true,"must_select_one_options":[],"or_must_select_options":[["409117"],["409083","409096"]]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409099"]},"actions":[{"action_name":"RequireOneExtendAction","affect_to_options":["409090","409117","409090","409083","409096"],"should_validate_after_excute":true,"must_select_one_options":[],"or_must_select_options":[["409090","409117"],["409090","409083","409096"]]}]},{"condition":{"condition_name":"QuantityCondition","trigger_options":["404543"],"compare_quantity":1,"comparer":"Equal"},"actions":[{"action_name":"RequireOneAction","affect_to_options":["409094","404549","404551"],"should_validate_after_excute":true,"require_ones":["409094","404549","404551"]}]},{"condition":{"condition_name":"QuantityCondition","trigger_options":["404539"],"compare_quantity":1,"comparer":"Equal"},"actions":[{"action_name":"RequireOneAction","affect_to_options":["409094","404549","404551"],"should_validate_after_excute":true,"require_ones":["409094","404549","404551"]}]},{"condition":{"condition_name":"QuantityCondition","trigger_options":["404541"],"compare_quantity":1,"comparer":"Equal"},"actions":[{"action_name":"RequireOneAction","affect_to_options":["409094","404549","404551"],"should_validate_after_excute":true,"require_ones":["409094","404549","404551"]}]},{"condition":{"condition_name":"QuantityCondition","trigger_options":["404547"],"compare_quantity":1,"comparer":"Equal"},"actions":[{"action_name":"RequireOneAction","affect_to_options":["409094","404549","404551"],"should_validate_after_excute":true,"require_ones":["409094","404549","404551"]}]},{"condition":{"condition_name":"QuantityCondition","trigger_options":["409094"],"compare_quantity":1,"comparer":"GreaterThan"},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["404543","404541","404547"],"should_validate_after_excute":false,"excludes":["404543","404541","404547"]}]}],"affect_group":[["409117","409083","409096","409095","404652","409099","404549","409251","404551","409252","404877","409090","409188","409187","404543","404544","404545","404547","409094","404539","404177","404179","404178","409255","409258","409259","404401","409110","404541","404114","404218","409268","409269","409270","409349","409351","409192"],["404195"],["412203"],["409122"],["417111"]],"preselect_configs":{},"min_config":{"must_select_at_least_one_option":true,"requires":[],"requireones":[]}}
×
Invalid Configuration
The configuration selected is invalid. Please review the following and then try again.
Our site uses cookies so that we can remember you and understand how you use our site. This is to offer you a better browsing experience, analyse site traffic and personalise the content you see. By using this site, you consent to our use of cookies. For further information, please see our Privacy Policy.
