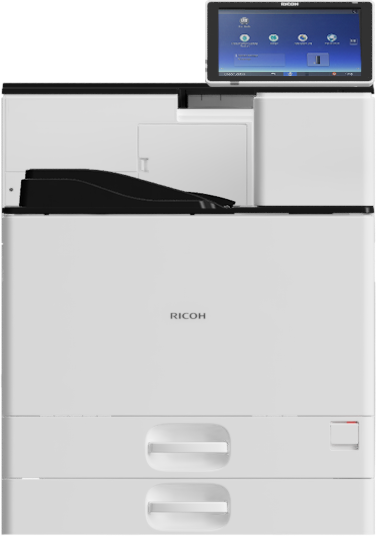

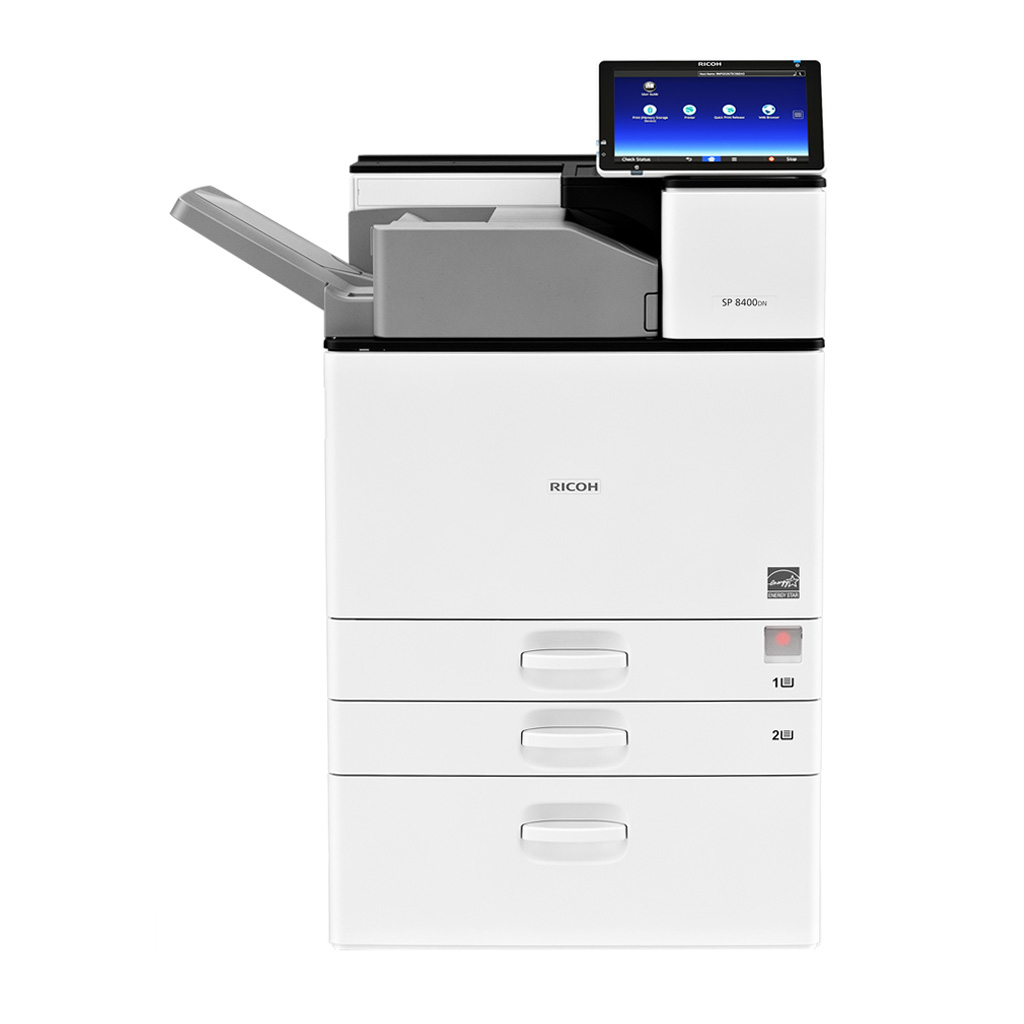

SP 8400DN

    SP 8400DN

    The SP 8400DN is a high quality A3 black and white printer with a print speed of 60 ppm.

    This device provides new and enhanced features to increase productivity, while the inclusion of a Smart Operation Panel greatly improves the usability.

    The optional hybrid finisher provides either staple or staple-free finishing, while the standard finisher delivers better stacking and stapling quality, safety, and paper jam removal.

    The SP 8400DN also supports an optional internal multi-folding unit, which offers four types of folding options that help to reduce workload and cost.

    With various eco-friendly features, the SP 8400DN provides efficient power consumption and one of the lowest Typical Electricity Consumption (TEC) among devices in the same category.

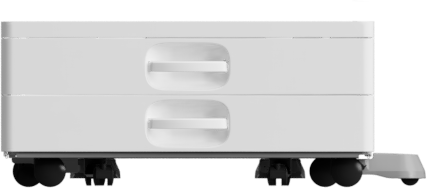

    Paper Feed Unit PB3240

    Optional 2-tray paper feed unit that increases the paper capacity of the device.

    Capacity: 1,100 (2 x 550) sheets
    Paper size: B6–SRA3
    Envelopes: COM10, Monarch, C6–C5
    Custom paper size: 90–320 x 148–457.2 mm
    Paper weight: 60–300 g/m2
    Dimensions (W x D x H): 587 x 685 x 247 mm
    Weight: 22 kg

    Notes:
    Cannot be installed with LCT PB3260
    Paper Feed Unit PB3240

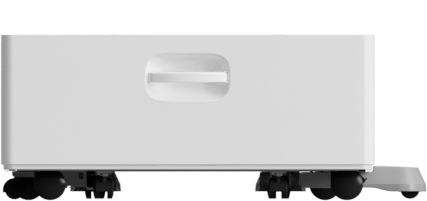

    LCT PB3260

    Optional tandem Large Capacity Tray significantly increasing the capacity of the device.

    Capacity: 2,000 (2 x 1,000) sheets
    Paper size: A4
    Paper weight: 60–300 g/m2
    Dimensions (W x D x H): 587 x 685 x 247 mm
    Weight: 22 kg
    Power consumption: 15 W or less

    Notes:
    Cannot be installed with Paper Feed Unit PB3240
    LCT PB3260
    LCT RT3030

    Optional side Large Capacity Tray significantly increasing the capacity of the device.

    Capacity: 1,500 sheets
    Paper size: A4, B5
    Paper weight: 52–300 g/m2
    Dimensions (W x D x H): 340 x 544.5 x 290 mm
    Weight: 9.8 kg
    Power consumption:13 W or less

    Notes:
    One of the following must also be selected: Paper Feed Unit PB3240,LCT PB3260
    LCT RT3030

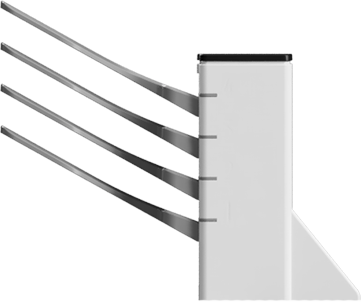

    Mailbox CS3010

    Provides individual bins for separate users or jobs. Can be configured with a mainframe or finisher.

    Number of bins: 4
    Capacity: 500 sheets (125 sheets per bin)
    Paper size: B6–A3
    Envelopes: Com10, Monarch, C5–C6
    Custom paper size: 90–297 x 148–431.8 mm
    Paper weight: 52–169 g/m2
    Dimensions (W x D x H): 555 x 544 x 506 mm
    Weight: 13 kg

    4-bin Mailbox CS3010

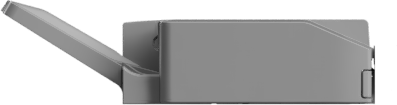

    Internal Multi-Fold Unit FD3000

    Offers four types of single-sheet folding, including Z-fold, half-fold, outer tri-fold, and inner tri-fold within the original footprint as it is installed in the exit tray.

    Fold types: Z-fold, half-fold, inner tri-fold, outer tri-fold

    Paper size:
    Multi-folding unit only
    Z-fold, half-fold—A4–A3, B4
    Outer tri-fold, inner tri-fold—A4–A3
    When connected to finishers SR3210 and SR3230
    Z-fold—A4–A3, B4
    Half-fold—A4–A3, B4, 12" x 18", 12.6" x 17.7" (SRA3)
    Outer tri-fold, inner tri-fold—A4–A3

    Paper weight: 52–300 g/m2
    Dimensions: 612 x 555 x 184 mm
    Weight: 15 kg

    Notes:
    Cannot be installed with Bridge Unit BU3070
    Internal Multi-Fold Unit FD3000

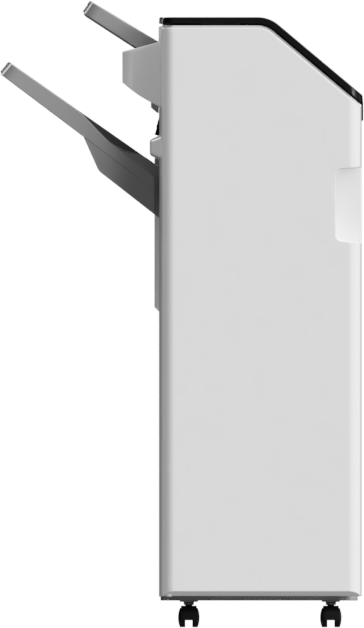

    Hybrid Finisher SR3210

    Offers both staple-free binding up to 5 sheets (10 pages) and conventional stapling to fasten together sheets with staples. Staple-free technology reduces need to restock staples, increases safety, and makes paper recycling easier.

    Capacity: 1,000 sheets
    Paper size: B6–SRA3, custom size 90 x 139.7 – 320 x 600 mm
    Paper weight: 52–169 g/m2 (proof tray); 52–300 g/m(shift tray)
    Staple capacity: 2–50 sheets (A4 or smaller); 2–30 sheets (B4 or larger)
    Staple position: Top, bottom, 2 staples
    Stapleless binding: 2–5 sheets, single or double row, top left
    Optional punch unit PU3050 available
    Dimensions (W x D x H): 563 x 620 x 960 mm
    Weight: 27 kg or less
    Power consumption: 35.4 W or less

    Notes:
    Cannot be installed with Finisher SR3230,Output Jogger Unit Type M25,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
    One of the following must also be selected: Bridge Unit BU3070 and Paper Feed Unit PB3240,Bridge Unit BU3070 and LCT PB3260,Internal Multi-Fold Unit FD3000 and Paper Feed Unit PB3240,Internal Multi-Fold Unit FD3000 and LCT PB3260
    Hybrid Finisher SR3210

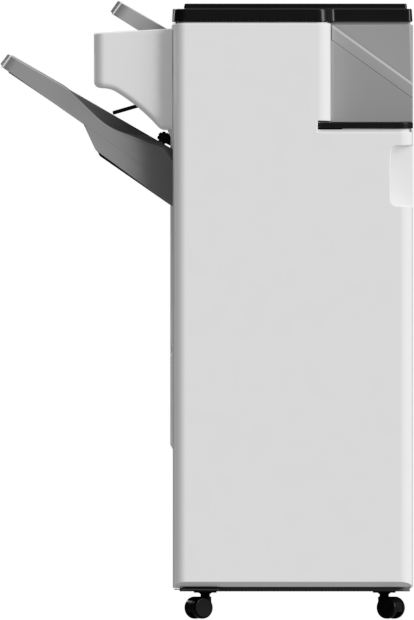

    Finisher SR3230

    Provides multi-position stapling and optional hole punching.

    Capacity: 3,000 sheets
    Paper size: B6–SRA3, custom size 90 x 139.7–330.2 x 487.7 mm
    Paper weight: 52–220 g/m2 (proof tray); 52–300 g/m2 (shift tray)
    Staple capacity: 50 sheets
    Staple positions: Top, bottom, 2 staples, top slant
    Staple paper weight: 52–105 g/m2
    Optional punch unit PU3060 available
    Dimensions (W x D x H): 657 x 613 x 960 mm
    Weight: 33.5 kg or less; 38 kg or less—with punch unit
    Power consumption: 67 W or less

    Notes:
    Cannot be installed with Hybrid Finisher SR3210,Punch Unit PU3050 EU,Punch Unit PU3050 NA,Punch Unit PU3050 SC
    One of the following must also be selected: Bridge Unit BU3070 and Paper Feed Unit PB3240,Bridge Unit BU3070 and LCT PB3260,Internal Multi-Fold Unit FD3000 and Paper Feed Unit PB3240,Internal Multi-Fold Unit FD3000 and LCT PB3260
    Finisher SR3230
    Bridge Unit BU3070
    Required when a mainframe is configured with an external finisher. Transports pages from the standard exit area into a finisher for inline stapling or hole punching.
    Notes:
    One of the following must also be selected: Hybrid Finisher SR3210,Finisher SR3230
    Cannot be installed with Internal Multi-Fold Unit FD3000
    Bridge Unit BU3070
    Output Jogger Unit Type M25

    A hardware component for finishers to jog paper output into a tidy position on the output tray, making it easy to collect, sort, and stack large print jobs.

    Paper size: B5–SRA3
    Shift capacity: 20 sheets
    Paper weight: 52–300 g/m2
    Dimensions (W x D x H): 143 x 539 x 218 mm
    Weight: 2 kg or less
    Power consumption: 15 W or less

    Notes:
    By choosing this option the Finisher SR3230 will be added to the configuration.
    Cannot be installed with Hybrid Finisher SR3210,Punch Unit PU3050 EU,Punch Unit PU3050 NA,Punch Unit PU3050 SC
    Punch Unit PU3050 EU
    Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
    Notes:
    Cannot be installed with Punch Unit PU3050 NA,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC,Finisher SR3230,Output Jogger Unit Type M25
    One of the following must also be selected: Hybrid Finisher SR3210
    Punch Unit PU3050 NA

    Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.

    Notes:
    Cannot be installed with Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC,Finisher SR3230,Output Jogger Unit Type M25
    One of the following must also be selected: Hybrid Finisher SR3210
    Punch Unit PU3050 SC
    Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.
    Notes:
    Cannot be installed with Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC,Finisher SR3230,Output Jogger Unit Type M25
    One of the following must also be selected: Hybrid Finisher SR3210
    Punch Unit PU3060 EU
    Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
    Notes:
    Cannot be installed with Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 SC,Hybrid Finisher SR3210
    One of the following must also be selected: Finisher SR3230
    Punch Unit PU3060 NA
    Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
    Notes:
    Cannot be installed with Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 EU,Punch Unit PU3060 SC,Hybrid Finisher SR3210
    One of the following must also be selected: Finisher SR3230
    Punch Unit PU3060 SC
    Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.
    Notes:
    Cannot be installed with Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Hybrid Finisher SR3210
    One of the following must also be selected: Finisher SR3230
    PostScript 3 Unit Type P13
    Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.
    XPS Direct Print Option Type P13
    Allows users to print XPS format directly from the printer, without using an XPS-based driver.
    Hard Disk Drive Option Type P13
    The 320 GB Hard Disk Drive (HDD) is required for Locked/Hold/Stored Print. Data Overwrite and Encryption are available when the HDD is installed.
    IPDS Unit Type P13
    Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
    Extended USB Board Type M19
    Enables printing from USB Type B port.
    Notes:
    Cannot be installed with IEEE 802.11 Interface Unit Type M24,IEEE 1284 Interface Board Type M19,USB Device Server Option Type M19
    USB Device Server Option Type M19
    An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option.
    Notes:
    Cannot be installed with IEEE 802.11 Interface Unit Type M24,IEEE 1284 Interface Board Type M19,Extended USB Board Type M19
    External NFC Card Reader Bracket Type P11
    A table shaped option to place a card reader.
    Notes:
    Cannot be installed with NFC Card Reader Type P11
    IEEE 1284 Interface Board Type M19
    Allows users of older PC technology to connect to the latest printers and MFPs and access advanced printing features.
    Notes:
    Cannot be installed with IEEE 802.11 Interface Unit Type M24,Extended USB Board Type M19,USB Device Server Option Type M19
    IEEE 802.11 Interface Unit Type M24
    Enables WiFi connectivity and wireless printing.
    Notes:
    Cannot be installed with IEEE 1284 Interface Board Type M19,Extended USB Board Type M19,USB Device Server Option Type M19
    NFC Card Reader Type P11
    Ricoh card reader that supports authentication via Near Field Communication (NFC) technology. It can be used with Ricoh devices that are equipped with the 10.1" Smart Operation Panel that have standard authentication embedded.
    Notes:
    Cannot be installed with External NFC Card Reader Bracket Type P11
    Attention Light AL3000

    Visually alerts operators about system status changes to prompt attention. Can be configured with a mainframe or finisher.

    Dimensions (W x D x H) : 100 × 100 × 606 mm

    Attention Light AL3000

    Standard inclusions

    • 10.1" Smart Operation Panel
    • 2 x 550-sheet paper input trays
    • 100-sheet bypass tray
    • 2 GB RAM
    • 1.46 GHz CPU
    • PostScript3 emulation

    Current configuration

    SP 8400DN
    587 mm x653 mm x720 mm (W x D x H)
    57 kg
    Selected Options:
      SP 8400DN
